Operating Temperature (-40 to 75°C)
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)
Factory AutomationMoxa Remote Connect (MRC) is an easy-to-use, secure, and versatile networking solution designed to seamlessly bridge field devices, engineers, and application servers together over the Internet for industrial applications. The solution combines MRC Server, MRC Gateway, and MRC Client. The MRC Server is a connection management platform that determines how the MRC Gateways and MRC Clients are related. The MRC Gateway is a secure gateway that connects Ethernet-ready devices to MRC server portals. The MRC Client is a software tool connecting an engineer’s laptop to the MRC server portal. The MRC Server administrator manages these connections through a secure HTTPS web console.
You can also find the MRC-1002-LTE-EU-T, MRC-1002-LTE-JP-T, and MRC-1002-LTE-JP models in the Moxa Remote Connect Suite.
Supported Devices: OnCell Products, MRC Products
You can explore our range of

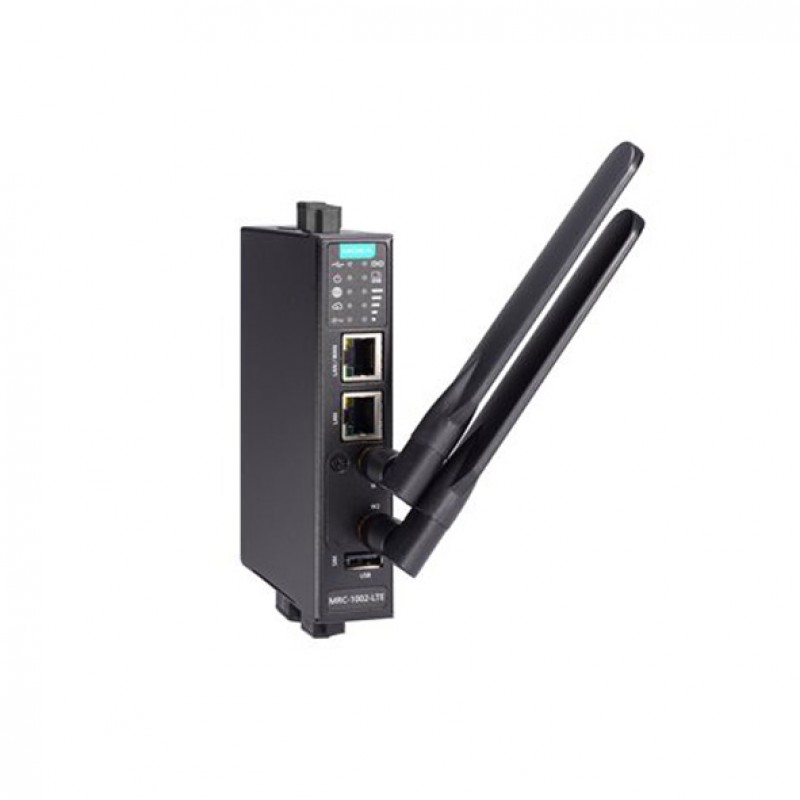

products and enquire about the MOXA MRC-1002-LTE-US-T Remote Connection Management Platform for your industrial automation needs. Our
sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi
Arabia, Oman, and the Middle East.
| 3g modem : Interface | |
| SIM card slot | No |
| Ethernet Ports | Yes : 2 x 10/100BaseT(X) Ports (RJ45 connector) |
| USB | Yes : 1 x USB 2.0 Port |
| Digital Input and Output | Yes : 1 x Digital Input (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA) |
| Serial port | No |
| Alert Output | Yes : Contact Current Rating (1 A @ 24 VDC) |
| Band Options | LTE Band B2 (1900 MHz) / LTE Band B4 (AWS MHz) / LTE Band B5 (850 MHz) / LTE Band B13 (700 MHz) / LTE Band B17 (700 MHz) / LTE Band B25 (1900 MHz) UMTS/HSPA 2100 MHz / 1900 MHz / AWS MHz / 850 MHz / 900 MHz Universal quad-band GSM/GPRS/EDGE 850 MHz / 900 MHz / 1800 MHz / 1900 MHz |
| Cellular Standards | LTE CAT-4, UMTS, HSPA |
| Cellular Antenna Connectors | 2 x SMA connector(s) |
| WLAN Standards | No |
| WLAN Antenna Connector | No |
| GPS Antenna Connector | No |
| 3g modem : Radio specifications | |
| Radio Connection type | - |
| Maximum data transfer speed of 2G | GPRS: 85.6 kbps DL, 42.8 kbps UL, EDGE: 237 kbps DL, 237 kbps UL (Category 10, 12) |
| Maximum data transfer speed of 3G | 42 Mbps DL, 5.76 Mbps UL (Category 24, 6) |
| Maximum data transfer speed of 4G | 150 Mbps DL, 50 Mbps UL |
| WiFi Radio Frequency | No |
| 3g modem : Software Specifications | |
| Routing Redundancy | - |
| VPN | No |
| Firewall | An embedded firewall allows remote access under whitelist control without disrupting local networks at field sites |
| Time Management | - |
| Management | - |
| 3g modem : General | |
| LED Indicators | USB, Power, Internet, Cloud, Key, Cellular Signal, Chain |
| MTBF | 561,262 hrs |
| Operating mode | Remote Connect Gateway |
| 3g modem : Standards and protocols | |
| Protocols | - |
| 3g modem : Features and capabilities | |
| Send and receive SMS | No |
| 3g modem : Security | |
| Security and Encryption | End-to-end data encryption |
| Authentication | No |
| 3g modem : Power Requirements | |
| Power Connector | - |
| Power Consumption (Output Adapter) | 7.44 W |
| Input Voltage | 12 to 36 VDC |
| POE Support | No |
| Input Current | 0.62 A @ 12 VDC |
| Reverse Polarity Protection | No |
| 3g modem : Buttons | |
| Power button | No |
| Reset | No |
| 3g modem : Physical Characteristics | |
| Installation | - |
| Dimensions | 101 x 27 x 128 mm (3.98 x 1.06 x 5.04 in) |
| Housing | Metal |
| Weight | Packaged: 700 g (1.54 lb) |
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Storage Humidity | - |
| Storage Temperature | - |
| Type of Use | - |
| Standards and Certifications | EMI: CISPR 32, FCC Part 15B Class A; EMC: EN 61000-6-2/-6-4, EN301489-1-52, EN 55032/35; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Safety: EN 61010-2-201, UL 61010-2-201; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Vibration: IEC 60068-2-6; Radio: RED, TELEC; Telcordia (Bellcore) Standard TR/SR |
