Description

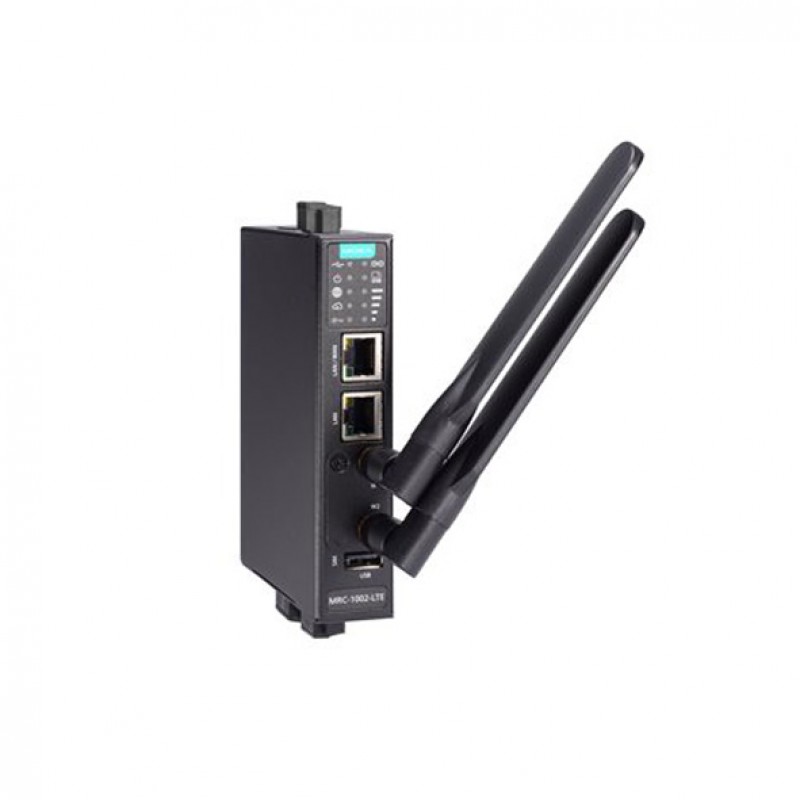

Moxa Remote Connect (MRC) is an easy-to-use, secure, and
versatile networking solution designed to seamlessly bridge field devices,
engineers, and application servers together over the Internet for industrial
applications. The solution combines MRC Server, MRC Gateway, and MRC Client.
The MRC Server is a connection management platform that determines how the MRC
Gateways and MRC Clients are related. The MRC Gateway is a secure gateway that
connects Ethernet-ready devices at remote sites to the MRC Client. The MRC
Client is a software tool that allows engineers to choose which remote device
to connect to from a user’s laptop. Another benefit of the MRC Server is that
it gives administrators a lot of control over the remote connection including
during which periods of time it can be accessed and the kind of features that
are available.
Meanwhile, MRC Quick Link, a remote connection service hosted by Moxa, minimizes maintenance efforts and allows users to focus more on their business.
You can also find the MRC-1002-LTE-JP, MRC-1002-LTE-EU-T, and MRC-1002-LTE-US-T models in the Moxa Remote Connect Suite.
Supported Devices: OnCell Products, MRC Products
Easy World Automation offers the easiest way to buy the MOXA MRC-1002-LTE-EU Remote Connection Management Platform in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| SIM card slot | |
| Ethernet Ports | : 2 x 10/100BaseT(X) Ports (RJ45 connector) |
| USB | : 1 x USB 2.0 Port |
| Digital Input and Output | : 1 x Digital Input (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA) |
| Serial port | |
| Alert Output | : Contact Current Rating (1 A @ 24 VDC) |
| Band Options | LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 7 (2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 20 (800 MHz) UMTS/HSPA 900 MHz / 1800 MHz / 2100 MHz Universal quad-band GSM/GPRS/EDGE 850 MHz / 900 MHz / 1800 MHz / 1900 MHz |
| Cellular Standards | LTE CAT-4, UMTS, HSPA |
| Cellular Antenna Connectors | 2 x SMA connector(s) |
| WLAN Standards | |
| WLAN Antenna Connector | |
| GPS Antenna Connector | |
| Radio specifications | |
| Radio Connection type | - |
| Maximum data transfer speed of 2G | GPRS: 85.6 kbps DL, 42.8 kbps UL, EDGE: 237 kbps DL, 237 kbps UL (Category 10, 12) |
| Maximum data transfer speed of 3G | 42 Mbps DL, 5.76 Mbps UL (Category 24, 6) |
| Maximum data transfer speed of 4G | 150 Mbps DL, 50 Mbps UL |
| WiFi Radio Frequency | |
| Software Specifications | |
| Routing Redundancy | - |
| VPN | |
| Firewall | An embedded firewall allows remote access under whitelist control without disrupting local networks at field sites |
| Time Management | - |
| Management | - |
| General | |
| LED Indicators | USB, Power, Internet, Cloud, Key, Cellular Signal, Chain |
| MTBF | 932,351 hrs |
| Operating mode | Remote Connect Gateway |
| Standards and protocols | |
| Protocols | - |
| Features and capabilities | |
| Send and receive SMS | |
| Security | |
| Security and Encryption | End-to-end data encryption |
| Authentication | |
| Power Requirements | |
| Power Connector | - |
| Power Consumption (Output Adapter) | 7.44 W |
| Input Voltage | 12 to 36 VDC |
| POE Support | |
| Input Current | 0.62 A @ 12 VDC |
| Reverse Polarity Protection | |
| Buttons | |
| Power button | |
| Reset | |
| Physical Characteristics | |
| Installation | - |
| Dimensions | 101 x 27 x 128 mm (3.98 x 1.06 x 5.04 in) |
| Housing | Metal |
| Weight | Packaged: 700 g (1.54 lb) |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Storage Humidity | - |
| Storage Temperature | - |
| Type of Use | - |
| Standards and Certifications | EMI: CISPR 32, FCC Part 15B Class A; EMC: EN 61000-6-2/-6-4, EN301489-1-52, EN 55032/35; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Safety: EN 61010-2-201, UL 61010-2-201; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Vibration: IEC 60068-2-6; Radio: RED, TELEC; Telcordia (Bellcore) Standard TR/SR |
