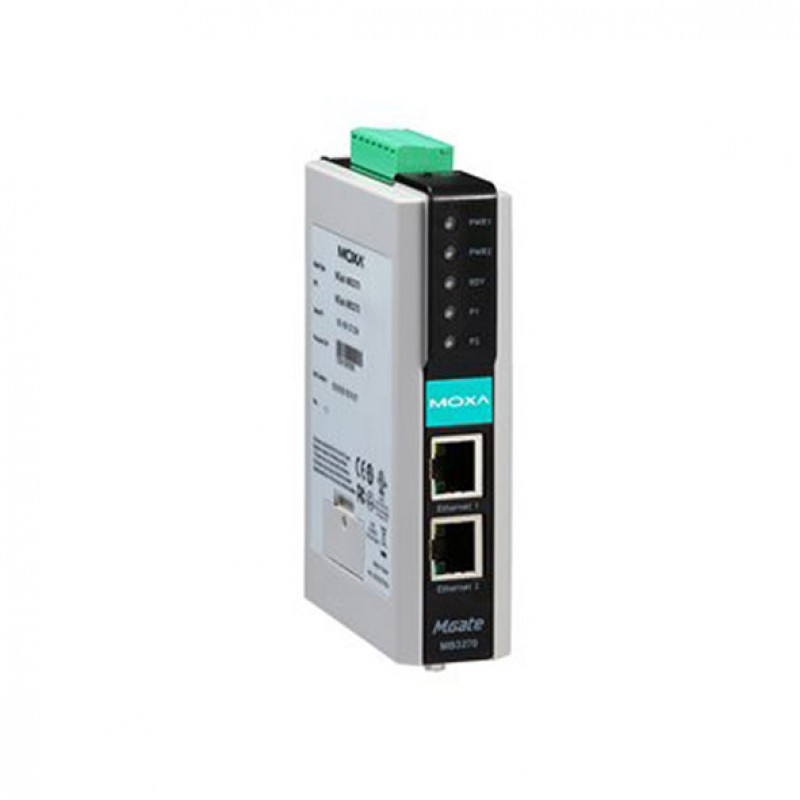

MOXA MGate MB3270I Industrial Ethernet Gateway
- serial to Ethernet Modbus gateway
- 2 x 10/100Mbps T(x) ports and 1 x RS-232/422/485 port
- 12 to 48 VDC input power
- Plastic body
- 0 to 60°C operating temperature
- Brand: MOXA
- Product Code: MGate MB3270I
.png)
Description
The MGate MB3170 and MB3270 are 1 and 2-port Modbus gateways, respectively, that convert between Modbus TCP, ASCII, and RTU communications protocols. The gateways provide both serial-to-Ethernet communication and serial (Master) to serial (slave) communications. In addition, the gateways support simultaneously connecting serial and Ethernet masters with serial Modbus devices. The MGate MB3170 and MB3270 series gateways can be accessed by up to 32 TCP master/clients or connect to up to 32 TCP slave/servers. Routing through the serial ports can be controlled by IP address, TCP port number, or ID mapping. A featured priority control function allows urgent commands to obtain an immediate response. All models are rugged, DIN-rail mountable, and offer optional built-in optical isolation for serial signals.
You can also find the MGate MB3170I, MGate MB3270I-T, and MGate MB3270 models in the Industrial Ethernet Gateways
Easy World Automation offers the
easiest way to buy the MOXA MGate MB3270I Industrial Ethernet Gateway in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 2 Ports |
| RS-422/485 Ports | |
| RS-232/422/485 Ports | : 2 Ports |
| Serial port specifications | |
| Serial Communication Parameters | Data Bits: 7, 8; Stop Bits: 1, 2; Parity: None, Even, Odd, Space, Mark |
| Data transfer speed ( Baudrate ) | 0.05Kbps to 921.6kbps |
| RS-485 Flow Control | ADDC |
| Protection against electrostatic discharge | 15KV |
| Electrical isolation | |
| Standards and protocols | |
| Ethernet Protocol | Modbus TCP |
| Serial Protocol | Modbus RTU/ASCII Master/Slave |
| Serial Communication Parameters | |
| Flow Control | RTS Toggle, DTR / DSR, RTS / CTS (RS-232 only) |
| General | |
| Management | Web Console, Serial Console, Telnet Console, Windows Utility, MGate Manager |
| Supported software | Smart Routing, Serial Redirection, ProCOM, Priority Control, MXview, SNMP v1 |
| Compatible operating systems | Windows2000, Windows XP, Server 2003, Vista, Server 2008 (x86/x64), Windows Server 2008 R2, Windows, 7/8/8.1 (x86/x64), Windows Server 2012 (x64), Windows 2012 R2 |
| Power Requirements | |
| Power Consumption (Output Adapter) | 12V DC to 48V DC |
| Type of power input | Terminal |
| Physical Characteristics | |
| Dimensions | 29x89.2x118.5mm |
| Standards and Certifications | IP30, Safety: UL 508, EN 60950-1; Hazardous Location: Class 1 Division 2, ATEX, IECEx; EMC:EN 55032/24; EMI:CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11; Marine: DNV |
| Housing | Plastic |
| Operating Temperature | 0 to 60 ° C |
| Storage Temperature | -40 to 85 ° C |
| Operation Humidity | 5% to %95 Non-condensing |
| Altitude | - |
