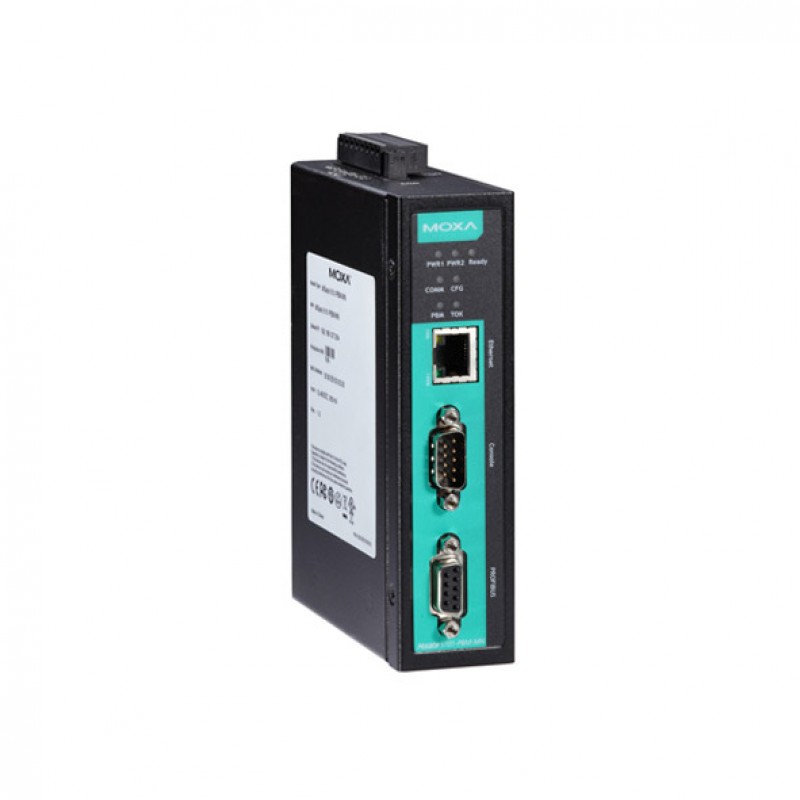

MOXA MGate 5101-PBM-MN-T Industrial Ethernet Gateways
- Converts PROFIBUS to Modbus TCP
- 1 x 10/100BaseT(X) Port (RJ45 connector)
- 1 x PROFIBUS Port (DB9 female connector)
- 2 KV Isolation protection for PROFIBUS port
- IP30-rated Metal body design
- 12 to 48 VDC Redundant dual power inputs
- -40 to 75°C operating temperature
.png)
Description
The MGate 5101-PBM-MN gateway provides a communication portal between PROFIBUS devices (e.g. PROFIBUS drives or instruments) and Modbus TCP hosts. All models are protected with a rugged metallic casing, DIN-rail mountable, and offer optional built-in optical isolation. The PROFIBUS and Ethernet status LED indicators are provided for easy maintenance. The rugged design is suitable for industrial applications such as oil/gas, power, process automation, and factory automation.
You can also find the MGate 5101-PBM-MN model in the Industrial Ethernet Gateways.
Inquire about the MOXA MGate 5101-PBM-MN-T Industrial Ethernet Gateways, designed
for industrial automation solutions. Feel free to get in touch with our sales
team to give you the best solutions at the best global price in the Middle East
(UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 1 Port (auto MDI/MDI-X connection) |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Other ports | : 1 x PROFIBUS Port with 2 KV isolation (DB9 female connector) |
| Protocols | Ethernet: Modbus TCP Client (Master), Modbus TCP Server (Slave); Serial: PROFIBUS DP-V1 Master; PROFIBUS: PROFIBUS DP |
| Serial port specifications | |
| Number of Ports | - |
| Console Port | : RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND), DB9 male (115200, n, 8, 1) |
| Connectors | - |
| Serial Standards | - |
| Isolation | |
| Serial Communication Parameters | |
| Data Bits | - |
| Stop Bits | - |
| Flow Control | - |
| Baudrate | - |
| Serial Signals | |
| RS-232 Signals | - |
| RS-422 Signals | - |
| RS-485-2w Signals | - |
| RS-485-4w Signals | - |
| General | |
| Management | ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client |
| MTBF | 1,082,881 hrs |
| Memory | |
| microSD Slot | |
| Power Requirements | |
| Input Current | 365 mA @ 12 VDC |
| Input Voltage | 12 to 48 VDC (Redundant dual power inputs) |
| Power Connector | Screw-fastened Euroblock terminal |
| Security | |
| Security | Security Protocols: SNMPv3, SNMPv2c Trap, HTTPS (TLS 1.3) |
| Authentication | Local database |
| Encryption | HTTPS, AES-128, AES-256, SHA-256 |
| Physical Characteristics | |
| Dimensions | 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF; Safety: IEC 60950-1, UL 60950-1, EN 62368-1; Hazardous Locations: ATEX, Class I Division 2, IECEx; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; IP30; Telcordia SR332 |
| Housing | Metal |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Weight | 500 g (1.10 lb) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Installation | DIN-rail mounting |
