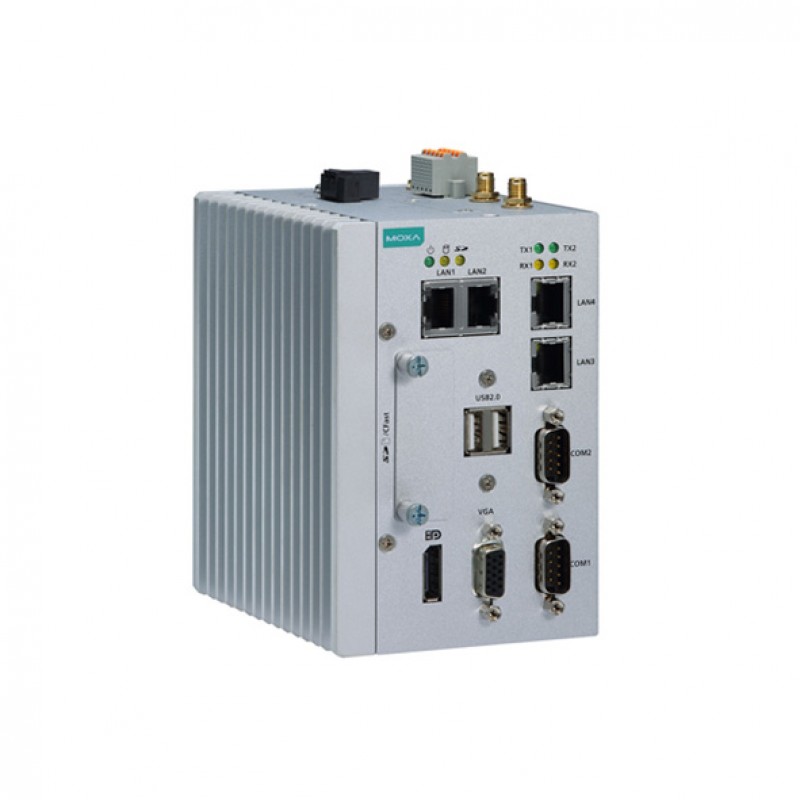

MOXA MC-1121-E2-T Wide Temperature Computer
- CPU: Intel Atom® Processor E3826
- 4 x 10/100/1000 Mbps Ethernet ports
- 2 x RS-232/422/485 Serial Ports
- DIN-rail and Wall mounting
- 12 to 36 VDC isolated power input
- Metal body design
- -40 to 70°C operating temperature
Description
The MC-1100 Series DIN-rail mountable, fanless, x86 embedded
computers use the Intel® Atom™ E3800 Series processor, feature the most
reliable I/O design to maximize connectivity and support wireless modules
(Wi-Fi/3G/LTE), making them suitable for a diverse range of communication
applications.
The MC-1100’s wide operating temperature range (-40 to 70°C)
and safety/EMI/EMS compliances make it ideal for intelligent computing and
communication solutions in critical environments, including marine
communication, oil, and gas field site monitoring, and transportation. The
MC-1100 Series supports the “Moxa Proactive Monitoring” tool for the device I/O
status monitoring and alerts, system temperature monitoring and alerts, and
system power management. Close monitoring of the system status makes it easier
to recover from errors and provides the most reliable platform for your
applications.
The MC-1100 series is Microsoft Azure Certified for IoT. It can leverage the Microsoft reference configuration and has been tested to work with Microsoft Azure IoT services for Industrial IoT applications.
You can also find the MC-1111-E4-T, MC-1122-E2-T, and MC-1112-E4-T models in the Wide Temperature Computers.
Discover industrial automation
solutions appropriate to your needs, and easily
inquire about the MOXA MC-1121-E2-T Wide Temperature Computer through our user-friendly website via one of our Middle
East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Computer | |
|---|---|
| CPU | Intel Atom® Processor E3826 (1M Cache, 1.46 GHz) |
| Supported OS | Linux Debian 8 (Linux kernel v4.1), Windows Embedded Standard 7 (WS7E) 64-bit, Windows 10 Embedded IOT Ent 2016 LTSB |
| OS (pre-installed) | - |
| System Memory | 4 GB DDR3L |
| Graphics Controller | Intel® HD Graphics 4000 |
| Storage Slot | 1 x CFast, 1 x SD |
| Interface | |
| LAN | 4 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) |
| Magnetic Isolation Protection | - |
| Digital Input/Output Channels | 4 x Digital inputs, 4 x Digital outputs |
| Serial Ports | 2 x RS-232/422/485 ports, software-selectable (DB9 male) |
| USB | USB 2.0 hosts x 2, Type A connectors |
| Expansion Slot | mPCIe slot x 1 |
| Serial Communication Parameters | |
| Baudrate | 50 bps to 115.2 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | - |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | ADDC® (automatic data direction control) for RS-485, RTS/CTS, XON/XOFF |
| Serial Signals | |
| RS-232 | - |
| RS-422 | - |
| RS-485-4w | - |
| RS-485-2w | - |
| LED Indicators | |
| System | Power x 1, Storage x 1 |
| LAN | 2 LEDs per port (100/1000 Mbps) |
| Serial | 2 LEDs per port (Tx and Rx) |
| Power Requirements | |
| Input Voltage | 11.4 to 36 VDC |
| Input Current | - |
| Power Consumption | 30 W (max.) |
| General | |
| Alert Tools | - |
| Automatic Reboot Trigger | Built-in WDT |
| MTBF | - |
| Physical Characteristics | |
| Dimensions | 132 x 122 x 87 mm (5.20 x 4.81 x 3.43 in) |
| Housing | Aluminum, sheet metal |
| Operating temperature | -40 to 70°C (-40 to 158°F) |
| Storage Temperature | -45 to 75°C (-49 to 167°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-8 PFMF, IEC 61000-4-6 CS: 10 V, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV; Hazardous Locations: ATEX Zone 2, Class I Division 2, IECEx Zone 2; Maritime: DNV-GL, IEC 60945; Radio Frequency: FCC; Safety: UL 60950-1; |
| Weight | 1,022 g (2.25 lb) |
| Mounting | DIN-rail mounting, Wall mounting (with optional kit) |
