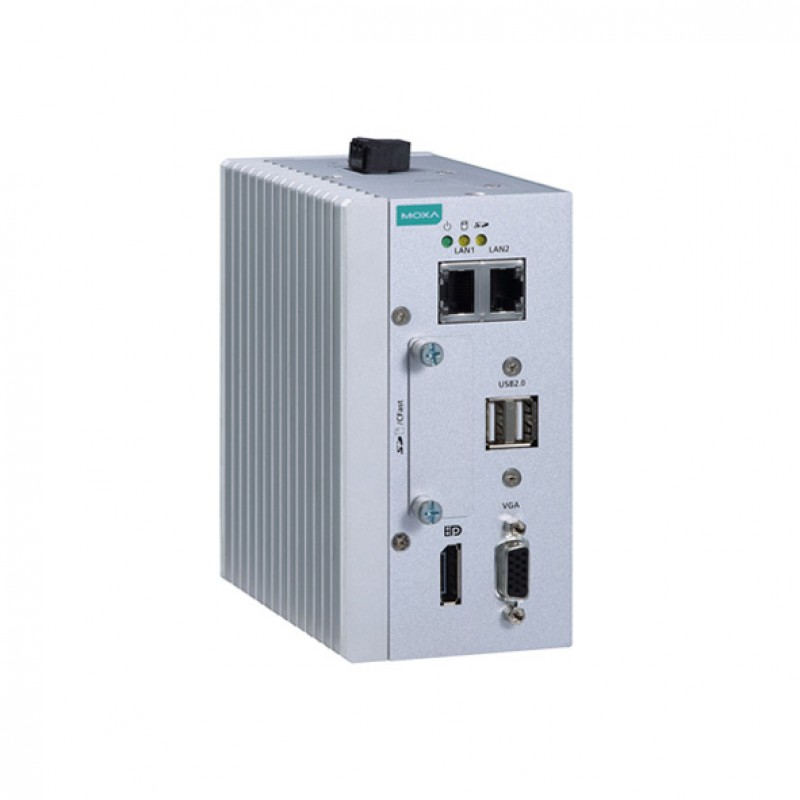

MOXA MC-1111-E2-T Wide Temperature Computer
- 2 x Auto-sensing 10/100/1000Mbps Ethernet ports
- 2 x USB 2.0 hosts
- 4 GB DDR3/DDR3L System Memory Pre-installed
- Intel Atom® E3845 CPU
- Supported OS : Linux Debian 8 (Linux kernel v4.1) Windows Embedded Standard 7 (WS7E) 64-bit Windows 10 Embedded IOT Ent 2016 LTSB
- -40 to 70°C operating temperature
Description
The MC-1100 Series DIN-rail mountable, fanless, x86 embedded
computers use the Intel® Atom™ E3800 Series processor, feature the most
reliable I/O design to maximize connectivity and support wireless modules
(Wi-Fi/3G/LTE), making them suitable for a diverse range of communication
applications.
The MC-1100’s wide operating temperature range (-40 to 70°C)
and safety/EMI/EMS compliances make it ideal for intelligent computing and
communication solutions in critical environments, including marine
communication, oil and gas field site monitoring, and transportation. The
MC-1100 Series supports the “Moxa Proactive Monitoring” tool for device I/O
status monitoring and alerts, system temperature monitoring and alerts, and
system power management. Close monitoring of the system status makes it easier
to recover from errors and provides the most reliable platform for your
applications.
The MC-1100 Series is Microsoft Azure Certified for IoT. It can leverage the Microsoft reference configuration and has been tested to work with Microsoft Azure IoT services for Industrial IoT applications.
You can also find the MC-1122-E4-T, MC-1112-E2-T, and MC-1111-E4-T models in the x86 computers.
Experience the convenient way to purchase the MOXA MC-1111-E2-T Wide Temperature Computer in the
Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts
will provide the most helpful information about the price and sale conditions
for a wonderful buying experience.
Specification
| Interface | |
|---|---|
| LAN | 2 auto-sensing 10/100/1000 Mbps ports (RJ45) |
| Magnetic Isolation Protection | 1.5 kV built-in |
| Serial Standards | - |
| Computer | |
| CPU | Intel Atom® Processor E3826 (1M Cache, 1.46 GHz) |
| System Memory | 1 DDR3L SO-DIMM slot, 4 GB pre-installed, supports up to 8 GB |
| USB | USB 2.0 hosts x 2, Type A connectors |
| Storage | CFast: 1 CFast socket for OS storage; CFast supports 16 GB, 32 GB, 64 GB and 128 GB, SD: 1 SD 3.0 (SDHC/SDXC) socket for storage expansion; SD supports 16 GB, 32 GB, 64 GB, and 128 GB (only for the MC-1111 and MC-1121 series) |
| Display | |
| Graphics Controller | Intel® HD Graphics 4000 |
| Display Interface | VGA interface x 1: 15-pin D-Sub connector (female), with resolution up to 1920 x 1200 pixels at 75 Hz, Display port interface x 1: Display port connector, with resolution up to 2560 x 1600 pixels at 60 Hz (only for the MC-1111 and MC- |
| Compatible Operating Systems | |
| Operating System | Supports Windows 10 IoT, 64-bit Windows 7 Embedded, and Linux Debian 8 |
| Digital Input | |
| Input Channels | DI x 4 (non-isolation) |
| Input Voltage | Logic level 0: Close to GND, Logic level 1: Open |
| Digital Output | |
| Output Channels | DO x 4 (Non-Isolation) |
| Output Voltage | Logic level 0: 0 to 0.55 V, Logic level 1: 5 VDC (4.7 to 5 V) |
| Output Clamping Current | 24 mA |
| Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485 |
| Baudrate | 50 bps to 115.2 kbps |
| Serial Signals | |
| RS-232 | TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND |
| RS-422 | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-4w | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Power |
| LAN | 2 LEDs per port (100/1000 Mbps) |
| Serial | 2 LEDs per port (Tx and Rx) |
| Storage Device | CFast, SD |
| Power Requirements | |
| Input Voltage | 12/24 VDC typical (11.4 to 36 VDC tolerance, 2-pin terminal block)(DNV: 24 VDC) |
| Power Consumption | Less than 30 W |
| General | |
| Automatic Reboot Trigger | Built-in watchdog timer (WDT), configurable for resets following 1-255 second hang intervals; software programmable |
| Physical Characteristics | |
| Dimensions | 132 x 122 x 87 mm (5.20 x 4.81 x 3.43 in) |
| Housing | Aluminum, sheet metal |
| Operating temperature | -40 to 70°C (-40 to 158°F)(DNV: -25 to 70°C) |
| Storage Temperature | -45 to 75°C (-49 to 167°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| EMC | EN 55032, EN 55024 |
| Weight | 1.75 g (3.86 lb) |
| Anti-Vibration | 0.7 g @ DNV GL (Class A), sine wave, 2-100 Hz, 1 Oct./min., 1.5 hr per axis, 1 g @ DNV GL, random wave, 3-100 Hz, 2.5 hr per axis |
| Safety | UL 60950-1 |
| Green Product | RoHS, cRoHS, WEEE |
| Anti-Shock | 50g/11ms ±X, ±Y, ±Z, 3 shocks each axis w/ CFast, SD |
| Hazardous Location | Class 1 Division 2, ATEX/IECEx Zone 2 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 |
| Mounting | DIN rail, wall (DNV) |
