Description

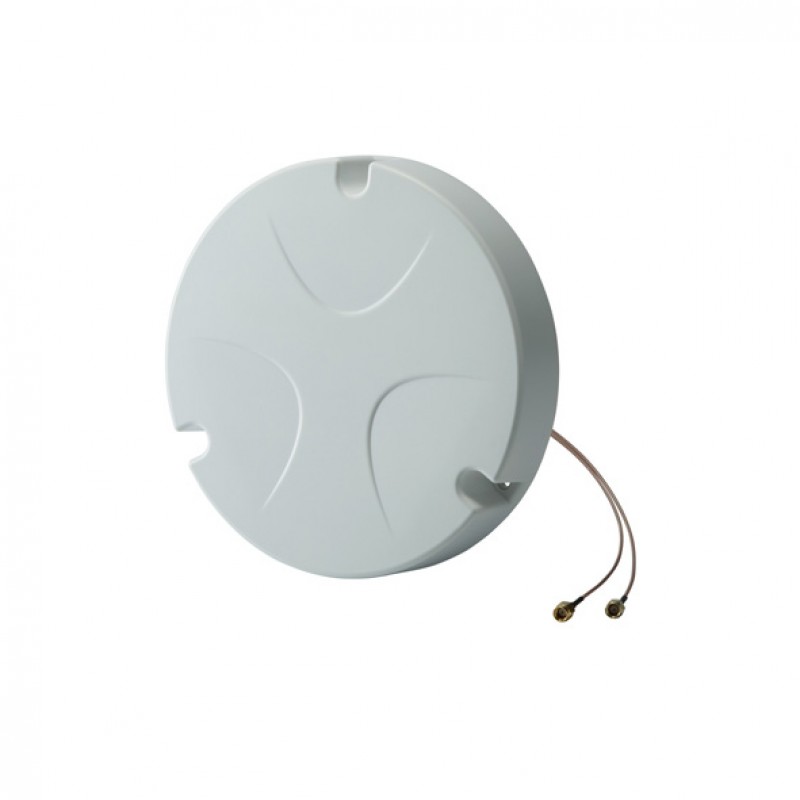

The MAT-WDB-CA-RM-2-0205 antenna is a lightweight MIMO 2x2 dual-band ceiling antenna with an RP-SMA-type (male) connector. The antenna can be used in both the 2.4 GHz and 5 GHz frequencies and is designed to operate in temperatures from -40 to 75°C.
You can Buy the MOXA MAT-WDB-CA-RM-2-0205 WLAN Antenna and all the MOXA Antennas via inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific time in your location.
Specification
Antenna Characteristics | |
---|---|
Frequency | 2.4 to 2.5, 4.9 to 5.9 GHz |
Antenna Type | MIMO 2x2, Omni-directional |
Antenna Gain | 2/5 dBi |
Connector | RP-SMA (male) |
Impedance | 50 ohms |
Polarization | Linear |
Power Handling | 10 W (max.) |
Physical Characteristics | |
Weight | 115 g (0.25 lb) |
Operating Temperature | -40 to 75°C (-40 to 167°F) |
Storage Temperature | -40 to 75°C (-40 to 167°F) |
Ambient Relative Humidity | 5 to 95% (30°C, non-condensing) |
