Description

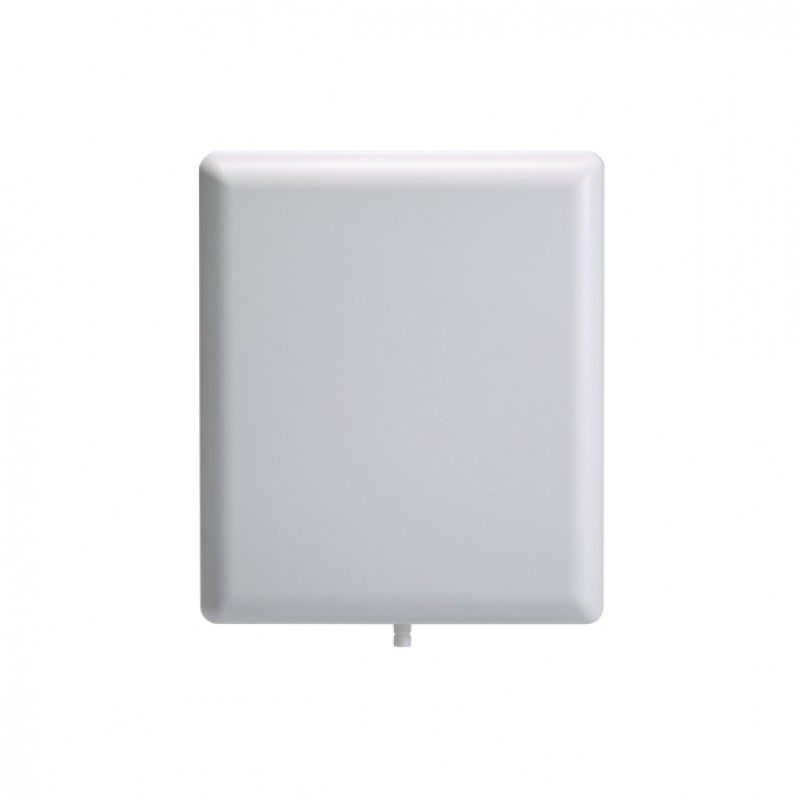

The MAT-WDB-PA-NF-2-0708 antenna is a compact MIMO 2x2 dual-band panel antenna with an N-type (female) connector. The antenna can be used in both the 2.4 GHz and 5 GHz frequencies and provides a gain of 7/8 dBi.
You can place an order for the MOXA MAT-WDB-PA-NF-2-0708 WLAN Antenna and all the MOXA Antennas online via one of our Middle East branches (Dubai/Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
Specification
| Antenna Characteristics | |
|---|---|
| Frequency | 2.4 to 2.5, 4.9 to 5.9 GHz |
| Antenna Type | MIMO 2x2, Directional, Panel |
| Antenna Gain | 7/8 dBi |
| Connector | N-type (female) |
| Impedance | 50 ohms |
| Polarization | Vertical, Vertical |
| Power Handling | 2 W (max.) |
| Physical Characteristics | |
| Weight | 935 g (2.06 lb) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (30°C, non-condensing) |
