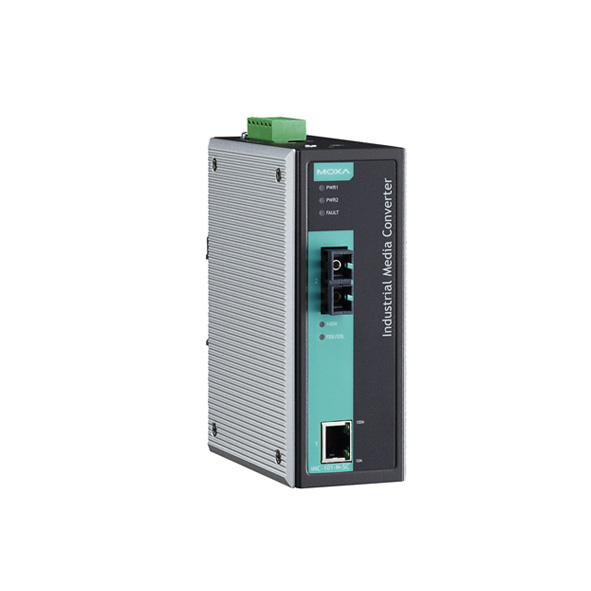

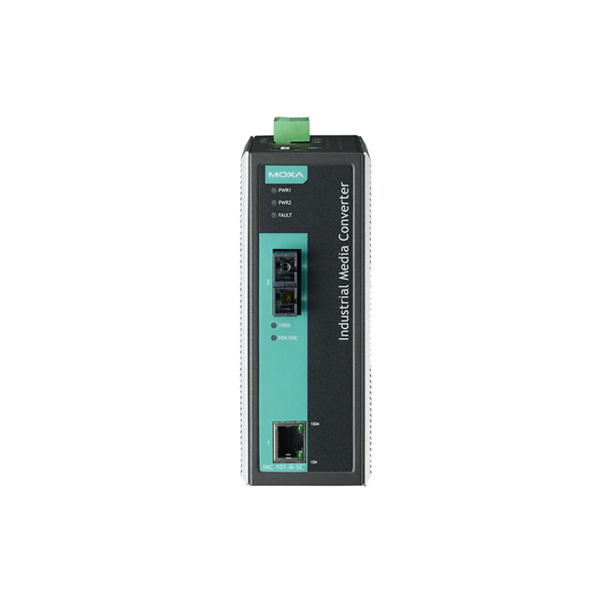

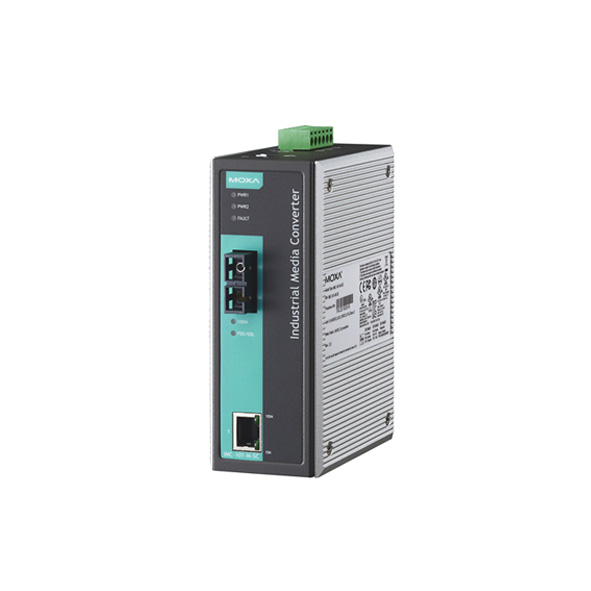

Name: MOXA IMC-101-S-SC-T Ethernet to Fiber Converter
Brand: MOXA
Availability: OutOfStock

MOXA IMC-101-S-SC-T Ethernet to Fiber Converter

1 x 10/100BaseT(X) Port (RJ45 connector)
1 x 100BaseFX Port (single-mode SC connector)
40 KM Typical data transmission distance on fiber
12 to 45 VDC input power range
IP30-rated Metal body design
DIN-rail mounting
-40 to 75°C operating temperature

Brand: MOXA
Model: IMC-101-S-SC-T

0 reviews • Write a review

Datasheet User Guide

Operating Temperature (-40 to 75°C)
Relative Humidity (5 to 95% non-condensing)
Vibration (IEC 60068-2-6)
IP protection (IP30)
Hazardous Location (UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 EEx nC IIC, IECEx)

Oil & Gas
Marine
Factory Automation

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA A52-DB25F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB25F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB9F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB9F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB25F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB25F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB9F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB9F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Network Infrastructure , Ethernet Media Converters , Ethernet to Fiber Converters , Media Converters , Industrial Data Communications , Industrial Media Converters , Industrial Converters , Factory Automation Products , Marine Products , Oil & Gas Products , Converters , MOXA IMC-101 Series

The IMC-101 industrial media converters provide industrial-grade media conversion between 10/100BaseT(X) and 100BaseFX (SC/ST connectors). The IMC-101 converter’s reliable industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101 converter comes with a relay output warning alarm to help prevent damage and loss. The IMC-101 media converters are designed for harsh industrial environments in hazardous locations (Class 1, Division 2/Zone 2, IECEx, DNV, and GL Certification) and comply with FCC, UL, and CE standards. Models in the IMC-101 Series support operating temperature from 0 to 60°C, and an extended operating temperature from -40 to 75°C. All IMC-101 converters are subjected to a 100% burn-in test.

You can also find the IMC-101-S-SC, IMC-101-M-SC-T, and IMC-101-M-ST models in the Industrial Media Converters.

Easy World Automation offers the easiest way to buy the MOXA IMC-101-S-SC-T Ethernet to Fiber Converter in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

eth to fiber : Interface
10/100Mb RJ45 (Megabit) Ports	Yes : 1 Port
10/100/1000Mb RJ45 (Gigabit) Ports	No
10/100Mb (Megabit) POE Ports	No
100Mb Fiber optic multi mode (Megabit) Ports	No
100Mb Fiber optic single mode (Megabit) Ports	Yes : 1 SC Port
1000Mb Fiber optic single mode (Gigabit) Ports	No
1000Mb SFP Fiber optic (Gigabit) Ports	No
M12 port	No
Alert Output	Yes
Magnetic Isolation Protection	1.5 kV (built-in)
eth to fiber : Standards and protocols
Protocols and work standards	-
eth to fiber : General
Maximum cable length for data transfer	40Km on the fiber
MTBF	401,000 hour
eth to fiber : Power Requirements
Input Voltage	12 to 45 VDC
Input Current	200 mA @ 12 to 45 VDC
Overload Current Protection	Supported
Type of power input	Terminal block
Power Consumption	200 mA @ 12 to 45 VDC
eth to fiber : Physical Characteristics
Standards and Certifications	EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Safety: EN 60950-1, UL 60950-1; Vibration: IEC 60068-2-6; Hazardous Locations: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2; Maritime: DNV; IP30; MIL-HDBK-217F
Housing	Metal
Dimensions	53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight	630 g (1.39 lb)
Operating Temperature	-40 to 85°C (-40 to 185°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operation Humidity	5 to 95% (non-condensing)
Installation	DIN-rail mounting

Datasheet User Guide
