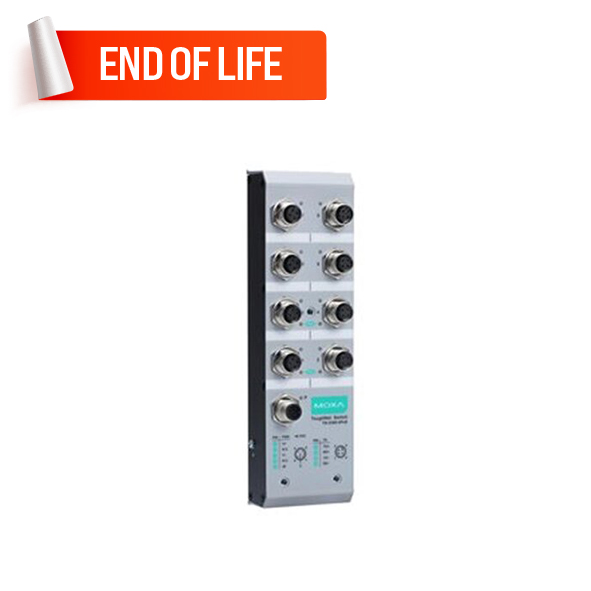

MOXA TN-5308-4PoE-48-CT Unmanaged Ethernet Switch

MOXA TN-5308-4PoE-48-CT Unmanaged Ethernet Switch
MOXA TN-5308-4PoE-48-CT Unmanaged Ethernet Switch
MOXA TN-5308-4PoE-48-CT Unmanaged Ethernet Switch
MOXA TN-5308-4PoE-48-CT Unmanaged Ethernet Switch
MOXA TN-5308-4PoE-48-CT Unmanaged Ethernet Switch

  • 4 x 10/100Mbps T(x) ports (M12 connector)
  • 4 x 10/100Mbps T(x) PoE ports (M12 connector)
  • Supports IEEE 802.3/802.3u/802.3x (IEEE 802.3af for PoE)
  • DIN-rail and Wall mounting
  • IP40-rated metal housing design
  • 48 VDC input power range (M12 connector)
  • -25 to 60°C operating temperature

  • Brand: MOXA
  • Model: TN-5308-4PoE-48-CT
0 reviews • Write a review
Datasheet
  • Operating Temperature (-25 to 60°C)
  • Relative Humidity (5 to 95% non-condensing)
  • IP protection (IP40)
  • Freefall (IEC 60068-2-32)
  • Shock (IEC 60068-2-27, IEC 61373, EN 50155)
  • Vibration (IEC 60068-2-64, IEC 61373, EN 50155)
  • Factory Automation
  • Railway Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA CM-600-2MSC/2TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-2MSC/2TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-2SSC/2TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-2SSC/2TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-3MSC/1TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-3MSC/1TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-3SSC/1TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-3SSC/1TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-4MSC Fast Ethernet Interface Module
Quickview
MOXA CM-600-4MSC Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-4MST Fast Ethernet Interface Module
Quickview
MOXA CM-600-4MST Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-4SSC Fast Ethernet Interface Module
Quickview
MOXA CM-600-4SSC Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-4TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-4TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Ethernet Switches , Industrial Data Communications , Unmanaged Ethernet Switches , PoE Switches , EN50155 Ethernet Switches , EN 50155 Switches , Industrial Ethernet Switches , Factory Automation Products , Railway Transportation Products , Switches , MOXA TN-5308 Series

The ToughNet TN-5308 Series M12 unmanaged Ethernet switches are designed for industrial applications in harsh environments. TN-5308 Series switches use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. The TN-5308 Series Ethernet switches provide 8 Fast Ethernet M12 ports, support IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for your industrial Ethernet network.

Models with an extended operating temperature range of -40 to 75°C are also available. TN-5308 Ethernet switches comply with those EN 50155 requirements that make products more suitable for rolling stock applications, including operating temperature, power input voltage, surge, ESD, and vibration, making the switches suitable for a variety of industrial applications. TN-5308 PoE Ethernet switches provide 4 or 8 IEEE 802.3af compliant PoE ports. These switches are classified as power source equipment (PSE) and provide up to 15.4 watts of power per port.



End of Life Product - Replacement Available

Please note that the TN-5308 Series has been phased out and replaced by the TN-5300A Series.



Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA TN-5308-4PoE-48-CT Unmanaged Ethernet Switch through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

switch and hub : Interface
Number of ports 8 Ports
10/100Mb RJ45 (Megabit) Ports No
10/100/1000Mb RJ45 (Gigabit) Ports No
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports Yes : 4 Ports (M12 connector)
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 4 x 10/100BaseT(X) Ports (M12 D-Coded Female Connector)
switch and hub : Features and capabilities
Backup No
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current 1.6 A @ 48 VDC
Power Input Plugin ( Redundant ) No
Input Voltage 48 VDC
Operating Voltage 46 to 50 VDC
Power Consumption -
switch and hub : General
Fan / Fanless Fanless
MTBF 2,070,877 hrs
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 1
Switch type Unmanaged
Port Aggregation No
switch and hub : Physical Characteristics
Dimensions 60 x 216.6 x 48.7 mm (2.36 x 8.53 x 1.91 in)
Housing Metal
Installation DIN-rail mounting (with optional kit), Wall mounting
Operating Temperature -25 to 60°C (-13 to 140°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications Freefall: IEC 60068-2-32; EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, EN 50155, IEC 60068-2-14, EN 50155, IEC 60068-2-2, EN 50155, IEC 60068-2-30, EN 50155; International Approval: RCM; Railway: EN 50121-4, EN 50155; Railway Fire Protection: EN 45545-2; Safety: EN 60950-1, UL 508; Salt Spray Test: IEC 60068-2-11, EN 50155; Green Product: RoHS, CRoHS, WEEE; IP40; Telcordia SR332
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 675 g (1.49 lb)
switch and hub : Standards and protocols
Protocols and work standards -
Protocols and management standards -
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
