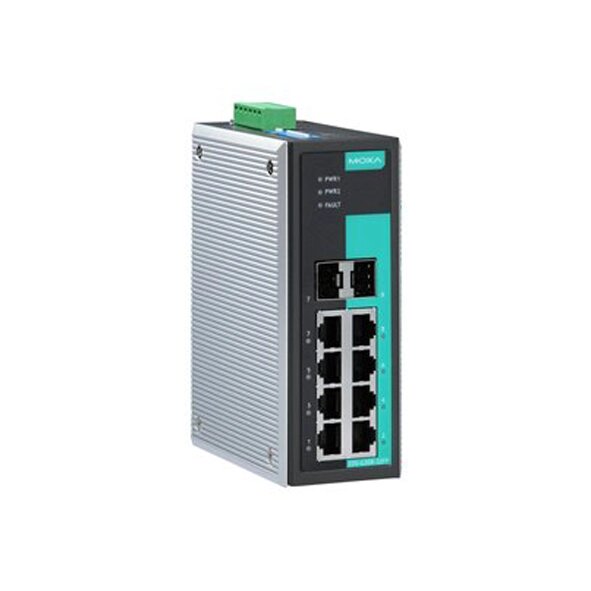

MOXA EDS-G308-2SFP Unmanaged Ethernet Switches

MOXA EDS-G308-2SFP Unmanaged Ethernet Switches
MOXA EDS-G308-2SFP Unmanaged Ethernet Switches
MOXA EDS-G308-2SFP Unmanaged Ethernet Switches
MOXA EDS-G308-2SFP Unmanaged Ethernet Switches
MOXA EDS-G308-2SFP Unmanaged Ethernet Switches
  • 6 x 100/1000Mbps ports (RJ45 connector)
  • 2 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)
  • DIN-rail and Wall mounting
  • IP30-rated metal housing
  • 12/24/48 VDC Redundant dual power inputs
  • -10 to 60°C operating temperature
  • Brand: MOXA
  • Model: EDS-G308-2SFP
0 reviews • Write a review
Datasheet User Guide
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
  • Hazardous Location (Class 1 Division 2, ATEX, IECEx)
  • Operating Temperature (-10 to 60°C)
  • Oil & Gas
  • Factory Automation
  • Marine
  • Railway Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA CM-600-2MSC/2TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-2MSC/2TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-2SSC/2TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-2SSC/2TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-3MSC/1TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-3MSC/1TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-3SSC/1TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-3SSC/1TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-4MSC Fast Ethernet Interface Module
Quickview
MOXA CM-600-4MSC Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-4MST Fast Ethernet Interface Module
Quickview
MOXA CM-600-4MST Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-4SSC Fast Ethernet Interface Module
Quickview
MOXA CM-600-4SSC Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-4TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-4TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Ethernet Switches , Unmanaged Switches , Unmanaged Ethernet Switches , Industrial Data Communications , Industrial Ethernet Switches , Factory Automation Products , DIN-Rail Ethernet Switches , Oil & Gas Products , Railway Transportation Products , Marine Products , Switches , MOXA EDS-G308 Series

The EDS-G308 switches are equipped with 8 Gigabit Ethernet ports and 2 fiber-optic ports, making them ideal for applications that demand high bandwidth. The EDS-G308 switches provide an economical solution for your industrial Gigabit Ethernet connections, and the built-in relay warning function alerts network managers when power failures or port breaks occur. The 4-pin DIP switches can be used for controlling broadcast protection, jumbo frames, and IEEE 802.3az energy saving. In addition, 100/1000 SFP speed switching is ideal for easy on-site configuration for any industrial automation application. A standard-temperature model, which has an operating temperature range of -10 to 60°C, and a wide-temperature range model, which has an operating temperature range of -40 to 75°C, are available. Both models undergo a 100% burn-in test to fulfill the special needs of industrial automation control applications. The switches can be installed easily on a DIN rail or in distribution boxes.


You can also find the EDS-G308-2SFP-T, EDS-G308, and EDS-G308-T models in the DIN-Rail Ethernet Switches.


Inquire about the MOXA EDS-G308-2SFP Unmanaged Ethernet Switches, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

switch and hub : Interface
Number of ports 8 Ports
10/100Mb RJ45 (Megabit) Ports No
10/100/1000Mb RJ45 (Gigabit) Ports Yes : 6 Ports
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 2 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+), 1 x Alarm Contact Channel
switch and hub : Features and capabilities
Backup No
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current 0.9 A @ 12-48 VDC
Power Input Plugin ( Redundant ) Yes
Input Voltage 12/24/48 VDC
Operating Voltage 9.6 to 60 VDC
Power Consumption -
switch and hub : General
Fan / Fanless Fanless
MTBF 2,260,195 hrs
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 1
Switch type UnManaged
Port Aggregation No
switch and hub : Physical Characteristics
Dimensions 52.85 x 135 x 105 mm (2.08 x 5.31 x 4.13 in)
Housing Metal
Installation DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature -10 to 60°C (14 to 140°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications Safety: UL 508, EN 62368-1 (LVD); EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 800 MHz: 10 V/m, IEC 61000-4-3 RS: 800 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF: 100 A/m; Hazardous Locations: ATEX, Class I Division 2; Railway: EN 50121-4; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Maritime: DNV, LR, ABS, NK; IP30; Telcordia (Bellcore), GB
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 880 g (1.94 lb)
switch and hub : Standards and protocols
Protocols and work standards -
Protocols and management standards -
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
