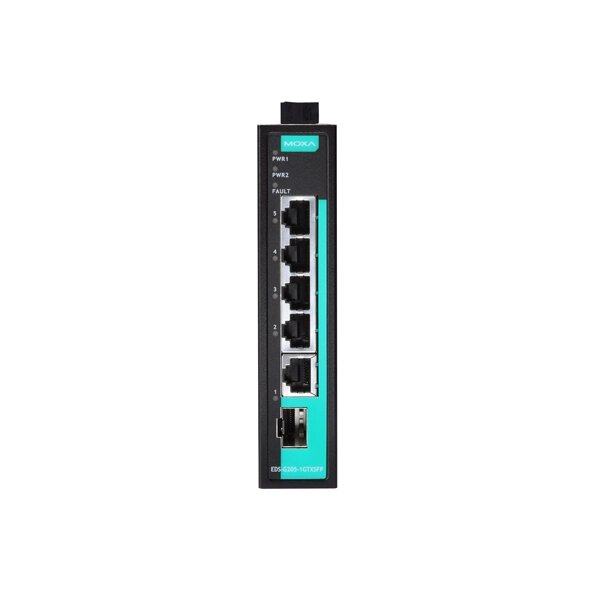

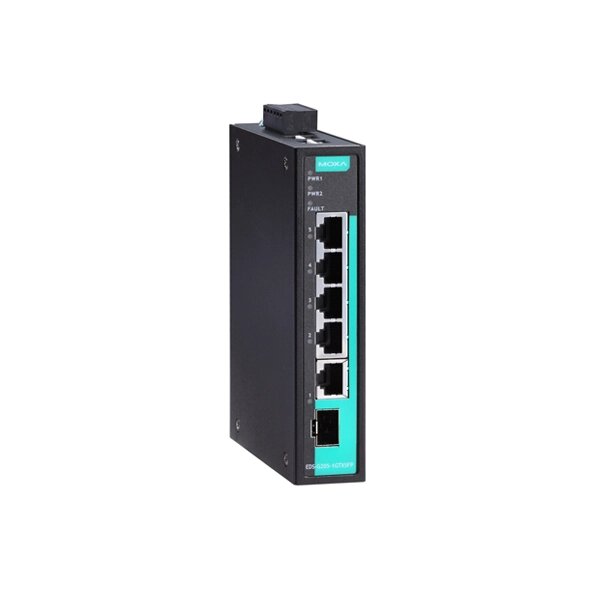

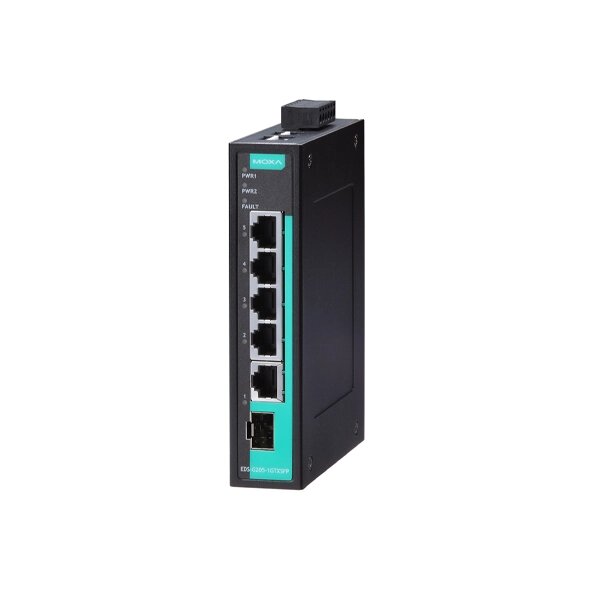

MOXA EDS-G205-1GTXSFP-T Unmanaged Ethernet Switches

MOXA EDS-G205-1GTXSFP-T Unmanaged Ethernet Switches
MOXA EDS-G205-1GTXSFP-T Unmanaged Ethernet Switches
MOXA EDS-G205-1GTXSFP-T Unmanaged Ethernet Switches
MOXA EDS-G205-1GTXSFP-T Unmanaged Ethernet Switches
MOXA EDS-G205-1GTXSFP-T Unmanaged Ethernet Switches
MOXA EDS-G205-1GTXSFP-T Unmanaged Ethernet Switches
MOXA EDS-G205-1GTXSFP-T Unmanaged Ethernet Switches

  • 4 x 100/1000Mbps ports (RJ45 connector)
  • 1 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)
  • DIN-rail and Wall mounting
  • IP30-rated metal housing
  • 12/24/48 VDC Redundant dual power inputs
  • -40 to 75°C operating temperature

  • Brand: MOXA
  • Model: EDS-G205-1GTXSFP-T
0 reviews • Write a review
Datasheet User Guide
  • Operating Temperature (-40 to 75°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
  • IP protection (IP30)
  • Hazardous Location (Class 1 Division 2, ATEX, IECEx)
  • Oil & Gas
  • Factory Automation
  • Marine
  • Railway Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA CM-600-2MSC/2TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-2MSC/2TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-2SSC/2TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-2SSC/2TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-3MSC/1TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-3MSC/1TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-3SSC/1TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-3SSC/1TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-4MSC Fast Ethernet Interface Module
Quickview
MOXA CM-600-4MSC Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-4MST Fast Ethernet Interface Module
Quickview
MOXA CM-600-4MST Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-4SSC Fast Ethernet Interface Module
Quickview
MOXA CM-600-4SSC Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-4TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-4TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Industrial Data Communications , Ethernet Switches , Unmanaged Switches , Unmanaged Ethernet Switches , Industrial Ethernet Switches , DIN-Rail Ethernet Switches , Factory Automation Products , Railway Transportation Products , Marine Products , Oil & Gas Products , Switches , MOXA EDS-G205 Series

The EDS-G205-1GTXSFP switches are equipped with 5 Gigabit Ethernet ports and 1 fiber-optic port, making them ideal for applications that require high bandwidth. The EDS-G205-1GTXSFP switches provide an economical solution for your industrial Gigabit Ethernet connections and the built-in relay warning function alerts network managers when power failures or port breaks occur. The 4-pin DIP switches can be used for controlling broadcast protection, jumbo frames, and IEEE 802.3az energy saving. In addition, 100/1000 SFP speed switching is ideal for easy onsite configuration for any industrial automation application. A standard-temperature model, which has an operating temperature range of -10 to 60°C, and a wide-temperature range model, which has an operating temperature range of -40 to 75°C, are available. Both models undergo a 100% burn-in test to fulfill the special needs of industrial automation control applications. The switches can be installed easily on a DIN rail or in distribution boxes.


You can also find the EDS-G205A-4PoE-1GSFP-T, EDS-G205A-4PoE, and EDS-G205-1GTXSFP models in the DIN-Rail Ethernet Switches.


You can Buy the MOXA EDS-G205-1GTXSFP-T Unmanaged Ethernet Switches via inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh) and Oman). Enjoy the cost-effective shipping options at a specific time in your location.

switch and hub : Interface
Number of ports 5 Ports
10/100Mb RJ45 (Megabit) Ports No
10/100/1000Mb RJ45 (Gigabit) Ports Yes : 4 Ports
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 1 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+), 1 x Alarm Contact Channel
switch and hub : Features and capabilities
Backup No
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current 380 mA
Power Input Plugin ( Redundant ) Yes
Input Voltage 12/24/48 VDC
Operating Voltage 9.6V DC to 60V DC
Power Consumption -
switch and hub : General
Fan / Fanless Fanless
MTBF 2,823,446 hrs
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 1
Switch type Unmanaged
Port Aggregation No
switch and hub : Physical Characteristics
Dimensions 29 x 135 x 105 mm (1.14 x 5.31 x 4.13 in)
Housing Metal
Installation DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature -40 to 75°C (-40 to 167°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications Safety: UL 508, EN 62368-1 (LVD); EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Hazardous Locations: ATEX, Class I Division 2; Railway: EN 50121-4; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Maritime: ABS, LR, NK, DNV; IP30Telcordia (Bellcore), GB
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 290 g (0.64 lb)
switch and hub : Standards and protocols
Protocols and work standards -
Protocols and management standards -
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
