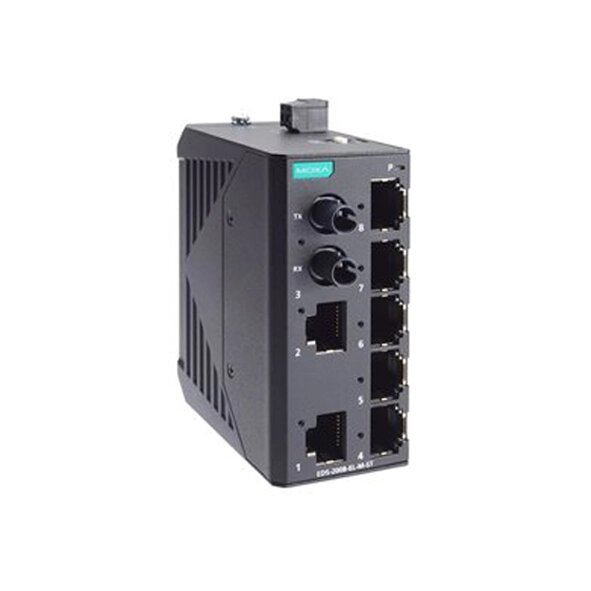

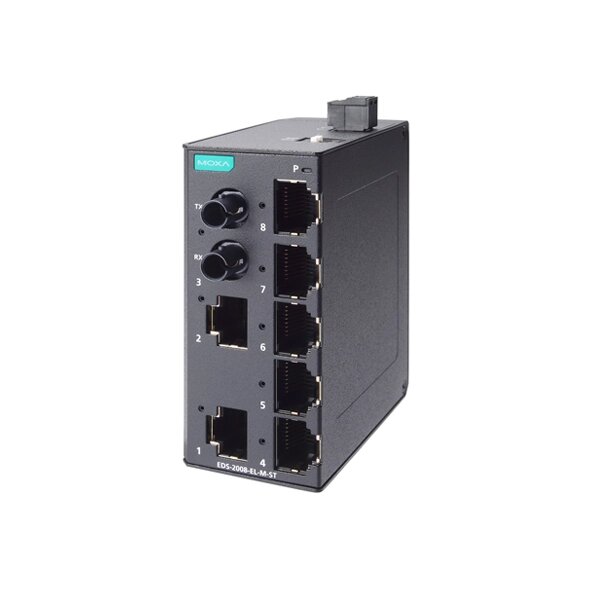

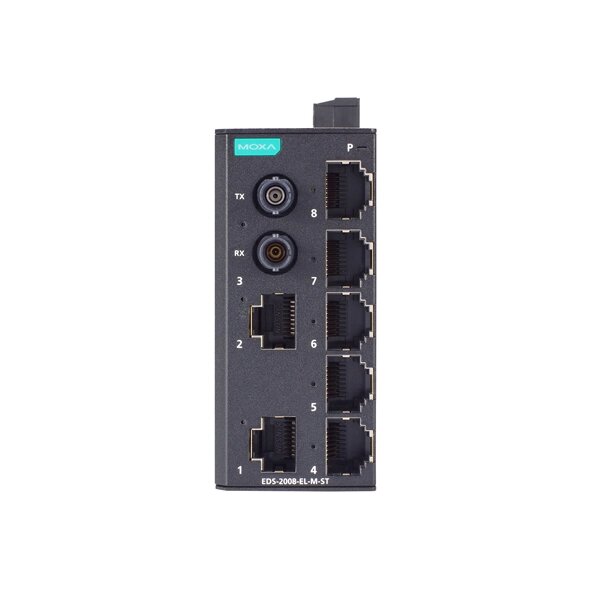

MOXA EDS-2008-EL-M-ST-T Unmanaged Ethernet Switches

MOXA EDS-2008-EL-M-ST-T Unmanaged Ethernet Switches
MOXA EDS-2008-EL-M-ST-T Unmanaged Ethernet Switches
MOXA EDS-2008-EL-M-ST-T Unmanaged Ethernet Switches
MOXA EDS-2008-EL-M-ST-T Unmanaged Ethernet Switches
MOXA EDS-2008-EL-M-ST-T Unmanaged Ethernet Switches
MOXA EDS-2008-EL-M-ST-T Unmanaged Ethernet Switches
MOXA EDS-2008-EL-M-ST-T Unmanaged Ethernet Switches
  • 7 x 10/100Mbps T(x) ports
  • 1 x 100BaseFX port (Multi-mode ST)
  • 5 KM Data transmission typical distance on fiber
  • DIN-rail and Wall mounting
  • IP40-rated metal housing
  • 12 to 48 VDC input power range
  • -40 to 75°C operating temperature
  • Brand: MOXA
  • Model: EDS-2008-EL-M-ST-T
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 75°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6)
  • Freefall (IEC 60068-2-32)
  • IP protection (IP40)
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA CM-600-2MSC/2TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-2MSC/2TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-2SSC/2TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-2SSC/2TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-3MSC/1TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-3MSC/1TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-3SSC/1TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-3SSC/1TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-4MSC Fast Ethernet Interface Module
Quickview
MOXA CM-600-4MSC Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-4MST Fast Ethernet Interface Module
Quickview
MOXA CM-600-4MST Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-4SSC Fast Ethernet Interface Module
Quickview
MOXA CM-600-4SSC Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-4TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-4TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Industrial Data Communications , Ethernet Switches , Unmanaged Switches , Unmanaged Ethernet Switches , Industrial Ethernet Switches , DIN-Rail Ethernet Switches , Switches , MOXA EDS-2008-EL Series

The EDS-2008-EL series of industrial Ethernet switches have up to eight 10/100M copper ports, which are ideal for applications that require simple industrial Ethernet connections. To provide greater versatility for use with applications from different industries, the EDS-2008-EL Series also allows users to enable or disable the Quality of Service (QoS) function and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-2008-EL Series has a rugged metal housing to ensure suitability for use in industrial environments, and fiber connections (Multi-mode SC or ST) can also be selected.

The EDS-2008-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size, the EDS-2008-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2008-EL Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.


You can also find the EDS-2008-EL and EDS-2008-EL-M-SC models in the DIN-Rail Ethernet Switches.


Inquire about the MOXA EDS-2008-EL-M-ST-T Unmanaged Ethernet Switches, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

switch and hub : Interface
Number of ports 8 Ports
10/100Mb RJ45 (Megabit) Ports Yes : 7 Ports
10/100/1000Mb RJ45 (Gigabit) Ports No
100Mb Fiber optic multi mode (Megabit) Ports Yes : 1 Port (ST connector)
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports No
switch and hub : Features and capabilities
Backup No
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current 0.105A @ 24 VDC
Power Input Plugin ( Redundant ) No
Input Voltage 12/24/48 VDC
Operating Voltage 9.6 to 60 VDC
Power Consumption -
switch and hub : General
Fan / Fanless Fanless
MTBF 3,329,688 hrs
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 1
Switch type Unmanaged
Port Aggregation No
switch and hub : Physical Characteristics
Dimensions 36 x 81 x 70.9 mm (1.4 x 3.19 x 2.79 in) (w/ connector)
Housing Metal
Installation DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature -40 to 75°C (-40 to 167°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications Safety: UL 61010-2-201, EN 62368-1; EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 22, 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Freefall: IEC 60068-2-32; Telcordia (Bellcore), GB
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 169 g (0.37 lb)
switch and hub : Standards and protocols
Protocols and work standards -
Protocols and management standards -
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
