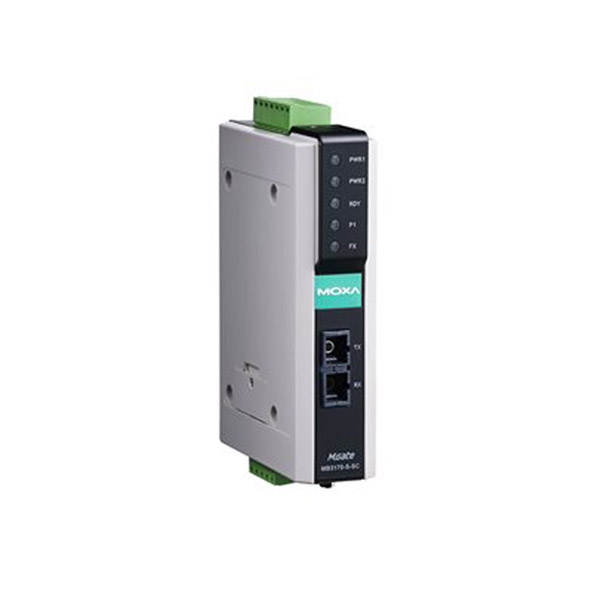

Name: MOXA MGate MB3170I-S-SC-T Industrial Ethernet Gateway
Brand: MOXA
Availability: InStock

MOXA MGate MB3170I-S-SC-T Industrial Ethernet Gateway

Serial to Ethernet Modbus Gateway
1 x 100BaseFX (single-mode SC connector)
1 x RS-232/422/485 Serial Port (DB9-M and TB connectors)
2 KV Isolation protection for serial ports
40 KM Typical data transmission distance on fiber
12 to 48 VDC Redundant dual power inputs
IP30-rated Plastic body design
-40 to 75°C operating temperature

Brand: MOXA
Model: MGate MB3170I-S-SC-T

0 reviews • Write a review

Datasheet

Operating Temperature (-40 to 75°C)
Relative Humidity (5 to 95% non-condensing)
Shock (IEC 60068-2-27)
IP protection (IP30)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6, IEC 60068-2-64)
Hazardous Location (Class 1 Division 2, ATEX, IECEx)

Oil & Gas
Marine
Factory Automation

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA MGate 4101-MB-PBS Industrial Ethernet Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate 4101-MB-PBS-T Industrial Ethernet Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate 4101I-MB-PBS Industrial Ethernet Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate 4101I-MB-PBS-T Industrial Ethernet Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate 5101-PBM-MN Industrial Ethernet Gateways

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate 5101-PBM-MN-T Industrial Ethernet Gateways

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate 5102-PBM-PN Industrial Ethernet Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate 5102-PBM-PN-T Industrial Ethernet Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Edge Connectivity , Protocol Gateways , Industrial Ethernet Gateways , Ethernet Gateways , Industrial Gateways , Modbus TCP Gateways , TCP Gateways , Industrial Data Communications , Factory Automation Products , Oil & Gas Products , Marine Products , Modbus Gateways , Modbus , Gateways , MOXA MGate MB3170/MB3270 Series

The MGate MB3170 and MB3270 are 1 and 2-port Modbus gateways, respectively, that convert between Modbus TCP, ASCII, and RTU communications protocols. The gateways provide both serial-to-Ethernet communication and serial (Master) to serial (slave) communications. In addition, the gateways support simultaneously connecting serial and Ethernet masters with serial Modbus devices. The MGate MB3170 and MB3270 series gateways can be accessed by up to 32 TCP master/clients or connect to up to 32 TCP slave/servers. Routing through the serial ports can be controlled by IP address, TCP port number, or ID mapping. A featured priority control function allows urgent commands to obtain an immediate response. All models are rugged, DIN-rail mountable, and offer optional built-in optical isolation for serial signals.

You can also find the MGate MB3170-M-SC-T, MGate MB3270I-T, and MGate MB3270 models in the Industrial Ethernet Gateways.

Enjoy the ease of online inquiries for the MOXA MGate MB3170I-S-SC-T Industrial Ethernet Gateway. You can submit your inquiry on our website and get the most friendly communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

industrial gateway : Interface
10/100Mb RJ45 (Megabit) Ports	No
Magnetic Isolation Protection	1.5 kV (built-in)
Other ports	Yes : 1 x 100BaseFX (single-mode SC connector)
Protocols	Ethernet: Modbus TCP Client (Master), Modbus TCP Server (Slave), Serial: Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave
industrial gateway : Serial port specifications
Number of Ports	1 Port
Console Port	No
Connectors	DB9 male for RS-232, Terminal block for RS-422/485
Serial Standards	RS-232/422/485
Isolation	Yes : 2 KV
industrial gateway : Serial Communication Parameters
Data Bits	7, 8
Stop Bits	1, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	DTR/DSR, RTS Toggle (RS-232 only), RTS/CTS
Baudrate	50 bps to 921.6 kbps
industrial gateway : Serial Signals
RS-232 Signals	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Signals	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Signals	Data+, Data-, GND
RS-485-4w Signals	Tx+, Tx-, Rx+, Rx-, GND
industrial gateway : General
Management	ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, NTP Client
MTBF	1,385,414 hrs
Industrial Gateway : Memory
microSD Slot	No
industrial gateway : Power Requirements
Input Current	555 mA @ 12 VDC
Input Voltage	12 to 48 VDC (Redundant dual power inputs)
Power Connector	7-pin terminal block
industrial gateway : Security
Security	Security Protocols: SNMPv3, HTTPS (TLS 1.2)
Authentication	Local database
Encryption	HTTPS, AES-128, AES-256, SHA-256
industrial gateway : Physical Characteristics
Dimensions	with ears: 29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in), without ears: 29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in)
Standards and Certifications	EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11; Hazardous Locations: ATEX, Class I Division 2, IECEx; Maritime: DNV; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; Safety: UL 60950-1, IEC 60950-1, EN 62368-1, UL 508; IP30; Telcordia SR332
Housing	Plastic
Operating Temperature	-40 to 75°C (-40 to 167°F)
Weight	360 g (0.79 lb)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Installation	DIN-rail mounting
