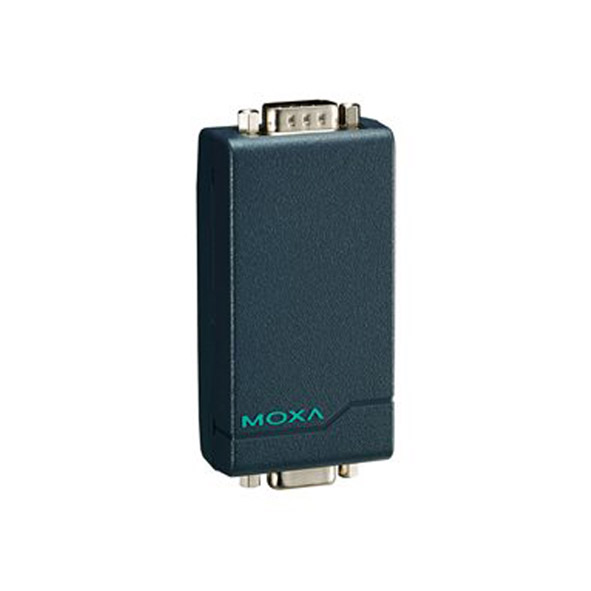

Name: MOXA TCC-82 RS-232 4-Channel Isolator
Brand: MOXA
Availability: InStock

MOXA TCC-82 RS-232 4-Channel Isolator

2 x RS-232 Serial Ports (DB9 male connector)
4 KV RMS isolation for 1 minute
5 to 12 VDC input power range
IP30-rated Plastic body design
Desktop installation
0 to 60°C operating temperature range

Brand: MOXA
Model: TCC-82

0 reviews • Write a review

Datasheet

Operating Temperature (0 to 60°C)
Relative Humidity (5 to 95% non-condensing)
IP protection (IP30)
Vibration (IEC 60068-2-6)

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA A52-DB25F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB25F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB9F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB9F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB25F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB25F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB9F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB9F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Edge Connectivity , Serial Converters , Serial-to-Serial Converters , Industrial Converters , Industrial Media Converters , Industrial Serial Connectivity , RS-232 to RS-422/485 Converters , RS-232 to RS-422 Converters , RS-232 to RS-485 Converters , Converters , MOXA TCC-82 Series

The TCC-82 provides full electrical isolation for bidirectional serial communication between two RS-232 devices in a compact, industrial-grade package. Both sides of an RS-232 connection are isolated optically to provide perfect protection against lightning surges, accidental high-voltage shorts, and ground loops. The built-in, wide-range isolators are tested to ensure that they can withstand more than 4 kV rms input to output for one minute. This means that the TCC-82 not only meets the requirements of general serial data communications but also the high standards required by industrial automation and medical applications. The TCC-82 protects the TxD and RxD data lines, and it also protects the RTS and CTS handshake lines for a total of four isolated channels to provide complete protection for your RS-232 applications.

You can also find the TCC-80, TCC-100, and TCC-120 models in the Industrial Media Converters.

Enjoy the ease of online inquiries for the MOXA TCC-82 RS-232 4-Channel Isolator. You can submit your inquiry on our website and get the most friendly communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

converter : Interface
100Mb Fiber optic single mode (Megabit) Ports	No
100Mb Fiber optic multi mode (Megabit) Ports	No
Serial port	Yes : 2 x RS-232 Ports (DB9 male connector)
USB	No
Other ports	No
Isolation	Yes : 4 KV
converter : Converter specifications
Data transfer speed ( Baudrate )	50 bps to 921.6 kbps (supports non-standard baudrates)
Maximum data transmission distance	-
Minimum output power converter	-
Sensitivity to receiving information	-
Wavelength	-
Require cable diameter	-
Flow Control	-
Protocols	-
converter : Serial Signals
RS-232 Signals	TxD, RxD, RTS, CTS, GND
RS-422 Signals	-
RS-485-2w Signals	-
RS-485-4w Signals	-
converter : Power Requirements
Power Consumption (Output Adapter)	-
Power Input Plugin ( Redundant )	No
Overload Current Protection	Supported
Reverse Polarity Protection	No
Input Voltage	5 to 12 VDC
Input Current	5 to 12 VDC, 20 mA (max.)
Connector	Power input jack
converter : General
Fan / Fanless	-
MTBF	959,780 hrs
converter : Physical Characteristics
Dimensions	42 x 80 x 23.6 mm (1.65 x 3.15 x 0.93 in)
Housing	Plastic
Installation	Desktop
Operating Temperature	0 to 60°C (32 to 140°F)
Operation Humidity	5% to %95 non-condensing
Standards and Certifications	EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class B; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Safety: UL 60950-1; Vibration: IEC 60068-2-6; IP30; MIL-HDBK-217F
Storage Temperature	-20 to 75°C (-4 to 167°F)
Weight	60 g (0.13 lb)
converter : LED Indicators
LED Per Port	No
Power	No
