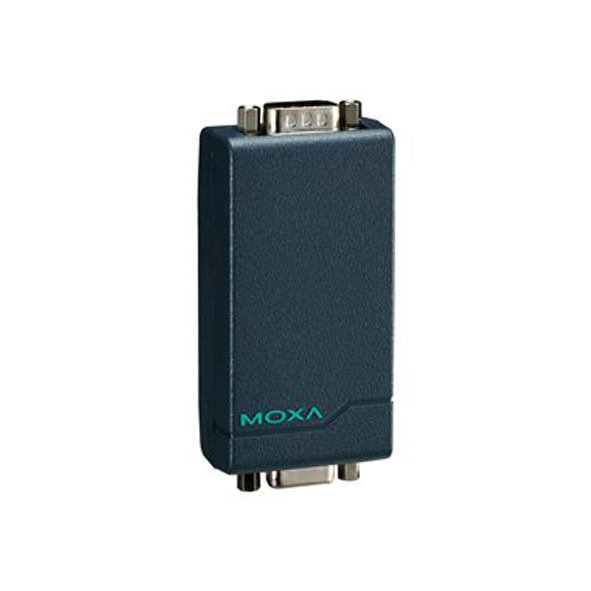

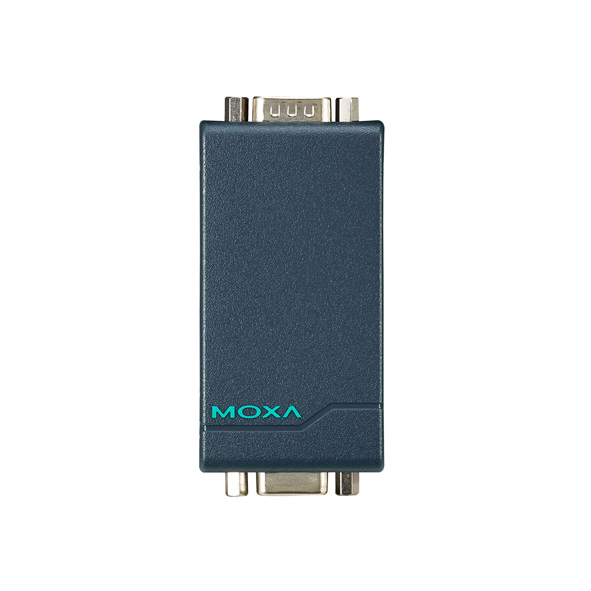

Name: MOXA TCC-80-DB9 RS-232 to RS-422/485 Converter
Brand: MOXA
Availability: OutOfStock

MOXA TCC-80-DB9 RS-232 to RS-422/485 Converter

2 x RS-232/422/485 Serial Ports (DB9 male connector)
5 to 12 VDC input power range
IP30-rated Plastic and Metal body design
Desktop installation
0 to 60°C operating temperature

Brand: MOXA
Model: TCC-80-DB9

0 reviews • Write a review

Datasheet

Operating Temperature (0 to 60°C)
Relative Humidity (5 to 95% non-condensing)
IP protection (IP30)
Vibration (IEC 60068-2-6)

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA A52-DB25F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB25F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB9F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB9F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB25F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB25F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB9F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB9F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Edge Connectivity , Serial Converters , Serial-to-Serial Converters , Industrial Serial Connectivity , Industrial Converters , Industrial Media Converters , RS-232 to RS-422/485 Converters , RS-232 to RS-422 Converters , RS-232 to RS-485 Converters , Converters , MOXA TCC-80/80I Series

The TCC-80/80I media converters provide complete signal conversion between RS-232 and RS-422/485, without requiring an external power source. The converters support both half-duplex 2-wire RS-485 and full-duplex 4-wire RS-422/485, either of which can be converted between RS-232’s TxD and RxD lines.

Automatic data direction control is provided for RS-485. In this case, the RS-485 driver is enabled automatically when the circuitry senses the TxD output from the RS-232 signal. This means that no programming effort is required to control the transmission direction of the RS-485 signal.

You can also find the TCC-80, TCC-80I, and TCC-80I-DB9 models in the Industrial Media Converters.

Explore our extensive range of industrial automation products such as MOXA TCC-80-DB9 RS-232 to RS-422/485 Converter in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Submit your inquiry to enjoy the on-time delivery service. Our sales experts will contact you to fulfill all your industrial automation needs.

converter : Interface
100Mb Fiber optic single mode (Megabit) Ports	No
100Mb Fiber optic multi mode (Megabit) Ports	No
Serial port	Yes : 2 x RS-232/422/485 Ports (DB9 male connector)
USB	No
Other ports	No
Isolation	No
converter : Converter specifications
Data transfer speed ( Baudrate )	300 bps to 115.2 kbps
Maximum data transmission distance	-
Minimum output power converter	-
Sensitivity to receiving information	-
Wavelength	-
Require cable diameter	-
Flow Control	-
Protocols	-
converter : Serial Signals
RS-232 Signals	TxD, RxD, GND
RS-422 Signals	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Signals	Data+, Data-, GND
RS-485-4w Signals	Tx+, Tx-, Rx+, Rx-, GND
converter : Power Requirements
Power Consumption (Output Adapter)	-
Power Input Plugin ( Redundant )	No
Overload Current Protection	Supported
Reverse Polarity Protection	No
Input Voltage	5 to 12 VDC
Input Current	30 mA @ 5 to 12 VDC
Connector	Power input jack
converter : General
Fan / Fanless	-
MTBF	2,781,161 hrs
converter : Physical Characteristics
Dimensions	42 x 91 x 23.6 mm (1.65 x 3.58 x 0.93 in)
Housing	Plastic top cover, metal bottom plate
Installation	Desktop
Operating Temperature	0 to 60°C (32 to 140°F)
Operation Humidity	5% to %95 non-condensing
Standards and Certifications	EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Safety: UL 60950-1; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB
Storage Temperature	-20 to 75°C (-4 to 167°F)
Weight	50 g (0.11 lb)
converter : LED Indicators
LED Per Port	No
Power	Yes
