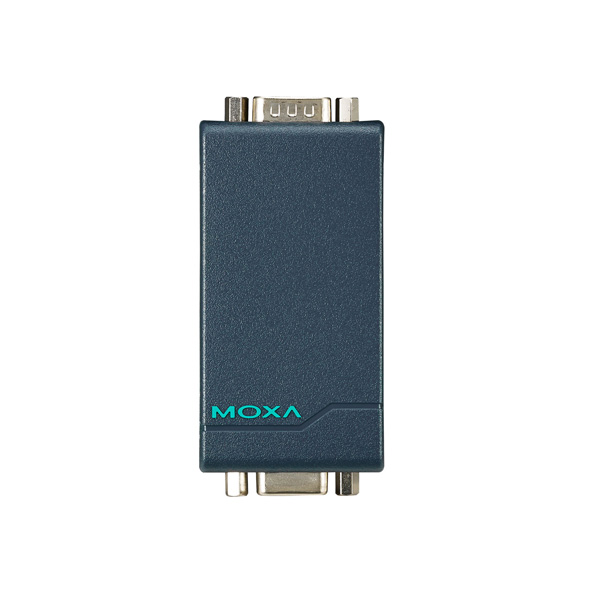

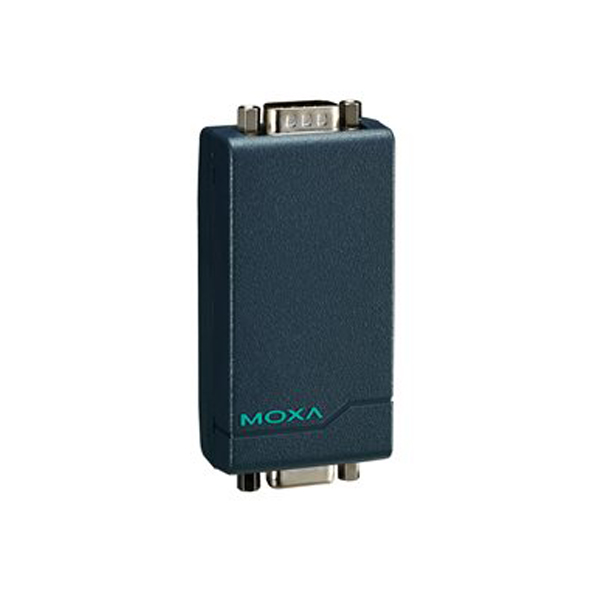

Name: MOXA TCC-80I-DB9 RS-232 to RS-422/485 Converter
Brand: MOXA
Availability: OutOfStock

MOXA TCC-80I-DB9 RS-232 to RS-422/485 Converter

2 x RS-232/422/485 Serial Ports (DB9 male connector)
2 KV Isolation protection for serial ports
5 to 12 VDC input power range
IP30-rated Plastic and Metal body design
Desktop installation
0 to 60°C operating temperature

Brand: MOXA
Model: TCC-80I-DB9

0 reviews • Write a review

Datasheet

Operating Temperature (0 to 60°C)
Relative Humidity (5 to 95% non-condensing)
IP protection (IP30)
Vibration (IEC 60068-2-6)

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA A52-DB25F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB25F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB9F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB9F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB25F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB25F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB9F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB9F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Edge Connectivity , Serial Converters , Serial-to-Serial Converters , Industrial Serial Connectivity , Industrial Converters , Industrial Media Converters , RS-232 to RS-422/485 Converters , RS-232 to RS-422 Converters , RS-232 to RS-485 Converters , Converters , MOXA TCC-80/80I Series

The TCC-80/80I media converters provide complete signal conversion between RS-232 and RS-422/485, without requiring an external power source. The converters support both half-duplex 2-wire RS-485 and full-duplex 4-wire RS-422/485, either of which can be converted between RS-232’s TxD and RxD lines.

Automatic data direction control is provided for RS-485. In this case, the RS-485 driver is enabled automatically when the circuitry senses the TxD output from the RS-232 signal. This means that no programming effort is required to control the transmission direction of the RS-485 signal.

You can also find the TCC-80-DB9 model in the Industrial Media Converters.

You can explore our wide range of products and enquire about the MOXA TCC-80I-DB9 RS-232 to RS-422/485 Converter for your industrial automation needs. Our sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the Middle East.

converter : Interface
100Mb Fiber optic single mode (Megabit) Ports	No
100Mb Fiber optic multi mode (Megabit) Ports	No
Serial port	Yes : 2 x RS-232/422/485 Ports (DB9 male connector)
USB	No
Other ports	No
Isolation	Yes : 2 KV
converter : Converter specifications
Data transfer speed ( Baudrate )	300 bps to 115.2 kbps
Maximum data transmission distance	-
Minimum output power converter	-
Sensitivity to receiving information	-
Wavelength	-
Require cable diameter	-
Flow Control	-
Protocols	-
converter : Serial Signals
RS-232 Signals	TxD, RxD, GND
RS-422 Signals	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Signals	Data+, Data-, GND
RS-485-4w Signals	Tx+, Tx-, Rx+, Rx-, GND
converter : Power Requirements
Power Consumption (Output Adapter)	-
Power Input Plugin ( Redundant )	No
Overload Current Protection	Supported
Reverse Polarity Protection	No
Input Voltage	5 to 12 VDC
Input Current	20 mA @ 5 to 12 VDC
Connector	Power input jack
converter : General
Fan / Fanless	-
MTBF	2,781,161 hrs
converter : Physical Characteristics
Dimensions	42 x 91 x 23.6 mm (1.65 x 3.58 x 0.93 in)
Housing	Plastic top cover, metal bottom plate
Installation	Desktop
Operating Temperature	0 to 60°C (32 to 140°F)
Operation Humidity	5% to %95 non-condensing
Standards and Certifications	EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Safety: UL 60950-1; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB
Storage Temperature	-20 to 75°C (-4 to 167°F)
Weight	50 g (0.11 lb)
converter : LED Indicators
LED Per Port	No
Power	Yes
