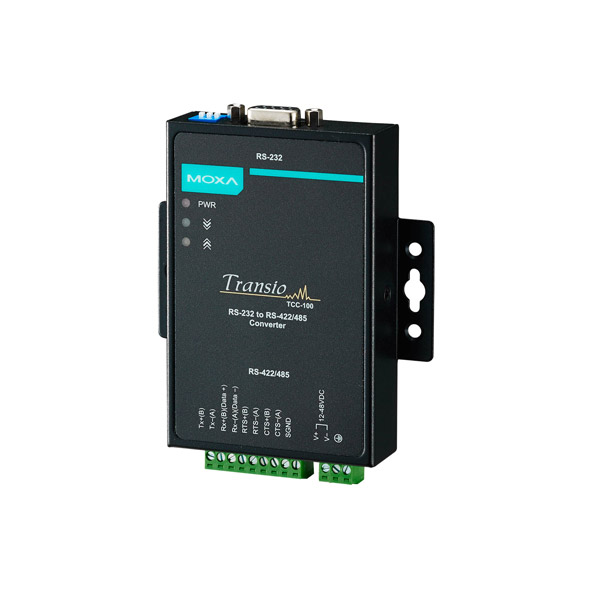

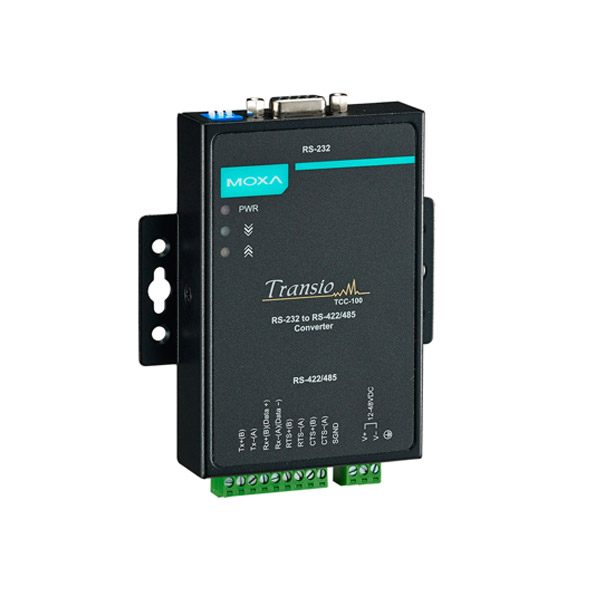

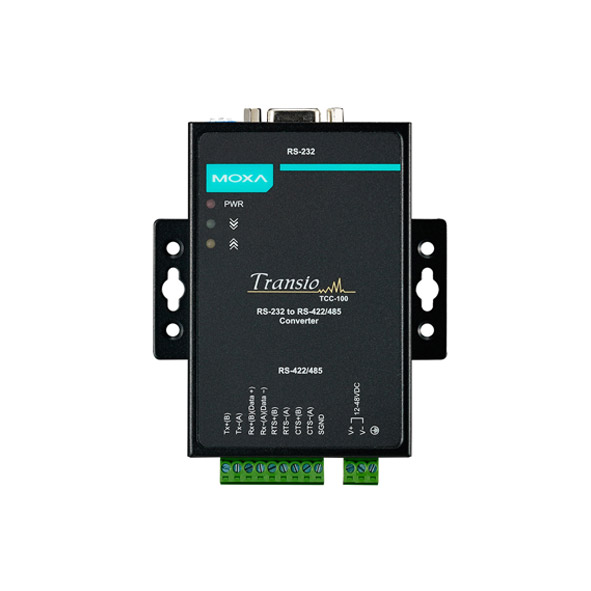

Name: MOXA TCC-100-T RS-232 to RS-422/485 Converter
Brand: MOXA
Availability: OutOfStock

MOXA TCC-100-T RS-232 to RS-422/485 Converter

2 x RS-232/422/485 Serial Ports (Terminal block connector)
12 to 48 VDC input power range
IP30-rated Metal body design
DIN-rail and Wall mounting
-40 to 85°C operating temperature

Brand: MOXA
Model: TCC-100-T

0 reviews • Write a review

Datasheet User Guide

Operating Temperature (-40 to 85°C)
Relative Humidity (5 to 95% non-condensing)
IP protection (IP30)
Vibration (IEC 60068-2-6)

Road Transportation

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA A52-DB25F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB25F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB9F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB9F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB25F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB25F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB9F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB9F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Edge Connectivity , Serial Converters , Serial-to-Serial Converters , Industrial Serial Connectivity , Industrial Converters , Industrial Media Converters , RS-232 to RS-422/485 Converters , RS-232 to RS-422 Converters , RS-232 to RS-485 Converters , Converters , Road Transportation Products , MOXA TCC-100/100I Series

The TCC-100/100I Series of RS-232 to RS-422/485 converters increases networking capability by extending the RS-232 transmission distance. Both converters have a superior industrial-grade design that includes DIN-rail mounting, terminal block wiring, an external terminal block for power, and optical isolation (TCC-100I and TCC-100I-T only). The TCC-100/100I Series converters are ideal solutions for converting RS-232 signals to RS422/485 in critical industrial environments.

You can also find the TCC-100, TCC-100I, and TCC-100I-T models in the Industrial Media Converters.

Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA TCC-100-T RS-232 to RS-422/485 Converter through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

converter : Interface
100Mb Fiber optic single mode (Megabit) Ports	No
100Mb Fiber optic multi mode (Megabit) Ports	No
Serial port	Yes : 2 x RS-232/422/485 Ports (Terminal block connector)
USB	No
Other ports	No
Isolation	No
converter : Converter specifications
Data transfer speed ( Baudrate )	50 bps to 921.6 kbps (supports non-standard baudrates)
Maximum data transmission distance	-
Minimum output power converter	-
Sensitivity to receiving information	-
Wavelength	-
Require cable diameter	-
Flow Control	-
Protocols	-
converter : Serial Signals
RS-232 Signals	TxD, RxD, RTS, CTS, GND
RS-422 Signals	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Signals	Data+, Data-, GND
RS-485-4w Signals	Tx+, Tx-, Rx+, Rx-, GND
converter : Power Requirements
Power Consumption (Output Adapter)	-
Power Input Plugin ( Redundant )	No
Overload Current Protection	Supported
Reverse Polarity Protection	No
Input Voltage	12 to 48 VDC
Input Current	50 to 85 mA @ 12 to 48 VDC
Connector	Terminal block
converter : General
Fan / Fanless	-
MTBF	3,017,857 hrs
converter : Physical Characteristics
Dimensions	67 x 100.4 x 22 mm (2.64 x 3.93 x 0.87 in)
Housing	Metal
Installation	DIN-rail mounting (with optional kit), Wall mounting
Operating Temperature	-40 to 85°C (-40 to 185°F)
Operation Humidity	5% to %95 non-condensing
Standards and Certifications	EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Safety: UL 60950-1; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB
Storage Temperature	-40 to 85°C (-40 to 185°F)
Weight	148 g (0.33 lb)
converter : LED Indicators
LED Per Port	Yes
Power	Yes
