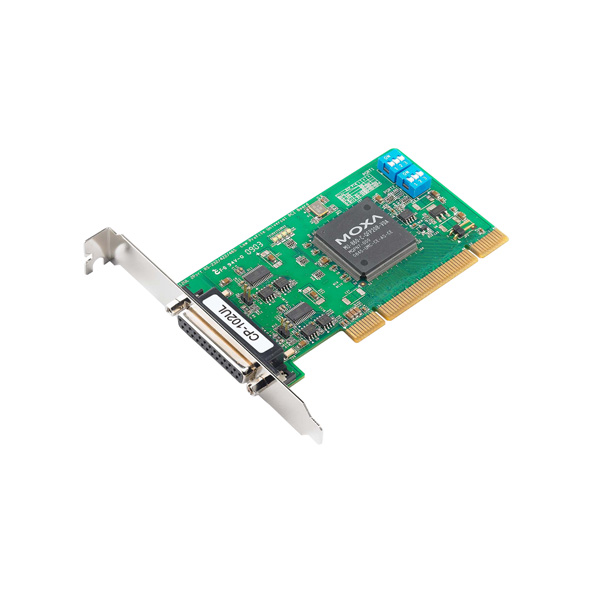

Name: MOXA CP-112UL-T UPCI Serial Board
Brand: MOXA
Availability: InStock

MOXA CP-112UL-T UPCI Serial Board

2 x RS-232/422/485 Serial Ports (DB25 female connector)
Supports maximum 921.6 kbps baud rate
128-byte FIFO and on-chip H/W, S/W flow control
Compatible Driver with Windows, Linux, and UNIX
-40 to 85°C Operating Temperature

Brand: MOXA
Model: CP-112UL-T

0 reviews • Write a review

Datasheet

Operating Temperature (-40 to 85°C)
Relative Humidity (5 to 95% non-condensing)

Factory Automation

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA A52-DB25F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB25F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB9F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB9F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB25F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB25F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB9F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB9F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Edge Connectivity , Industrial Serial Connectivity , Multiport Serial Boards , PCIe/UPCI/PCI Serial Cards , Serial Cards , Serial Boards , PCIe/UPCI/PCI , PCIe/UPCI/PCI Boards , Industrial Converters , PCI Multiport Serial Cards , Factory Automation Products , Converters , MOXA CP-112UL Series

Moxa’s CP-112UL Series of multiport serial boards are designed to be used by industrial automation system integrators for long-distance, multi-point, PC-based data acquisition applications. On-chip Automatic Data Direction Control for precision RS-485 communication requires precise timing control for enabling and disabling the line driver. Moxa’s Turbo Serial Engine™ chip that powers the CP-112UL boards comes with on-chip ADDC®, which makes RS-485 as easy to use as RS-232. The boards come with 2 RS-422/485 serial ports, both of which can achieve data rates up to 921.6 kbps. In RS-485 mode, the serial port can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km. For long-distance RS-485 communication, 2 kV electrical isolation protection is available to prevent equipment damage.

You can also find the CP-112UL-I-DB9M, CP-112UL-I-T, and CP-112UL-DB9M models in the Multiport Serial Cards.

You can explore our wide range of products and enquire about the MOXA CP-112UL-T UPCI Serial Board for your industrial automation needs. Our sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the Middle East.

MULTIPORT SERIAL BOARDS : SERIAL INTERFACE
Comm. Controller	MU860 (16C550C compatible)
Number of Ports	2
Bus interface	32-bit Universal PCI
Serial Standards	RS-232, RS-422, RS-485
Connector	DB25 female
Baudrate	50 bps to 921.6 kbps
Max. No. of Boards per PC	8
Stop Bits	-
Parity	Even, Odd, Space, Mark, None
Flow Control	RTS/CTS, XON/XOFF, None
Data Bits	5, 6, 7, 8
FIFO	128 bytes
Isolation	No
MULTIPORT SERIAL BOARDS : SERIAL SIGNALS
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
MULTIPORT SERIAL BOARDS : SERIAL SOFTWARE FEATURES
Windows Drivers	DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers	Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
UNIX Drivers	QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD
MULTIPORT SERIAL BOARDS : POWER REQUIREMENTS
Input Current	175 mA @ 5 VDC
Input Voltage	-
MULTIPORT SERIAL BOARDS : GENERAL
MTBF	219,971 hrs
LED Indicators	Built-in Tx, Rx LEDs for each port
MULTIPORT SERIAL BOARDS : PHYSICAL CHARACTERISTICS
Dimensions	64.4 x 120 mm (2.53 x 4.72 in)
Operating Temperature	-40 to 85°C (-40 to 185°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operation Humidity	5 to 95% (non-condensing)
Standards and Certifications	EMC: EN 55032/35; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard TR/SR
