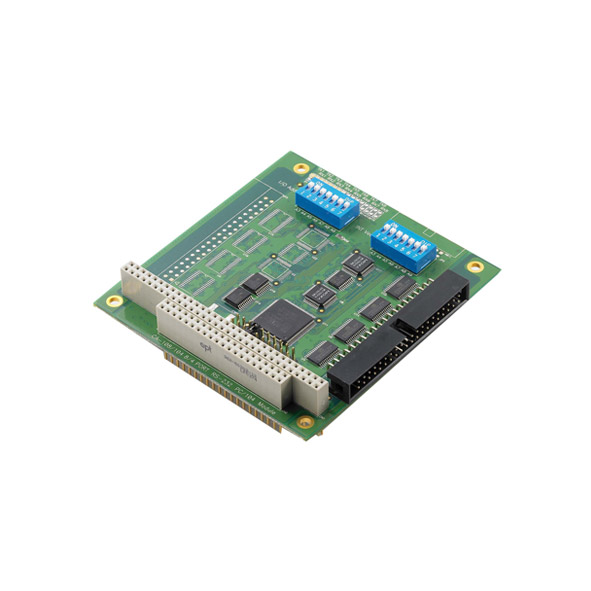

Name: MOXA CA-108-T Serial Module Board
Brand: MOXA
Availability: InStock

MOXA CA-108-T Serial Module Board

8 x RS-232 Serial ports (40-pin box header connector)
Supports maximum 921.6 kbps baud rate
IRQ and I/O settings are jumper and DIP switch selectable
Compatible Drivers with Windows, Linux, and UNIX
5 VDC input power range
-40 to 85°C operating temperature

Brand: MOXA
Model: CA-108-T

0 reviews • Write a review

Datasheet

Operating Temperature (-40 to 85°C)
Relative Humidity (5 to 95% non-condensing)
Vibration (IEC 60068-2-6)

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA A52-DB25F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB25F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB9F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB9F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB25F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB25F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB9F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB9F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Edge Connectivity , Industrial Serial Connectivity , Multiport Serial Boards , Industrial Converters , PCI Multiport Serial Cards , Serial Boards , PCI boards , Multiport Serial Cards , Converters , Modules , PC/104 Serial Boards , PC/104 Modules , MOXA CA-108 Series

The CA-108 PC/104 modules are reliable, high-performance, multiport serial communication solutions that have 8 RS-232 ports and can be used with PC/104 CPU boards that accept the PC/104 expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and versatile driver support makes the modules suitable for a wide range of applications.

You can also find the CA-108 model in the Multiport Serial Cards.

Inquire about the MOXA CA-108-T Serial Module Board, designed for industrial automation solutions. Feel free and get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

MULTIPORT SERIAL BOARDS : SERIAL INTERFACE
Comm. Controller	16C550C or compatible x 4
Number of Ports	8 Ports
Bus interface	PC/104 bus
Serial Standards	RS-232
Connector	40-pin box header
Baudrate	50 bps to 921.6 kbps
Max. No. of Boards per PC	8
Stop Bits	1, 1.5, 2
Parity	Even, Odd, Space, Mark, None
Flow Control	RTS/CTS, XON/XOFF, None
Data Bits	5, 6, 7, 8
FIFO	64 bytes
Isolation	No
MULTIPORT SERIAL BOARDS : SERIAL SIGNALS
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	-
RS-485-4w	-
RS-485-2w	-
MULTIPORT SERIAL BOARDS : SERIAL SOFTWARE FEATURES
Windows Drivers	DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers	Linux kernel 2.4.x, Linux kernel 2.6.x
UNIX Drivers	FreeBSD 4.x, QNX 4
MULTIPORT SERIAL BOARDS : POWER REQUIREMENTS
Input Current	210 mA @ 5 VDC
Input Voltage	5 VDC
MULTIPORT SERIAL BOARDS : GENERAL
MTBF	897,459 hrs
LED Indicators	Built-in Tx, Rx LEDs for each port
MULTIPORT SERIAL BOARDS : PHYSICAL CHARACTERISTICS
Dimensions	90 x 96 mm (3.54 x 3.78 in)
Operating Temperature	-40 to 85°C (-40 to 185°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operation Humidity	5 to 95% (non-condensing)
Standards and Certifications	EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 0.5 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-3; Vibration: IEC 60068-2-6, IEC 61000-4-11; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore), GB
