Description
The IM Module Series has been designed for Moxa's EDS-728 Series and EDS-828 Series modular switches. The IM Module Series includes 6 Fast Ethernet modules, each with 4 ports supporting the TX, MSC, SSC, and MST media types. In addition, the IM Module Series includes 2 Gigabit Ethernet modules, one with 2 copper ports, and one with 2 fiber ports. Multiple modules can be used with the EDS-728 and EDS-828 switches, allowing each switch to support up to 24 Fast Ethernet ports and 4 Gigabit Ethernet ports.
End of Life Product - Replacement Available
Please note that the IM Module Series has been phased out and replaced by the LM-7000H Series.

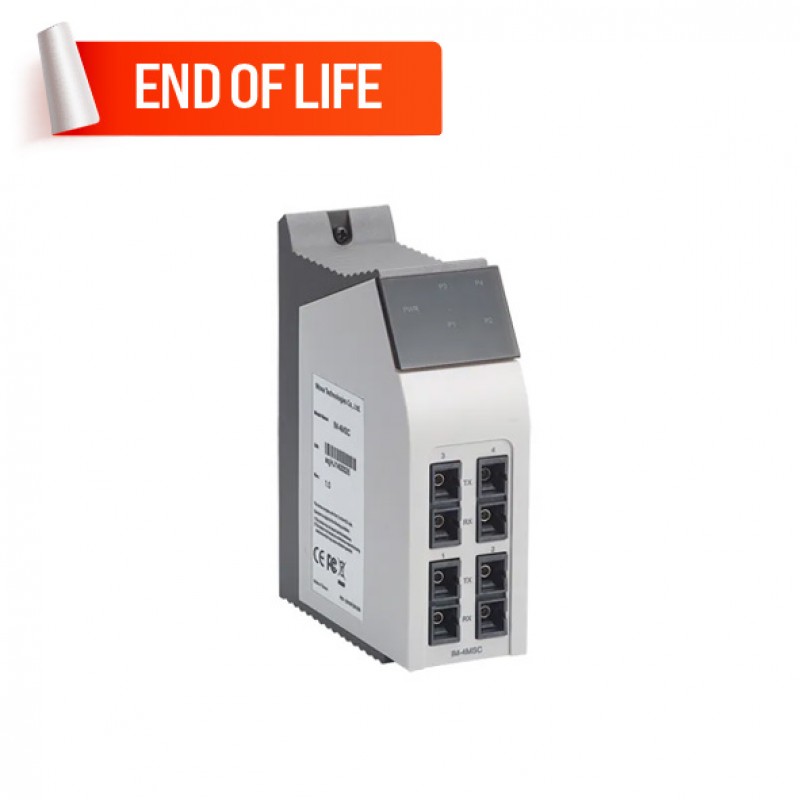

Inquire about the MOXA IM-4SSC Fast Ethernet Module, designed for industrial automation
solutions. Feel free to get in touch with our sales team to give you the best
solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al
Khobar, Riyadh), and Oman).
Specification
| INTERFACE | |
|---|---|
| Ports | 4 x 100BaseFX Ports (single-mode) |
| Connector | SC |
| Typical Distance | 40 KM on fiber |
| POWER REQUIREMENTS | |
| Power Information | Power Consumption: 6.6 W (max.) |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 40 x 127.8 x 100 mm (1.57 x 5.03 x 3.94 in) |
| Weight | 270 g (0.6 lb) |
| Operating Temperature | - |
| Storage Temperature | - |
| Ambient Relative Humidity | - |
| Standards and Certifications | Telcordia (Bellcore), GB |
| MTBF | - |
