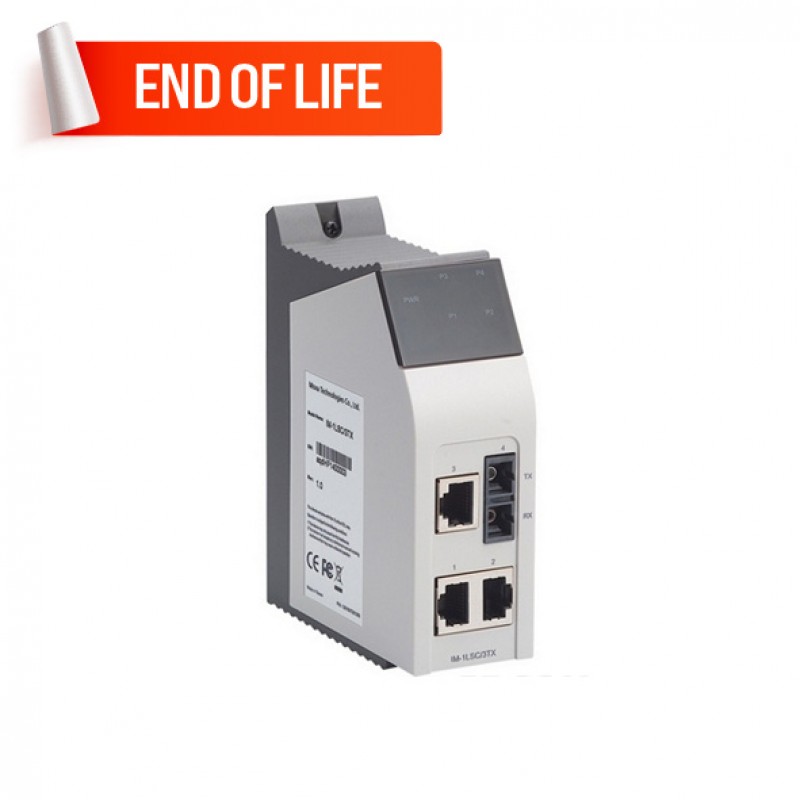

MOXA IM-1LSC/3TX Fast Ethernet Module
- 3 x 10/100Mbps T(x) ports with RJ45 connector and 1 x 100Mbps F(x) Single-mode module with SC connector, 80km
- Modular design lets you choose from a variety of media combinations
- Modular design makes port expansion easy
.png)
Description
The IM Module Series has been designed for Moxa's EDS-728
Series and EDS-828 Series modular switches. The IM Module Series includes 6
Fast Ethernet modules, each with 4 ports supporting the TX, MSC, SSC, and MST
media types. In addition, the IM Module Series includes 2 Gigabit Ethernet
modules, one with 2 copper ports, and one with 2 fiber ports. Multiple modules
can be used with the EDS-728 and EDS-828 switches, allowing each switch to
support up to 24 Fast Ethernet ports and 4 Gigabit Ethernet ports.
You can Buy the MOXA IM-1LSC/3TX Fast Ethernet Module and all the MOXA Ethernet SFP Modules via inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific time in your location.
Specification
| Interface | |
|---|---|
| 10/100/1000BaseT(X) Ports | - |
| 10/100Mb RJ45 (Megabit) Ports | 3 |
| 100Mb Fiber optic multi mode (Megabit) Ports | - |
| 100Mb Fiber optic single mode (Megabit) Ports | 1 SC Connector |
| 1000Mb SFP Fiber optic (Gigabit) Ports | - |
| LED Indicators | Fast Ethernet Modules: PWR, P1, P2, P3, P4 port status |
| Power Requirements | |
| Power Consumption | 2.12 W (max.) |
| Physical Characteristics | |
| Dimensions | 40 x 127.8 x 100 mm (1.57 x 5.03 x 3.94 in) |
| Housing | IP30 |
| Standards and Certifications | Telcordia (Bellcore), GB |
| Weight | 235 g (0.52 lb) |
