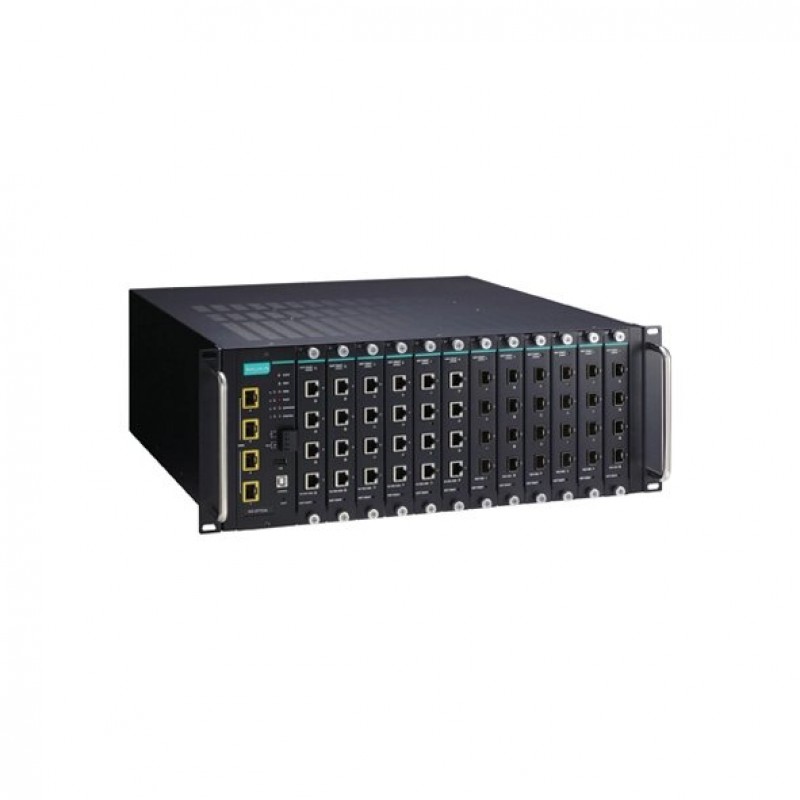

MOXA ICS-G7752A-4XG-HV-HV Rackmount Ethernet Switches
- Modular Managed Ethernet Switch
- 4 x 10GbE SFP+ Slots
- 12 x Slots for 4-port GE interface modules
- 110 to 220 VAC Redundant dual inputs
- Rackmount installation
- -10 to 60°C operating temperature range
.png)
Description
Process automation and transportation automation
applications combine data, voice, and video, and consequently require high
performance and high reliability. The ICS-G7752A Series full Gigabit backbone
switches’ modular design makes network planning easy and allows greater
flexibility by letting you install up to 48 Gigabit Ethernet ports plus 4 10
Gigabit Ethernet ports.
The ICS-G7752A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The fanless switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.
You can also find the ICS-G7748A-HV-HV and ICS-G7750A-2XG-HV-HV in the Rackmount Ethernet Switches.
Explore our extensive range of industrial automation products such as MOXA ICS-G7752A-4XG-HV-HV Rackmount Ethernet Switches in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Submit your inquiry to enjoy the on-time delivery service. Our sales experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| Number of ports | 52 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | Up to 48 Ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | Up to 48 Slots |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | Up to 48 Ports (with IM-G7000A-4PoE module) |
| Other ports | : 4 x 10GbE SFP+ Slots, 12 x Slots for 4-port GE interface modules, 1 x Alarm Contact Channel, 1 x Digital Input (+13 to +30 V for state 1, -30 to +1 V for state 0, Max. input current: 8 mA), 1 x USB Port (Type A connector), 1 x Console Port (Type B connector) |
| Features and capabilities | |
| Backup | : ABC-02 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 1.31/0.83 A @ 110/220 VAC, Note: These are the input current ratings for the device with the maximum number of modules installed. |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 110/220 VAC |
| Operating Voltage | 85 to 264 VAC |
| Power Consumption | 120.38/138.34 W @ 110/220 VAC, Note: These are the power consumption ratings for the device with the maximum number of modules installed. |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 274,488 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 440 x 176 x 523.8 mm (17.32 x 6.93 x 20.62 in) |
| Housing | - |
| Installation | Rack Mounting |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety: EN 61010-2-201, UL 61010-2-201; EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Railway: EN 50121-4; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 12,900 g (28.5 lb) |
| Standards and protocols | |
| Protocols and work standards | Link Aggregation, MRP, MSTP, RSTP, Turbo Chain, Turbo Ring v1/v2, V-ON, EtherNet/IP, Modbus TCP |
| Protocols and management standards | ARP, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SCP, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, 802.1Q, BPDU Filter, BPDU Guard, GMRP, GVRP, IGMP v1/v2/v3 |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
