Description

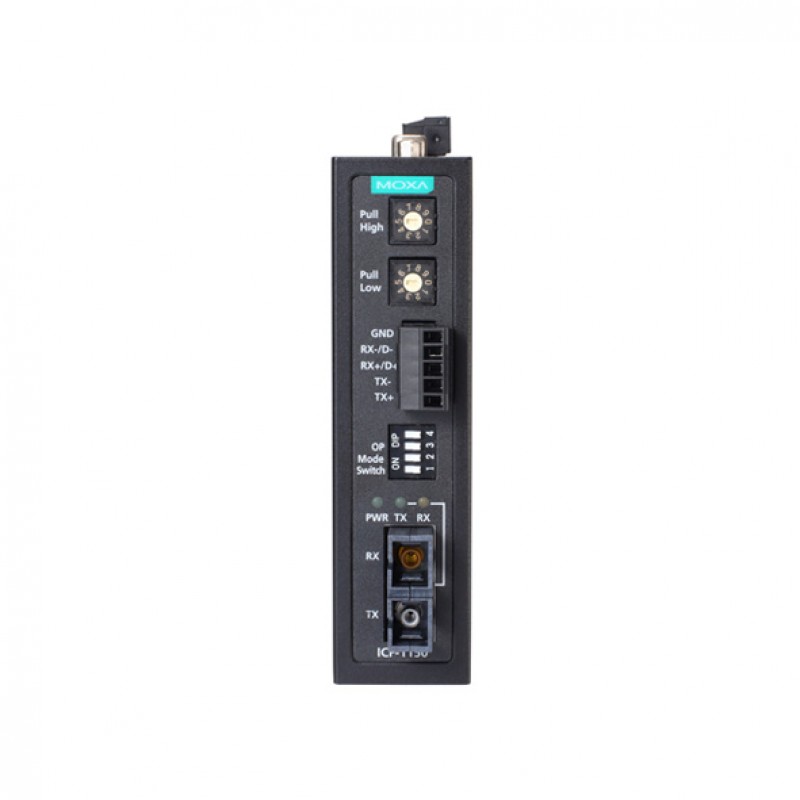

The ICF-1150 serial-to-fiber converters transfer
RS-232/RS-422/RS-485 signals to optical fiber ports to enhance transmission
distance. When an ICF-1150 device receives data from any serial port, it sends
the data through the optical fiber ports. These products not only support
single-mode and multi-mode fiber for different transmission distances, but
models with isolation protection are also available to enhance noise immunity.
The ICF-1150 products feature Three-Way Communication and a Rotary Switch for
setting the pull high/low resistor for onsite installation.
Three-Way Communication
The ICF-1150 Series supports 2 serial ports, with a DB9
connector for RS-232 communication and a removable terminal block for RS-422 or
RS-485 communication. The 3 ports (2 serial ports and one fiber port) are
completely independent. When an ICF-1150 converter receives data from any one
port, it will send the data through the other 2 ports. For example, once the
ICF-1150 converter receives a command from the remote master through the fiber
port, it will convert the signal and send the command through the RS-232 and
RS-422/485 ports at the same time. If the user is monitoring a system running
on an RS-485 network, there is no need to use an additional RS-232 to RS-485
converter to connect the laptop computer’s serial port to the RS-485 bus.
Rotary Switch for Setting the Pull High/Low Resistor
The RS-485 interface supports multidrop or daisy-chain
connections, which system engineers will use to connect serial devices such as
meters, RTUs, and readers, together on the same bus. Since the number of serial
devices on the same bus will cause the impedance of the data line to increase,
the ICF-1150 allows users to tune the pull high/low resistor. Just rotate the
switch to the appropriate value without removing the ICF-1150 from the DIN
rail.
You can also find the ICF-1150-S-ST-T-IEX and ICF-1150-S-ST models in the Industrial Media Converters.
Experience the convenient way to purchase the MOXA ICF-1150-S-ST-IEX Serial to Fiber Converter in the
Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts
will provide the most helpful information about the price and sale conditions
for a wonderful buying experience.
Specification
| Converter specifications | |
|---|---|
| Data transfer speed | 0.05Kbps to 921.6Kbps |
| Maximum data transmission distance | 921.6Km |
| Minimum output power converter | -5dBm |
| Sensitivity to receiving information | -25dBm |
| Wavelength | 1310nm |
| Power Requirements | |
| Maximum power consumption | - |
| Power Consumption (Output Adapter) | 12V DC, 0.127A to 48V DC |
| Power Input Plugin ( Redundant ) | |
| Standards and protocols | |
| Point-to-point topology | Half-duplex or full-duplex |
| Ring topology | Half-duplex |
| RS-232 Signals | TxD, RxD, GND |
| RS-422 Signals | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w Signals | Data+, Data-, GND |
| Interface | |
| 10/100Mb RJ45 (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | : 1 ST Port |
| 10/100/1000Mb (Gigabit) POE Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| Number of 10/100Mb PoE port | |
| USB | |
| DSL | |
| Serial port | : 2 RS-232/422/485 Ports |
| Other ports | |
| General | |
| Fan / Fanless | |
| MTBF | 792,085 hour |
| Require cable diameter | G.652 |
| Physical Characteristics | |
| Housing | Metal |
| Installation | Din-rail |
| Isolation | |
| Operating Temperature | 0 to 60 ° C |
| Operation Humidity | 5% to %95 non-condensing |
| Protection against excessive consumption | : 1.1A |
| Protection against reverse flow | |
| Standards and Certifications | Safety: UL 508; Hazardous Location: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX, Zone 2 EEx nC IIC, IECEx; EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class B; EMS: EN 61000-4-2 (ESD): Contact: 8 kV; Air: 15 kV, EN 61000-4-3 (RS): 80 MHz to 1 GHz: 3 V/m, EN 61000-4-4 (EFT): Power: 4 kV; Signal: 2 kV, EN 61000-4-5 (Surge): Power: 4 kV; Signal: 0.5 kV, EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m, EN 61000-4-8 (PFMF); Green Product: RoHS, CRoHS, WEEE; Freefall: IEC 60068-2-32; Water and Dust Proof: IP30 |
| Storage Temperature | -40 to 85 ° C |
| Weight | 330 g (0.73 lb) |
| LED Indicators | |
| Power | |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
