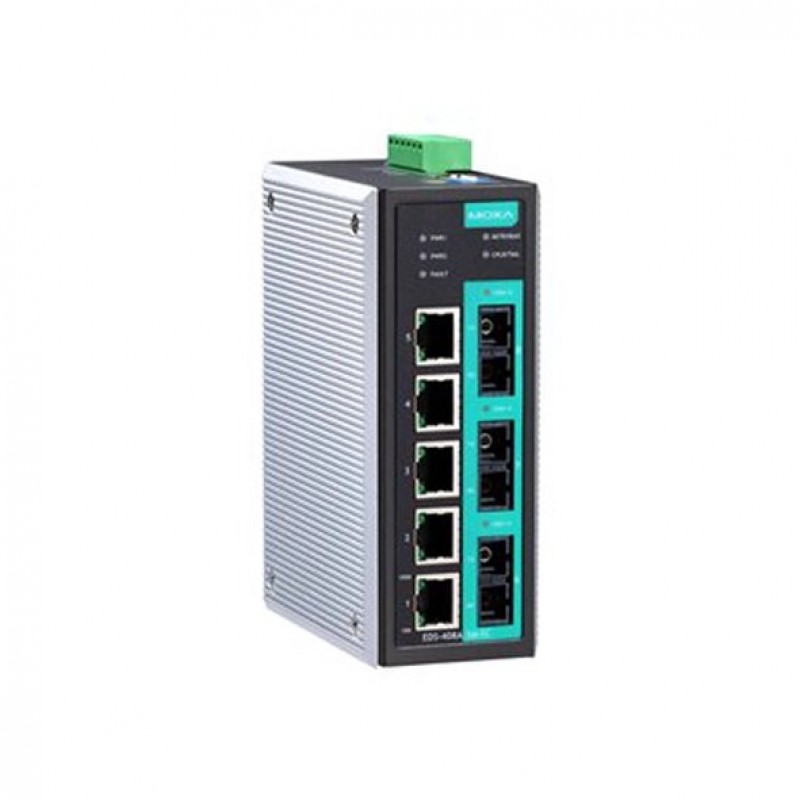

MOXA EDS-408A-1M2S-SC-T Managed Ethernet Switches
- 5 x 10/100BaseT(X) Ports (RJ45 connector)
- 1 x 100BaseFX Ports (multi-mode SC connector)
- 2 x 100BaseFX Ports (single-mode SC connector)
- 5 KM (multi-mode) and 40 KM (single-mode) typical distance on fiber
- 12/24/48 VDC Redundant dual power inputs
- Din-rail and Wall mounting
- IP30-rated Metal body design
-40 to 75°C operating temperature
- Brand: MOXA
- Product Code: EDS-408A-1M2S-SC-T
.png)
Description
The EDS-408A Series is designed especially for industrial applications. The switches support a variety of useful management functions, such as Turbo Ring, Turbo Chain, ring coupling, IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The ready-to-use Turbo Ring can be set up easily using the web-based management interface, or with the DIP switches located on the top panel of the EDS-408A switches.
You can also find the EDS-408A-3S-SC-48, EDS-408A-MM-SC-T, and EDS-408A-MM-SC models in the DIN-Rail Ethernet Switches.
Discover industrial automation
solutions appropriate to your needs, and easily
inquire about the MOXA EDS-408A-1M2S-SC-T Managed Ethernet Switches through our user-friendly website via one of our Middle
East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 8 Ports |
| 10/100Mb RJ45 (Megabit) Ports | : 5 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | : 1 SC Port |
| 100Mb Fiber optic single mode (Megabit) Ports | : 2 SC Port |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 1 x RS-232 Console Port, 1 x Alarm Contact Channel |
| Features and capabilities | |
| Backup | : ABC-01 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 0.73 @ 12 VDC, 0.35 @ 24 VDC, 0.18 @ 48 VDC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 12/24/48 VDC |
| Operating Voltage | 9.6 to 60 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 1,253,072 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) |
| Housing | Metal |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety: UL 508EMC: EN 55032/35, EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Railway: EN 50121-4; Vibration: IEC 60068-2-6, Shock: IEC 60068-2-27; Freefall: IEC 60068-2-31; Maritime: DNV, NK, LR; IP30; Telcordia (Bellcore), GB |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 890 g (1.97 lb) |
| Standards and protocols | |
| Protocols and work standards | EtherNet/IP, Modbus TCP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2 |
| Protocols and management standards | Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP; 802.1Q VLAN, GMRP, GVRP, IGMP v1/v2, Port-based VLAN |
