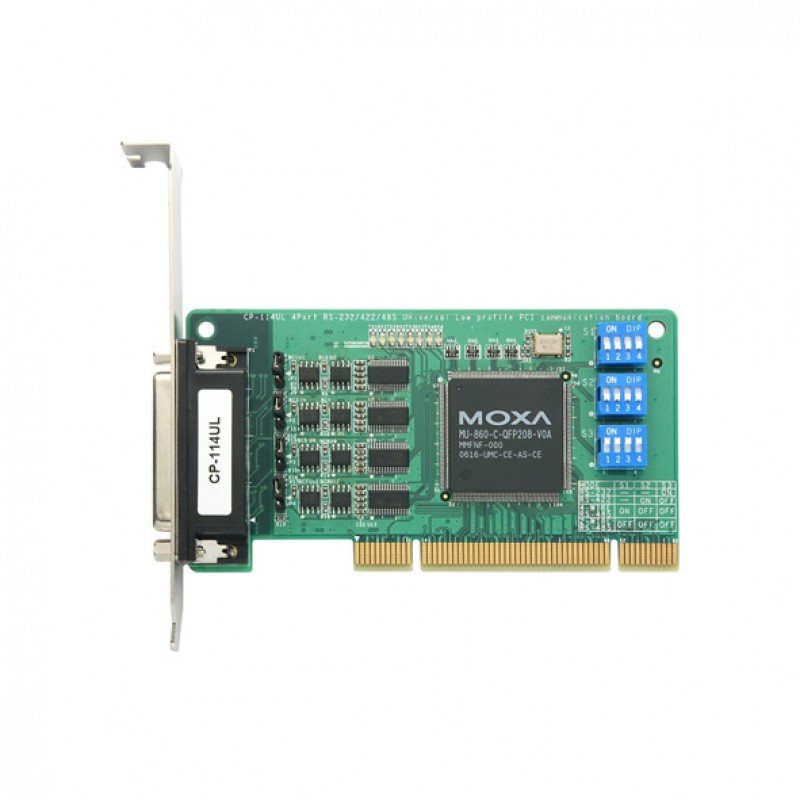

MOXA CP-114UL-DB9M UPCI Serial Board
- 4 x RS-232/422/485 Serial Ports (DB44 female connector)
- Supports maximum 921.6 kbps baud rate
- 128-byte FIFO and on-chip H/W, S/W flow control
- Compatible Driver with Windows, Linux, and UNIX
- Included Cable: CBL-M44M9x4-50
- 0 to 55°C Operating Temperature
Description
Moxa’s CP-114UL Series of multiport serial boards is
designed to be used by industrial automation system integrators for
long-distance, multi-point, PC-based data acquisition applications. On-chip
Automatic Data Direction Control for precision RS-485 communication requires
precise timing control to enable and disable the line driver. The Moxa Turbo
Serial Engine™ chip that powers the CP-114UL boards comes with on-chip ADDC®,
which makes RS-485 as easy to use as RS-232. In RS-485 mode, the serial port can
connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km. For
long-distance RS-485 communication, 2 kV electrical isolation protections are
available to prevent equipment damage.
You can also find the CP-114UL-DB25M, CP-114UL-I-DB9M, and CP-114UL-T models in the Multiport Serial Cards.
Easy World Automation offers the easiest way to buy the MOXA CP-114UL-DB9M UPCI Serial Board in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the
lowest price through online inquiring. Our sales experts will contact you to
fulfill all your industrial automation needs.
Specification
| SERIAL INTERFACE | |
|---|---|
| Comm. Controller | MU860 (16C550C compatible) |
| Number of Ports | 4 |
| Bus interface | 32-bit Universal PCI |
| Serial Standards | RS-232, RS-422, RS-485 |
| Connector | DB44 female |
| Baudrate | 50 bps to 921.6 kbps |
| Max. No. of Boards per PC | 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, XON/XOFF, None |
| Data Bits | 5, 6, 7, 8 |
| FIFO | 128 bytes |
| Isolation | |
| SERIAL SIGNALS | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| SERIAL SOFTWARE FEATURES | |
| Windows Drivers | DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x |
| UNIX Drivers | QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD |
| POWER REQUIREMENTS | |
| Input Current | 320 mA @ 5 VDC |
| Input Voltage | - |
| GENERAL | |
| MTBF | 114,223 hrs |
| LED Indicators | Built-in Tx, Rx LEDs for each port |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 64.4 x 120 mm (2.53 x 4.72 in) |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class B; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m; International Approval: KC; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332 |
