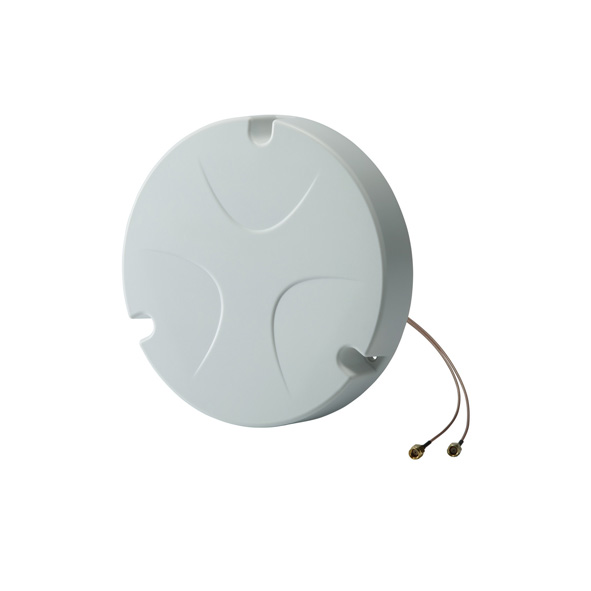

MOXA MAT-WDB-CA-RM-2-0205 WLAN Antenna

MOXA MAT-WDB-CA-RM-2-0205 WLAN Antenna
MOXA MAT-WDB-CA-RM-2-0205 WLAN Antenna
MOXA MAT-WDB-CA-RM-2-0205 WLAN Antenna
MOXA MAT-WDB-CA-RM-2-0205 WLAN Antenna
MOXA MAT-WDB-CA-RM-2-0205 WLAN Antenna

  • Frequency 2.4 GHz (Min), 5.9 GHz (Max)
  • Antenna Type: MIMO 2x2, Omni-directional
  • Antenna Gain: 2/5 dBi
  • Connector Type: RP-SMA-type (male)
  • ABS body design
  • Ceiling mount support
  • -40 to 75°C operating temperature

  • Brand: MOXA
  • Model: MAT-WDB-CA-RM-2-0205
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 75°C)
  • Relative Humidity (5 to 95% non-condensing)
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA ANT-5G-ASM-02 Cellular Antenna
Quickview
MOXA ANT-5G-ASM-02 Cellular Antenna
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA ANT-5G-ASM-03 Cellular Antenna
Quickview
MOXA ANT-5G-ASM-03 Cellular Antenna
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA ANT-5G-ASM-07 Cellular Antenna
Quickview
MOXA ANT-5G-ASM-07 Cellular Antenna
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA ANT-5G-OSM-03-1.5m Cellular Antenna
Quickview
MOXA ANT-5G-OSM-03-1.5m Cellular Antenna
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA ANT-5G-OSM-03-1m Cellular Antenna
Quickview
MOXA ANT-5G-OSM-03-1m Cellular Antenna
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA ANT-5G-OSM-03-2m Cellular Antenna
Quickview
MOXA ANT-5G-OSM-03-2m Cellular Antenna
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA ANT-CQB-AHSM-00-3m Cellular Antenna
Quickview
MOXA ANT-CQB-AHSM-00-3m Cellular Antenna
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA ANT-CQB-AHSM-03-3m Cellular Antenna
Quickview
MOXA ANT-CQB-AHSM-03-3m Cellular Antenna
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Accessories , Wireless Accessories , Wireless Antennas , WLAN Antennas , Antennas , Industrial Network Accessories , MOXA MAT-WDB-CA-RM-2-0205 Series

The MAT-WDB-CA-RM-2-0205 antenna is a lightweight MIMO 2x2 dual-band ceiling antenna with an RP-SMA-type (male) connector. The antenna can be used in both the 2.4 GHz and 5 GHz frequencies and is designed to operate in temperatures from -40 to 75°C.


You can also find the MAT-WDB-DA-RM-2-0203-1m model in the Antennas.


You can Buy the MOXA MAT-WDB-CA-RM-2-0205 WLAN Antenna via inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific time in your location.

Antenna : Antenna Characteristics
Frequency 2.4 to 2.5, 4.9 to 5.9 GHz
Antenna Type MIMO 2x2, Omni-directional
Antenna Gain 2/5 dBi
Connector RP-SMA (male)
Impedance 50 ohms
HPBW/Horizontal 2:1 max.
HPBW/Vertical -
Polarization Linear
Power Handling 10 W (max.)
V.S.W.R. 2:1 max.
Antenna : Physical Characteristics
Dimensions Diameter: 210.9 mm (8.3 in), Height: 37 mm (1.46 in)
Operating Temperature -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 75°C (-40 to 167°F)
Length -
Cable Length 250 mm (9.84 in)
Weight 115 g (0.25 lb)
Ambient Relative Humidity 5 to 95% (30°C, non-condensing)
Housing ABS
Installation Ceiling mount
IP Rating -
