Description

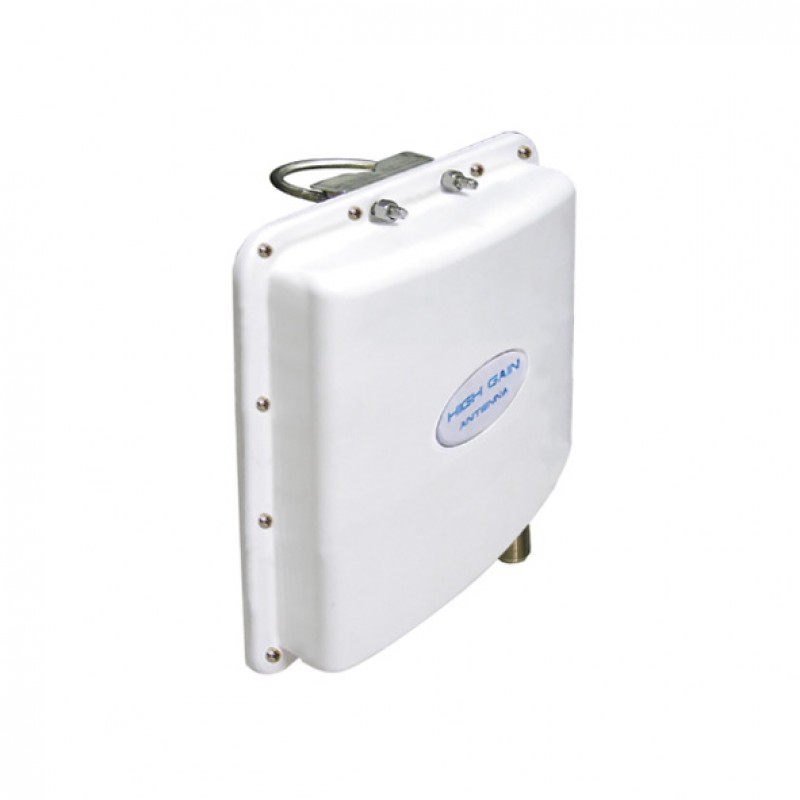

The ANT-WSB5-PNF-16 is a single-band high-gain directional
panel antenna with a waterproof N-type female connector. The antenna provides a
gain of 16 dBi at 5 GHz. The IP65-rated housing, pole-mounting support, and
wide operating temperature range of -40 to 85°C make it suitable for outdoor
use.
You can also find the ANT-WDB-PNF-1011 and the ANT-WSB-PNF-12-02 models in the Antennas.
Easy World Automation offers the easiest way to buy the MOXA ANT-WSB5-PNF-16 WLAN Antenna in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the
lowest price through online inquiring. Our sales experts will contact you to
fulfill all your industrial automation needs.
Specification
Antenna Characteristics | |
---|---|
Frequency | 5.15 to 5.85 GHz |
Antenna Type | Directional, Panel |
Antenna Gain | 16 dBi |
Connector | N-type (female) |
Impedance | 50 ohms |
Polarization | Vertical |
Physical Characteristics | |
Weight | 807 g (1.78 lb) |
Operating Temperature | -40 to 85°C (-40 to 185°F) |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity | - |
