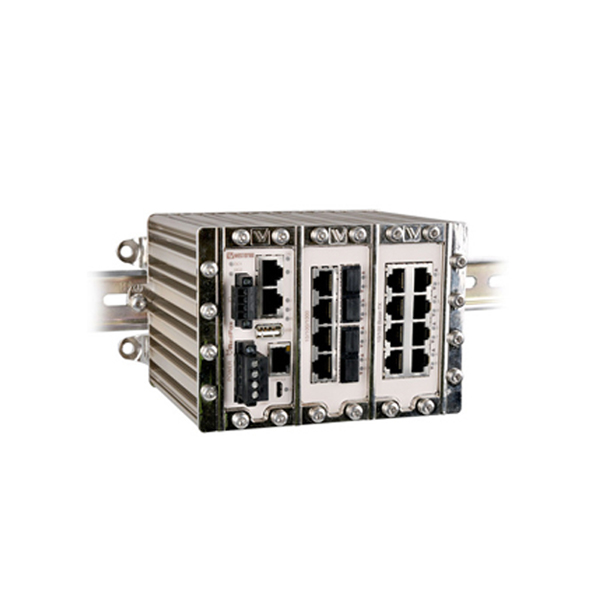

Westermo RFI-119-F4G-T7G Managed Ethernet Switch

Westermo RFI-119-F4G-T7G Managed Ethernet Switch
Westermo RFI-119-F4G-T7G Managed Ethernet Switch
Westermo RFI-119-F4G-T7G Managed Ethernet Switch
Westermo RFI-119-F4G-T7G Managed Ethernet Switch
Westermo RFI-119-F4G-T7G Managed Ethernet Switch

  • Layer 2 functionality switching
  • 8 x 10/100 Mbit/s TX Ports (RJ-45)
  • 7 x 10/100/1000 Mbit/s TX Ports (RJ45)
  • 4 x 100/1000 Mbit/s Ethernet FX or TX SFP ports
  • 16 to 60 VDC operating voltage range
  • Ultra-robust IP40 aluminum housing
  • -40 to +70°C operating temperature range

0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 70°C)
  • IP protection (IP40)
  • Railway Transportation
  • Marine
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM i800 Ethernet Switches
Quickview
SIEMENS RUGGEDCOM i800 Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RS900 Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RS900 Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RS900GP Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RS900GP Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RS940G Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RS940G Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RS950G Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RS950G Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RSG2300 Rackmount Ethernet Switch
Quickview
SIEMENS RUGGEDCOM RSG2300 Rackmount Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RSG2488 Rack-mount Switches
Quickview
SIEMENS RUGGEDCOM RSG2488 Rack-mount Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RSG920P Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RSG920P Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Ethernet Switches , Industrial Data Communications , Managed Layer 2 Switches , Layer 2 Switches , Marine Products , Railway Transportation Products , Managed Ethernet Switches , Ethernet Switches , Managed Switches , Switches , Westermo RFI-119-F4G-T7G

RedFox is a high-performance layer 2 industrial Ethernet switch designed for high network traffic applications. It is powered by WeOS, the Westermo operating system. Various port configurations are available that can be further customized with SFP transceivers. The RedFox is designed for use in heavy-duty industrial applications in its robust aluminium housing. Its wide power range and I/O fault contact make it ideal for easy installation and monitoring in industrial applications.

Only industrial-grade components are used, which gives the RedFox an MTBF of 303,000 hours and ensures a long service life. A wide operating temperature range –40 to +70°C (–40 to +158°F) can be achieved with no moving parts or cooling holes in the case. RedFox has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications.



You can also find the RFI-111-F4G-T7G, RFI-211-F4G-T7G, RFI-219-F4G-T7G, and RFI-219-T3G models in the Managed Ethernet Switches.


Easy World Automation offers the easiest way to buy the Westermo RFI-119-F4G-T7G Managed Ethernet Switch in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

switch and hub : Interface
Number of ports 19 Ports
10/100Mb RJ45 (Megabit) Ports Yes : 8 Ports
10/100/1000Mb RJ45 (Gigabit) Ports Yes : 7 Ports
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 4 x 100/1000 Mbit/s Ethernet FX or TX SFP Ports (pluggable connections transceivers supported), 1 x Console Port (USB Micro-B connector), 1 x USB Port (USB 2.0 host interface), 1 x 4-ports Digital I/O ( detachable screw terminal)
switch and hub : Features and capabilities
Backup No
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current 0.93 (1.12) A @ 20 VDC, 0.38 (0.45) A @ 48 VDC
Power Input Plugin ( Redundant ) No
Input Voltage -
Operating Voltage 16 to 60 VDC
Power Consumption -
switch and hub : General
Fan / Fanless Fanless
MTBF 303,000 hours
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation No
switch and hub : Physical Characteristics
Dimensions 175 x 100 x 122 mm (6.88 x 3.93 x 4.80 in)
Housing Aluminium
Installation -
Operating Temperature –40 to +70°C (–40 to +158°F), Maximum surface temperature: 135ºC (275ºF) (temperature class T4)
Operation Humidity -
Standards and Certifications MIL-HDBK-217K; IP40; EMC: EN 50121-4, Railway applications – Electromagnetic compatibility – Emission and immunity of the signalling and telecommunications apparatus, EN 61000-6-1, Electromagnetic compatibility – Immunity for residential, commercial and light-industrial environments, EN 61000-6-2, Electromagnetic compatibility – Immunity for industrial environments, EN 61000-6-3, Electromagnetic compatibility – Emission standards for residential, commercial and light industrial environments, EN 61000-6-4, Electromagnetic compatibility – Emission standard for industrial environments; Safety: UL/IEC/EN 60950-1, IT equipment; Marine: DNV GL rules for classification – Ships and offshore units
Storage Temperature –50 to +85°C (–58 to +185°F)
Weight 2.2kg
switch and hub : Standards and protocols
Protocols and work standards -
Protocols and management standards -
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
