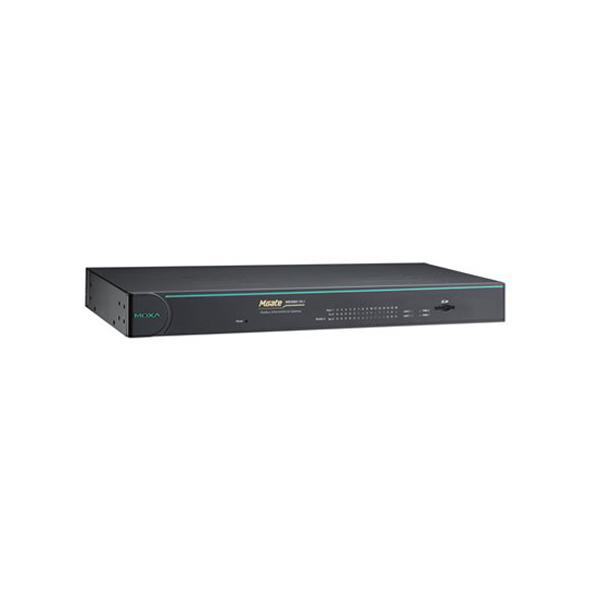

Name: MOXA MGate MB3660-16-2AC Industrial Ethernet Gateway
Brand: MOXA
Availability: InStock

MOXA MGate MB3660-16-2AC Industrial Ethernet Gateway

Redundant Modbus gateway
2 x 10/100BaseT(X) Ethernet Ports (RJ45 connector)
16 x RS-232/422/485 Serial ports (DB9 male connector)
100 to 240 VAC Redundant dual power inputs
IP30-rated Metal body design
0 to 60°C operating temperature

Brand: MOXA
Model: MGate MB3660-16-2AC

0 reviews • Write a review

Datasheet

Operating Temperature (0 to 60°C)
Relative Humidity (5 to 95% non-condensing)
IP protection (IP30)
Freefall (IEC 60068-2-31)
Shock (IEC 60068-2-27)
Vibration (IEC 60068-2-6, IEC 60068-2-64)

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA MGate 4101-MB-PBS Industrial Ethernet Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate 4101-MB-PBS-T Industrial Ethernet Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate 4101I-MB-PBS Industrial Ethernet Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate 4101I-MB-PBS-T Industrial Ethernet Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate 5101-PBM-MN Industrial Ethernet Gateways

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate 5101-PBM-MN-T Industrial Ethernet Gateways

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate 5102-PBM-PN Industrial Ethernet Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate 5102-PBM-PN-T Industrial Ethernet Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Edge Connectivity , Protocol Gateways , Industrial Ethernet Gateways , Ethernet Gateways , Industrial Gateways , Industrial Ethernet Gateways , Modbus TCP Gateways , TCP Gateways , Modbus Gateways , Modbus , Gateways , MOXA MGate MB3660 Series

The MGate MB3660 (MB3660-8 and MB3660-16) gateways are redundant Modbus gateways that convert between the Modbus TCP and Modbus RTU/ASCII protocols. They can be accessed by up to 256 TCP master/client devices, or connect to 128 TCP slave/server devices. Routing through the serial ports can be controlled by IP address, TCP port number, or ID mapping. Serial-port routing by designated TCP port and IP address allows access for up to 4 TCP clients/masters, while routing by ID mapping (slave ID table) allows access for up to 256 TCP clients/masters. The MGate MB3660 isolation model provides 2-kV isolation protection suitable for power substation applications. The MGate MB3660 gateways are designed to integrate Modbus TCP and RTU/ASCII networks easily. The MGate MB3660 gateways offer features that make network integration easy, customizable, and compatible with almost any Modbus network.

For large-scale Modbus deployments, MGate MB3660 gateways can effectively connect a large number of Modbus nodes to the same network. The MB3660 Series can physically manage up to 248 serial slave nodes for 8-port models or 496 serial slave nodes for 16-port models (the Modbus standard only defines Modbus IDs from 1 to 247). Each RS-232/422/485 serial port can be configured individually for Modbus RTU or Modbus ASCII operation and for different baud rates, allowing both types of networks to be integrated with Modbus TCP through one Modbus gateway.

You can also find the MGate MB3660-16-2DC, MGate MB3660-16-J-2AC, and MGate MB3660-8-2AC models in the Industrial Ethernet Gateways.

Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA MGate MB3660-16-2AC Industrial Ethernet Gateway through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

industrial gateway : Interface
10/100Mb RJ45 (Megabit) Ports	Yes : 2 x 10/100BaseT(X) Ethernet Ports (RJ45 connector)
Magnetic Isolation Protection	No
Other ports	No
Protocols	Ethernet: Modbus TCP Client (Master), Modbus TCP Server (Slave); Serial: Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave
industrial gateway : Serial port specifications
Number of Ports	16
Console Port	RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
Connectors	DB9 male
Serial Standards	RS-232/422/485
Isolation	No
industrial gateway : Serial Communication Parameters
Data Bits	7, 8
Stop Bits	1, 2
Parity	Even, Odd, Space, Mark, None
Flow Control	RTS/CTS, DTR/DSR, RTS Toggle (RS-232 only)
Baudrate	50 bps to 921.6 kbps
industrial gateway : Serial Signals
RS-232 Signals	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Signals	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Signals	Data+, Data-, GND
RS-485-4w Signals	Tx+, Tx-, Rx+, Rx-, GND
industrial gateway : General
Management	ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, NTP Client, RADIUS
MTBF	495,416 hrs
Industrial Gateway : Memory
microSD Slot	Yes
industrial gateway : Power Requirements
Input Current	141 mA @ 110 VAC
Input Voltage	100 to 240 VAC (50/60 Hz), Redundant dual power inputs
Power Connector	-
industrial gateway : Security
Security	Security Protocols: SNMPv3, HTTPS (TLS 1.2)
Authentication	Local database, RADIUS
Encryption	HTTPS, AES-128, AES-256, SHA-256
industrial gateway : Physical Characteristics
Dimensions	440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in)
Standards and Certifications	EMC: EN 55032/35, EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Safety: IEC 62368-1, UL 62368-1, IEC 60950-1, UL 60950-1; Freefall: IEC 60068-2-31; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; IP30; Telcordia SR332
Housing	Metal
Operating Temperature	0 to 60°C (32 to 140°F)
Weight	2820 g (6.22 lb)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Installation	Rack mounting
