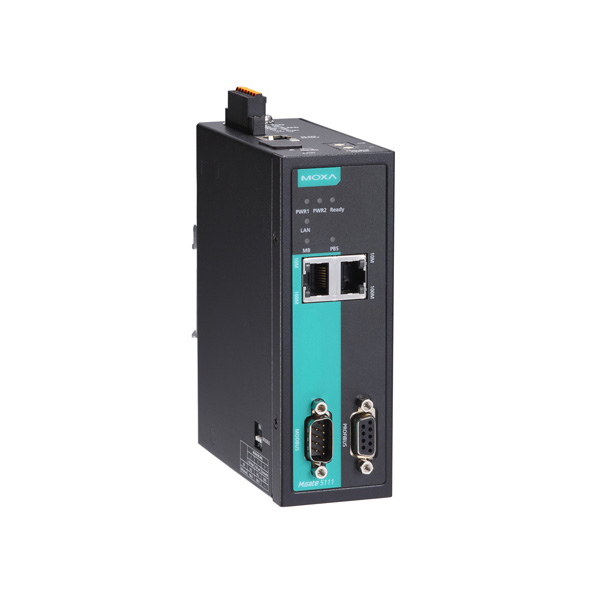

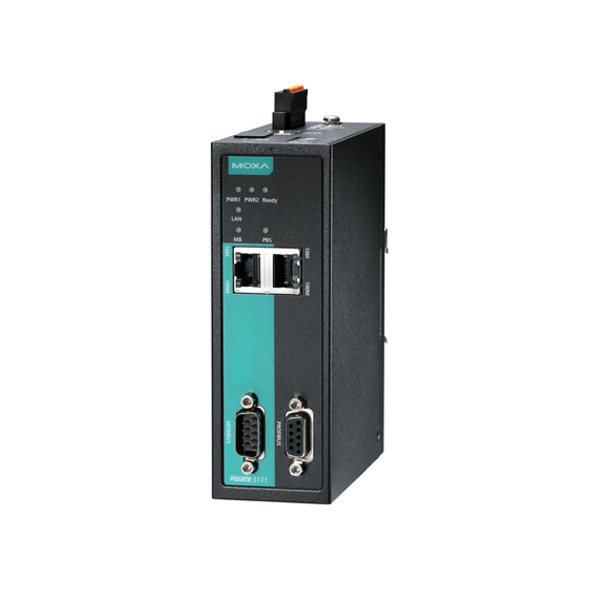

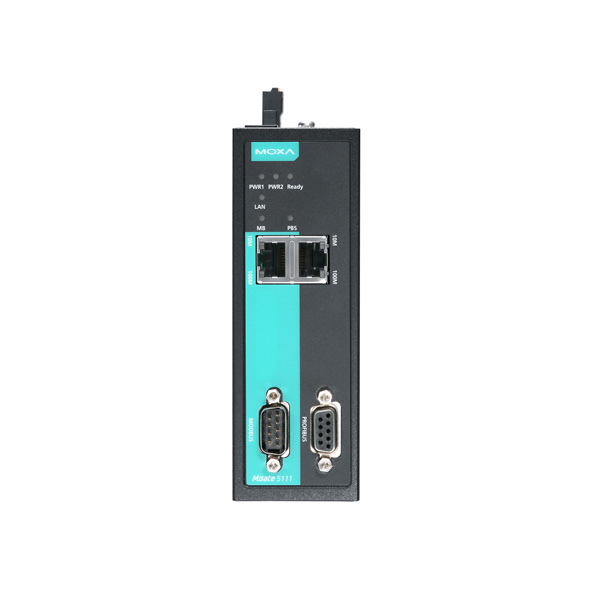

MOXA MGate 5111-T Industrial Ethernet Gateway

MOXA MGate 5111-T Industrial Ethernet Gateway
MOXA MGate 5111-T Industrial Ethernet Gateway
MOXA MGate 5111-T Industrial Ethernet Gateway
MOXA MGate 5111-T Industrial Ethernet Gateway
MOXA MGate 5111-T Industrial Ethernet Gateway
MOXA MGate 5111-T Industrial Ethernet Gateway
MOXA MGate 5111-T Industrial Ethernet Gateway

  • Converts Modbus/PROFINET/EtherNet/IP to PROFIBUS
  • 2 x 10/100BaseT(X) Ports (RJ45 connector)
  • 1 x RS-232/422/485 Serial port and 1 x PROFIBUS port (DB9 male)
  • 2 KV isolation protection for Serial and PROFIBUS ports
  • 12 to 48 VDC Redundant dual power inputs
  • IP30-rated Metal body design
  • -40 to 75°C operating temperature

  • Brand: MOXA
  • Model: MGate 5111-T
0 reviews • Write a review
Datasheet
  • Freefall (IEC 60068-2-32)
  • Operating Temperature (-40 to 75°C)
  • Hazardous Location (Class 1 Division 2, ATEX, IECEx)
  • IP protection (IP30)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6, IEC 60068-2-64)
  • Oil & Gas
  • Factory Automation
  • Power Utility
  • Water & Wastewater
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA MGate 4101-MB-PBS Industrial Ethernet Gateway
Quickview
MOXA MGate 4101-MB-PBS Industrial Ethernet Gateway
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA MGate 4101-MB-PBS-T Industrial Ethernet Gateway
Quickview
MOXA MGate 4101-MB-PBS-T Industrial Ethernet Gateway
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA MGate 4101I-MB-PBS Industrial Ethernet Gateway
Quickview
MOXA MGate 4101I-MB-PBS Industrial Ethernet Gateway
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA MGate 4101I-MB-PBS-T Industrial Ethernet Gateway
Quickview
MOXA MGate 4101I-MB-PBS-T Industrial Ethernet Gateway
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA MGate 5101-PBM-MN Industrial Ethernet Gateways
Quickview
MOXA MGate 5101-PBM-MN Industrial Ethernet Gateways
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA MGate 5101-PBM-MN-T Industrial Ethernet Gateways
Quickview
MOXA MGate 5101-PBM-MN-T Industrial Ethernet Gateways
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA MGate 5102-PBM-PN Industrial Ethernet Gateway
Quickview
MOXA MGate 5102-PBM-PN Industrial Ethernet Gateway
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA MGate 5102-PBM-PN-T Industrial Ethernet Gateway
Quickview
MOXA MGate 5102-PBM-PN-T Industrial Ethernet Gateway
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Edge Connectivity , Protocol Gateways , Industrial Gateways , Industrial Ethernet Gateways , Ethernet Gateways , Industrial Modbus TCP Gateways , Modbus Gateways , TCP Gateways , Industrial EtherNet/IP Gateways , Industrial PROFINET Gateways , Industrial Data Communications , Oil & Gas Products , Power Utility Products , Water & Wastewater Products , Gateways , Modbus , EtherNet/IP , PROFINET , MOXA MGate 5111 Series

MGate 5111 industrial Ethernet gateways convert data between the Modbus RTU/ASCII/TCP, EtherNet/IP, PROFINET, and PROFIBUS protocols. All models are protected by rugged metal housing, are DIN-rail mountable, and offer built-in serial isolation.

Modbus is one of the most widely used industrial communication protocols, and EtherNet/IP, PROFINET, and PROFIBUS are commonly used in factory automation and process automation. The MGate 5111 supports both Modbus RTU/ASCII/TCP master and slave modes so that you can easily connect your Modbus device to PROFIBUS PLCs or DCSs, such as Siemens PLCs.

For system integration, the MGate 5111 can connect to EtherNet/IP PLC/SCADA systems, such as Rockwell Automation PLCs, to PROFIBUS PLC/ DCS systems, or between a new Siemens PLC system that supports PROFINET to an existing PROFIBUS system. The MGate 5111 gateways are designed for easy configuration and quick maintenance. A handy web console can be used to implement remote maintenance tasks, and the configuration wizard UI lets you quickly set up your gateway. A comprehensive collection of troubleshooting tools reduces configuration time and system downtime. The rugged design is suitable for industrial applications, such as factory automation, power, oil and gas, water and wastewater, and other process automation industries.


You can also find the MGate 5111 model in the Industrial Ethernet Gateways.


Easy World Automation offers the easiest way to buy the MOXA MGate 5111-T Industrial Ethernet Gateway in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

industrial gateway : Interface
10/100Mb RJ45 (Megabit) Ports Yes : 2 Ports (Auto MDI/MDI-X connection)
Magnetic Isolation Protection 1.5 kV (built-in)
Other ports Yes : 1 x PROFIBUS port with 2 KV isolation (DB9 female connector)
Protocols Ethernet: Modbus TCP Client (Master), Modbus TCP Server (Slave), PROFINET IO Device, EtherNet/IP Adapter; Serial: PROFIBUS DP-V0 Slave, Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave, PROFIBUS DP
industrial gateway : Serial port specifications
Number of Ports 1 Port
Console Port RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
Connectors DB9 male
Serial Standards RS-232/422/485
Isolation Yes : 2 kV (built-in)
industrial gateway : Serial Communication Parameters
Data Bits 7, 8
Stop Bits 1, 2
Parity Even, Odd, Space, Mark, None
Flow Control RTS Toggle (RS-232 only), RTS/CTS
Baudrate 50 bps to 921.6 kbps
industrial gateway : Serial Signals
RS-232 Signals TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Signals Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Signals Data+, Data-, GND
RS-485-4w Signals Tx+, Tx-, Rx+, Rx-, GND
industrial gateway : General
Management ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client
MTBF 718,131 hrs
Industrial Gateway : Memory
microSD Slot Up to 32 GB (SD 2.0 compatible)
industrial gateway : Power Requirements
Input Current 416 mA @ 12 VDC
Input Voltage 12 to 48 VDC
Power Connector Spring-type Euroblock terminal
industrial gateway : Security
Security No
Authentication No
Encryption No
industrial gateway : Physical Characteristics
Dimensions 45.8 x 105 x 134 mm (1.8 x 4.13 x 5.28 in)
Standards and Certifications EMC: EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF; Safety: EN 62368-1, UL 61010-2-201; Hazardous Locations: ATEX, Class I Division 2, IECEx; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; IP30; Telcordia SR332
Housing Metal
Operating Temperature -40 to 75°C (-40 to 167°F)
Weight 589 g (1.30 lb)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Installation DIN-rail mounting
