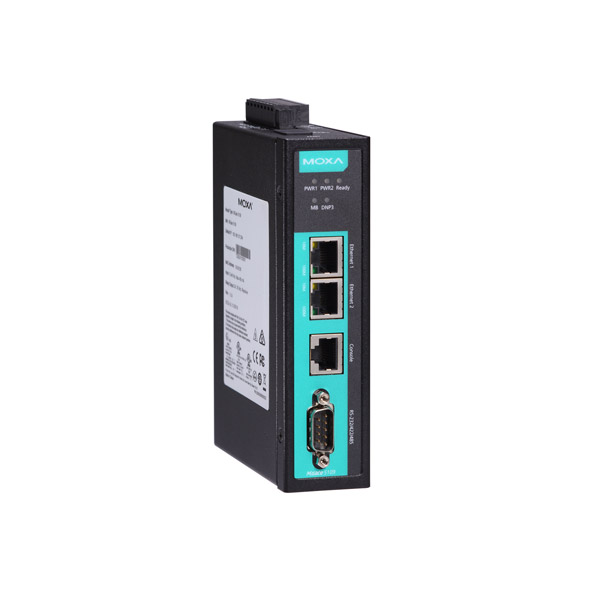

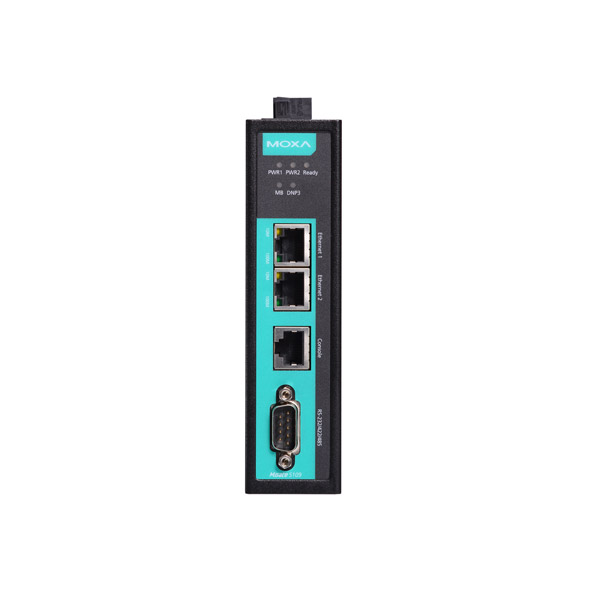

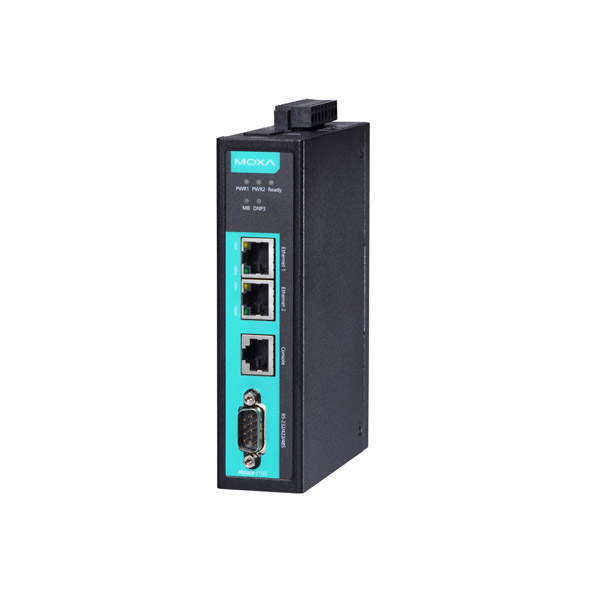

Name: MOXA MGate 5109 Industrial Ethernet Gateway
Brand: MOXA
Availability: OutOfStock

MOXA MGate 5109 Industrial Ethernet Gateway

Converts Modbus RTU/ASCII/TCP to DNP3 serial/TCP/UDP
2 x 10/100BaseT(X) Ports (RJ45 connector)
1 x RS-232/422/485 Serial port (DB9 male connector)
2 KV Isolation protection for serial port
12 to 48 VDC Redundant dual power inputs
IP30-rated Metal body design
0 to 60°C operating temperature

Brand: MOXA
Model: MGate 5109

0 reviews • Write a review

Datasheet User Manual User Guide

Operating Temperature (0 to 60°C)
Relative Humidity (5 to 95% non-condensing)
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6, IEC 60068-2-64)
IP protection (IP30)
Hazardous Location (Class 1 Division 2, ATEX, IECEx)

Power Utility
Oil & Gas
Water & Wastewater

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA MGate 4101-MB-PBS Industrial Ethernet Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate 4101-MB-PBS-T Industrial Ethernet Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate 4101I-MB-PBS Industrial Ethernet Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate 4101I-MB-PBS-T Industrial Ethernet Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate 5101-PBM-MN Industrial Ethernet Gateways

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate 5101-PBM-MN-T Industrial Ethernet Gateways

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate 5102-PBM-PN Industrial Ethernet Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate 5102-PBM-PN-T Industrial Ethernet Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Edge Connectivity , Protocol Gateways , Industrial Ethernet Gateways , Industrial Gateways , Ethernet Gateways , Modbus TCP Gateways , Modbus Gateways , TCP Gateways , Modbus , Industrial Data Communications , Oil & Gas Products , Power Utility Products , Water & Wastewater Products , Gateways , MOXA MGate 5109 Series

The MGate 5109 is an industrial Ethernet gateway for Modbus RTU/ASCII/TCP and DNP3 serial/TCP/UDP protocol conversion. All models are protected with a rugged metallic casing, are DIN-rail mountable, and offer built-in serial isolation. The MGate 5109 supports a transparent mode to easily integrate Modbus TCP to Modbus RTU/ASCII networks or DNP3 TCP/UDP to DNP3 serial networks. The MGate 5109 also supports agent mode to exchange data between Modbus and DNP3 networks or to act as a data concentrator for multiple Modbus slaves or multiple DNP3 outstations. The rugged design is suitable for industrial applications such as power, oil and gas, and water and wastewater.

You can also find the MGate 5109-T model in the Industrial Ethernet Gateways.

Enjoy the ease of online inquiries for the MOXA MGate 5109 Industrial Ethernet Gateway. You can submit your inquiry on our website and get the most friendly communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

industrial gateway : Interface
10/100Mb RJ45 (Megabit) Ports	Yes : 2 Ports (Auto MDI/MDI-X connection)
Magnetic Isolation Protection	1.5 kV (built-in)
Other ports	No
Protocols	Ethernet: Modbus TCP Client (Master), Modbus TCP Server (Slave), DNP3 TCP Master, DNP3 TCP Outstation; Serial: Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave, DNP3 Serial Master, DNP3 Serial Outstation
industrial gateway : Serial port specifications
Number of Ports	1 Port
Console Port	Yes : RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
Connectors	DB9 male
Serial Standards	RS-232/422/485
Isolation	Yes : 2 kV (built-in)
industrial gateway : Serial Communication Parameters
Data Bits	7, 8
Stop Bits	1, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	RTS Toggle (RS-232 only), RTS/CTS
Baudrate	50 bps to 921.6 kbps
industrial gateway : Serial Signals
RS-232 Signals	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Signals	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Signals	Data+, Data-, GND
RS-485-4w Signals	Tx+, Tx-, Rx+, Rx-, GND
industrial gateway : General
Management	ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client
MTBF	888,926 hrs
Industrial Gateway : Memory
microSD Slot	Yes : Up to 32 GB (SD 2.0 compatible)
industrial gateway : Power Requirements
Input Current	455 mA @ 12 VDC
Input Voltage	12 to 48 VDC (Redundant dual power inputs)
Power Connector	Screw-fastened Euroblock terminal
industrial gateway : Security
Security	Security Protocols: SNMPv3, SNMPv2c Trap, HTTPS (TLS 1.3)
Authentication	Local database
Encryption	HTTPS, AES-128, AES-256, SHA-256
industrial gateway : Physical Characteristics
Dimensions	36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)
Standards and Certifications	EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class B; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF; Safety: EN 62368-1, UL 508; Hazardous Locations: ATEX, Class I Division 2, IECEx; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; IP30; Telcordia SR332
Housing	Metal
Operating Temperature	0 to 60°C (32 to 140°F)
Weight	507 g (1.12 lb)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Installation	DIN-rail mounting
