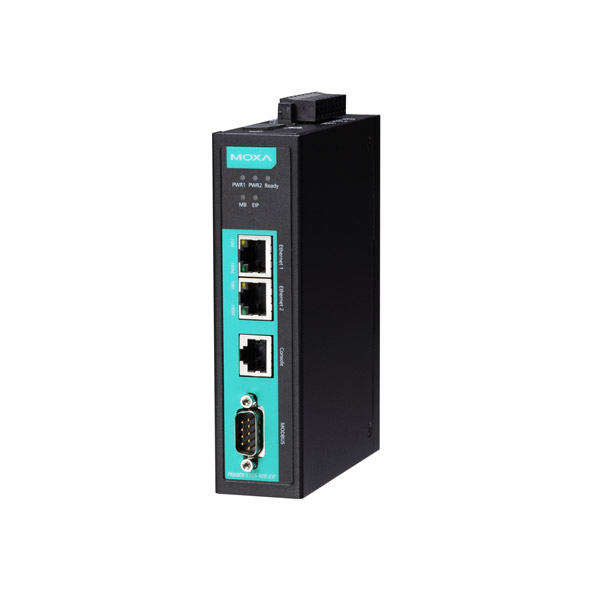

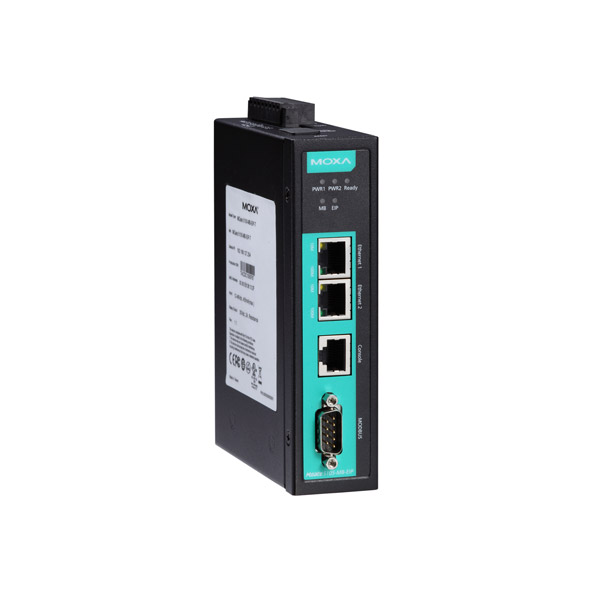

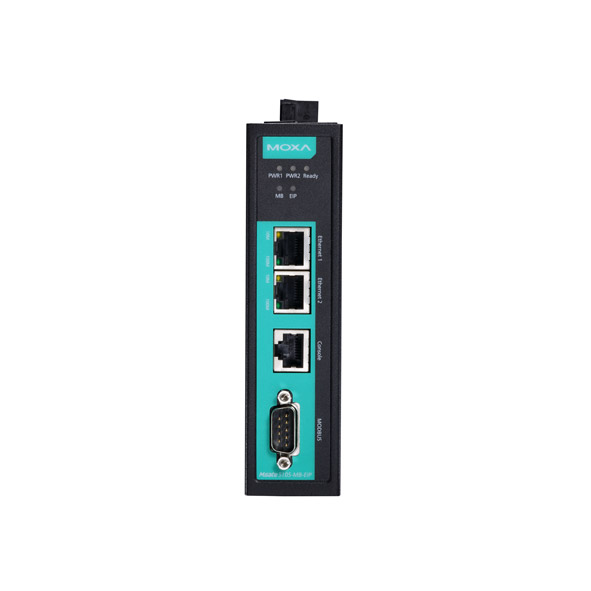

MOXA MGate 5105-MB-EIP-T Industrial Ethernet Gateway

MOXA MGate 5105-MB-EIP-T Industrial Ethernet Gateway
MOXA MGate 5105-MB-EIP-T Industrial Ethernet Gateway
MOXA MGate 5105-MB-EIP-T Industrial Ethernet Gateway
MOXA MGate 5105-MB-EIP-T Industrial Ethernet Gateway
MOXA MGate 5105-MB-EIP-T Industrial Ethernet Gateway
MOXA MGate 5105-MB-EIP-T Industrial Ethernet Gateway
MOXA MGate 5105-MB-EIP-T Industrial Ethernet Gateway

  • Converts Modbus RTU/ASCII/TCP to EtherNet/IP
  • Supports MQTT connection
  • 2 x 10/100BaseT(X) Ports (RJ45 connector)
  • 1 x RS-232/422/485 Serial port (DB9 male connector)
  • 2 KV Isolation protection for serial port
  • 12 to 48 VDC Redundant dual power inputs
  • IP30-rated Metal body design
  • -40 to 75°C operating temperature

  • Brand: MOXA
  • Model: MGate 5105-MB-EIP-T
0 reviews • Write a review
Datasheet User Manual User Guide
  • Operating Temperature (-40 to 75°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6, IEC 60068-2-64)
  • IP protection (IP30)
  • Hazardous Location (Class 1 Division 2, ATEX, IECEx)
  • Oil & Gas
  • Factory Automation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA MGate 4101-MB-PBS Industrial Ethernet Gateway
Quickview
MOXA MGate 4101-MB-PBS Industrial Ethernet Gateway
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA MGate 4101-MB-PBS-T Industrial Ethernet Gateway
Quickview
MOXA MGate 4101-MB-PBS-T Industrial Ethernet Gateway
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA MGate 4101I-MB-PBS Industrial Ethernet Gateway
Quickview
MOXA MGate 4101I-MB-PBS Industrial Ethernet Gateway
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA MGate 4101I-MB-PBS-T Industrial Ethernet Gateway
Quickview
MOXA MGate 4101I-MB-PBS-T Industrial Ethernet Gateway
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA MGate 5101-PBM-MN Industrial Ethernet Gateways
Quickview
MOXA MGate 5101-PBM-MN Industrial Ethernet Gateways
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA MGate 5101-PBM-MN-T Industrial Ethernet Gateways
Quickview
MOXA MGate 5101-PBM-MN-T Industrial Ethernet Gateways
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA MGate 5102-PBM-PN Industrial Ethernet Gateway
Quickview
MOXA MGate 5102-PBM-PN Industrial Ethernet Gateway
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA MGate 5102-PBM-PN-T Industrial Ethernet Gateway
Quickview
MOXA MGate 5102-PBM-PN-T Industrial Ethernet Gateway
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Edge Connectivity , Protocol Gateways , Industrial Ethernet Gateways , Industrial Gateways , Ethernet Gateways , Modbus TCP Gateways , EtherNet/IP Gateways , Modbus Gateways , TCP Gateways , Gateways , EtherNet/IP , Industrial Data Communications , Industrial Serial Connectivity , Fieldbus Solutions , Factory Automation Products , Oil & Gas Products , Modbus , MOXA MGate 5105-MB-EIP Series

The MGate 5105-MB-EIP is an industrial Ethernet gateway for Modbus RTU/ASCII/TCP and EtherNet/IP network communications with IIoT applications, based on MQTT or third-party cloud services, such as Azure and Alibaba Cloud. To integrate existing Modbus devices onto an EtherNet/IP network, use the MGate 5105-MB-EIP as a Modbus master or slave to collect data and exchange data with EtherNet/IP devices. The latest exchange data will be stored in the gateway as well. The gateway converts stored Modbus data into EtherNet/IP packets so the EtherNet/IP scanner can control or monitor Modbus devices. The MQTT standard with supported cloud solutions on the MGate 5105-MB-EIP leverages advanced security, configuration, and diagnostics to troubleshoot technologies to deliver scalable and extensible solutions that are suitable for remote monitoring applications such as energy management and assets management.


You can also find the MGate 5105-MB-EIP model in the Industrial Ethernet Gateways.


Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA MGate 5105-MB-EIP-T Industrial Ethernet Gateway through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

industrial gateway : Interface
10/100Mb RJ45 (Megabit) Ports Yes : 2 Ports (Auto MDI/MDI-X connection)
Magnetic Isolation Protection 1.5 kV (built-in)
Other ports No
Protocols Ethernet: Modbus TCP Client (Master), Modbus TCP Server (Slave), EtherNet/IP Scanner, EtherNet/IP Adapter, MQTT; Serial: Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave
industrial gateway : Serial port specifications
Number of Ports 1 Port
Console Port Yes : RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
Connectors DB9 male
Serial Standards RS-232/422/485
Isolation Yes : 2 kV (built-in)
industrial gateway : Serial Communication Parameters
Data Bits 7, 8
Stop Bits 1, 2
Parity None, Even, Odd, Space, Mark
Flow Control RTS Toggle (RS-232 only), RTS/CTS
Baudrate 50 bps to 921.6 kbps
industrial gateway : Serial Signals
RS-232 Signals TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Signals Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Signals Data+, Data-, GND
RS-485-4w Signals Tx+, Tx-, Rx+, Rx-, GND
industrial gateway : General
Management ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client
MTBF 859,422 hrs
Industrial Gateway : Memory
microSD Slot Yes : Up to 32 GB (SD 2.0 compatible; Data buffering up to 2 GB)
industrial gateway : Power Requirements
Input Current 455 mA @ 12 VDC
Input Voltage 12 to 48 VDC (Redundant dual power inputs)
Power Connector Screw-fastened Euroblock terminal
industrial gateway : Security
Security Security Protocols: SNMPv3, SNMPv2c Trap, HTTPS (TLS 1.3)
Authentication Local database
Encryption HTTPS, AES-128, AES-256, SHA-256
industrial gateway : Physical Characteristics
Dimensions 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)
Standards and Certifications EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class B; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF; Safety: EN 62368-1, UL 508; Hazardous Locations: ATEX, Class I Division 2, IECEx; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; IP30; Telcordia SR332
Housing Metal
Operating Temperature -40 to 75°C (-40 to 167°F)
Weight 507 g (1.12 lb)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Installation DIN-rail mounting
