Videotec ULISSE RADICAL

Videotec ULISSE RADICAL
Videotec ULISSE RADICAL
Videotec ULISSE RADICAL
Videotec ULISSE RADICAL
Videotec ULISSE RADICAL
Videotec ULISSE RADICAL
Videotec ULISSE RADICAL

  • Full IP connectivity, ONVIF-S
  • IR corrected zoom lenses 18x, up to 154mm, or 33x, up to 500mm
  • AUTOFOCUS, Thermal Compensation, Visible Cut Filter
  • Total control through Videotec's PTZ assistant
  • Optical sensors for absolute positioning feedback

0 reviews • Write a review
Datasheet
  • IP protection (IP66)
  • TYPE 4X
  • Night Vision
  • Wiper
  • Operating Temperature (Continuous working: from -40°C (-40°F) up to +60°C (140°F), Non-continuous working (absolute maximum temperature for short periods): +65°C (149°F), Cold start (18x lenses): -40°C (-40°F), Cold start (33x lenses): -30°C (-22°F ))
  • Relative Humidity (10% to 95% non-Condensing)
  • IP Surveillance
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
COHU 2600 Series Camera
Quickview
COHU 2600 Series Camera
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
COHU 3212-1000 Body Temperature Measurement and Radiometric Detection Camera
Quickview
COHU 3212-1000 Body Temperature Measurement and Radiometric Detection Camera
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
COHU 3212-2000 Body Temperature Measurement and Radiometric Detection Camera
Quickview
COHU 3212-2000 Body Temperature Measurement and Radiometric Detection Camera
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
COHU 3212-9000 Portable Black Body Calibration Tool
Quickview
COHU 3212-9000 Portable Black Body Calibration Tool
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
COHU 8800 Series Camera
Quickview
COHU 8800 Series Camera
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
COHU 8800HD Series Positioner
Quickview
COHU 8800HD Series Positioner
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
COHU OCTIMA 3430HD Series Camera
Quickview
COHU OCTIMA 3430HD Series Camera
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
COHU OCTIMA 3440HD Series Dome Camera
Quickview
COHU OCTIMA 3440HD Series Dome Camera
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

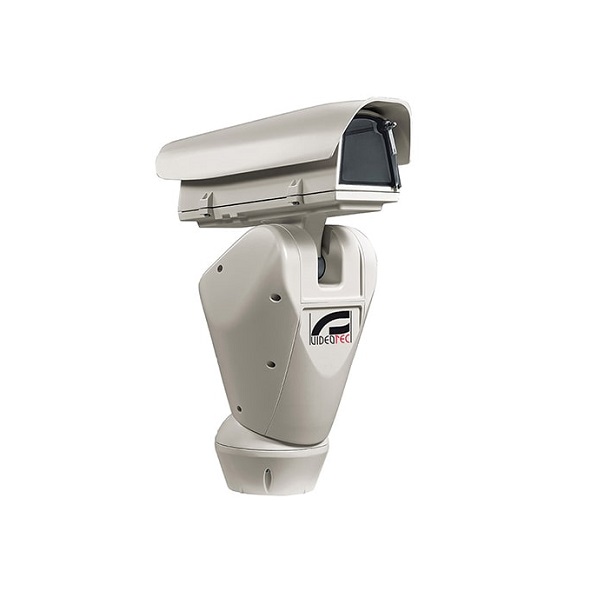

ULISSE RADICAL is the first Videotec ready-to-use network Full HD PTZ camera system that integrates exceptional factory-assembled combinations of camera and lens, Full HD 1080p, 60fps, and 1/2" CMOS sensor, for day and night time broadcast quality video of extended outdoor areas.


You can place an order for the Videotec ULISSE RADICAL, which is applicable in the IP Surveillance industry, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.

VIDEOTEC Products : ELECTRICAL
Supply voltage/Current consumption 230Vac, 0.4A, 50/60Hz, 120Vac, 0.8A, 50/60Hz, 24Vac, 4A (8A with LED illuminators), 50/60Hz
Power consumption 100W, 150-190W max with LED illuminators in 24Vac, 28.5W (Zoom 18x), 24W (Zoom 33x), P&T static, heating switched off
VIDEOTEC Products : NETWORK
Connector RJ45, 10BASE-T/100BASE-T
VIDEOTEC Products : SERIAL COMMUNICATIONS
Serial communication protocol ONVIF, Profile S (TCP/IPv4, UDP/IPv4, HTTP, NTP, DHCP, WS-DISCOVERY, QoS, RTSP, RTCP, RTP)
VIDEOTEC Products : General
General Top mount (OTT), Transmission through the toothed belt, Slip-ring, Electronic limit switches, Zero backlash, Optical sensors for absolute positioning feedback, Integrated wiper, Pre-installed camera and lens, Constructed from aluminum and technopolymer, Epoxy polyester powder paint, RAL9002 color
VIDEOTEC Products : CAMERAS
Resolution 1920x1080, 1280x720, 1024x576, 720x576, 720x480, 704x576, 640x480, 640x360, 352x288, 320x184
Lens Zoom 18x, 8.6-154mm (0.34-6.06in), F2.5, Zoom 33x, 15.2-500mm (0.6-19.7in), F3.0 (Thermal compensation system and Visible Cut Filter)
Horizontal Viewing Angle 40.6° (wide end) to 2.4° (tele end)
Shutter speed 1/1 to 1/10,000 s
S/N Ratio more than 50 dB
White balance ATW, ATW PRO, Fluorescent lamp, Mercury lamp, Sodium vapor lamp, Metal halide lamp, White LED, Open Push WB, Manual
IP Cameras : Physical Characteristics
Weight 17kg (37lb) (18x), 30kg (66lb) (33x)
Operating Temperature Continuous working: from -40°C (-40°F) up to +60°C (140°F), Non-continuous working (absolute maximum temperature for short periods): +65°C (149°F), Cold start (18x lenses): -40°C (-40°F), Cold start (33x lenses): -30°C (-22°F )
Relative humidity from 10% up to 95% (no condensation)
Safety EN60950-1, IEC60950-1
Electromagnetic compatibility EN50130-4, EN610000-6-4, EN55022 (Class A), FCC Part 15 (Class A)
IP protection degree IP66
