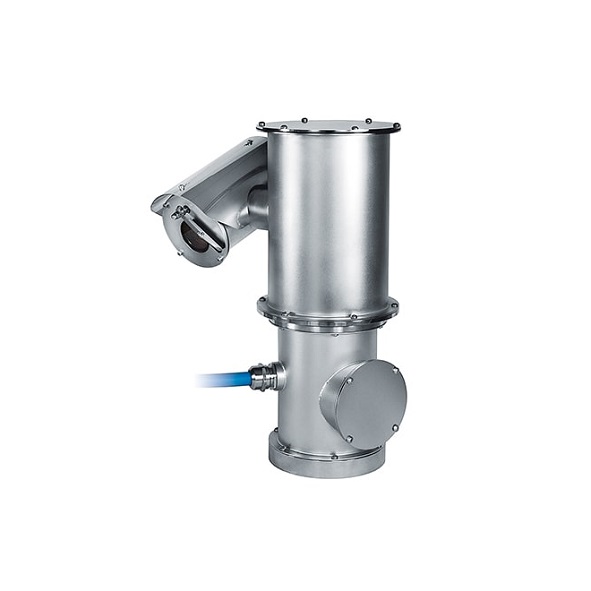

Videotec NXPTZ Onshore-Offshore camera

Videotec NXPTZ Onshore-Offshore camera
Videotec NXPTZ Onshore-Offshore camera

  • Analogue and IP, H.264/AVC and JPEG, 25fps, Full D1 (ONVIF-S)
  • Up to 2 simultaneous video streams (IP-based version)
  • Total control through Videotec's PTZ assistant (IP-based version)
  • Protection degree: IP66, IP67, IP68, IP69
  • Easy installation thanks to the pre-wired multipolar cable supplied with the unit
  • Extended temperature range from -40°C (-40°F) to +60°C (140°F)

0 reviews • Write a review
Datasheet
  • IP protection (IP66)
  • IP protection (IP67)
  • IP protection (IP68)
  • IP protection (IP69)
  • TYPE 4X
  • Wiper
  • Operating Temperature (-40 to 60°C)
  • IP Surveillance
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
COHU 2600 Series Camera
Quickview
COHU 2600 Series Camera
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
COHU 3212-1000 Body Temperature Measurement and Radiometric Detection Camera
Quickview
COHU 3212-1000 Body Temperature Measurement and Radiometric Detection Camera
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
COHU 3212-2000 Body Temperature Measurement and Radiometric Detection Camera
Quickview
COHU 3212-2000 Body Temperature Measurement and Radiometric Detection Camera
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
COHU 3212-9000 Portable Black Body Calibration Tool
Quickview
COHU 3212-9000 Portable Black Body Calibration Tool
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
COHU 8800 Series Camera
Quickview
COHU 8800 Series Camera
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
COHU 8800HD Series Positioner
Quickview
COHU 8800HD Series Positioner
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
COHU OCTIMA 3430HD Series Camera
Quickview
COHU OCTIMA 3430HD Series Camera
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
COHU OCTIMA 3440HD Series Dome Camera
Quickview
COHU OCTIMA 3440HD Series Dome Camera
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

The NXPTZ is an exceptional integrated PTZ camera unit perfect for heavy-duty tasks and ideal to operate in the harshest and most corrosive environments, such as industrial and offshore/onshore marine applications.

NXPTZ requires minimum maintenance and is completely resistant to rust and corrosion, thanks to the maximum precision of the manufacturing processes and quality of the stainless steel AISI 316L micro-shot peened in silicon and electropolished.

The NXPTZ is always supplied with integrated wiper; wide choice of tanks with washer pump available with different capacities and delivery heights.

The NXPTZ series products are Lloyd's Register Type Approval System Test Specification Number 1 certified and therefore can be used in Marine and Offshore applications for environmental categories ENV1, ENV2, ENV3 and ENV5 (eg. passenger ships, open-air decks, closed spaces and technical areas that may be subject to the heat generated by other equipment, docking procedures).


You can place an order for the Videotec NXPTZ Onshore-Offshore camera, which is applicable in the IP Surveillance industry, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.

VIDEOTEC Products : HOUSING'S WINDOW
Material Glass
VIDEOTEC Products : ELECTRICAL
Supply voltage/Current consumption 230Vac, 0.5A max, 50/60Hz, 24Vac, 5A max, 50/60Hz, 120Vac, 1A max, 50/60Hz
Power consumption 120W, 29W, P&T static, heating switched off
VIDEOTEC Products : NETWORK
Ethernet connection 10BASE-T/100BASE-T
Connector RJ45
Cable length 100m max
VIDEOTEC Products : SERIAL COMMUNICATIONS
Serial communication protocol AMERICAN DYNAMICS, ERNITEC, PANASONIC, PELCO D, MACRO
VIDEOTEC Products : I/O INTERFACE
Alarm inputs 5
Relay outputs 2 (1A, 30Vac/60Vdc max)
VIDEOTEC Products : General
General Dynamic positioning control system, 16-character string for a zone and preset titling, Maximum number of presets: 250, Functions: Autopan, Preset, Patrol, Tour (maximum 3), Auto flip, AISI 316L stainless steel construction, External surfaces micro-shot peened in silicon and electro-polished, Pre-wired multipolar cable (3m (9.8ft))
VIDEOTEC Products : VIDEO
Communication protocol ONVIF, Profile S
Device configuration TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, NTP, DHCP, WS-DISCOVERY, QoS, IGMP (Multicast)
Video compression H.264/AVC, MJPEG
Image resolution from Full D1 (720x576 for PAL, 720x480 for NTSC) to 352x240
IP Cameras : Physical Characteristics
Weight 20.5kg (45lb)
Operating Temperature from -40°C (-40°F) up to +60°C (140°F)
Safety EN60950-1, IEC60950-1
Electromagnetic compatibility EN50130-4, EN55032 (Class A), EN61000-6-4, FCC Part 15 (Class A)
IP protection degree IP66/IP67/IP68/IP69
