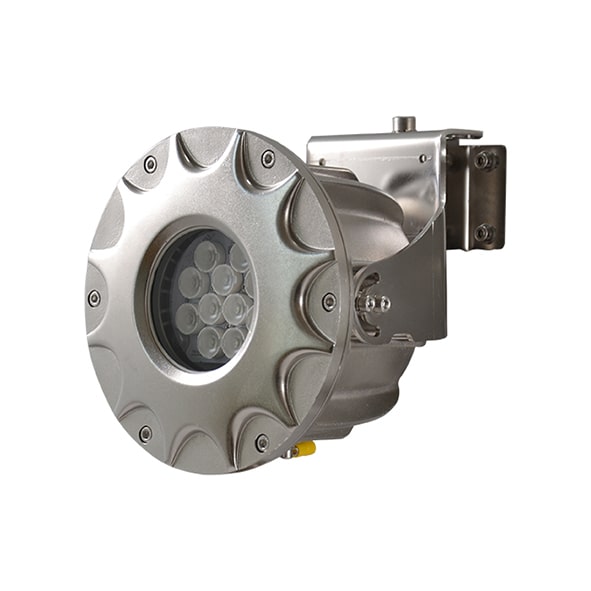

Videotec MAXIMUS MLX LED ILLUMINATOR

Videotec MAXIMUS MLX LED ILLUMINATOR
Videotec MAXIMUS MLX LED ILLUMINATOR

  • Certifications for use in Zones 1 and 2, IIB T6 or T5 Group (Gas) and in Zones 21 and 22, IIIC T85°C or T100°C Group (Dust)
  • AISI 316L stainless steel construction
  • Supports for ceiling, wall and parapet installation supplied
  • White light or IR illuminator

0 reviews • Write a review
Datasheet
  • IP protection (IP66)
  • IP protection (IP67)
  • IP protection (IP68)
  • IP protection (IP69)
  • TYPE 4X
  • TYPE 6P
  • Night Vision
  • Operating Temperature (-40 to 65°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Vibration (EN50130-5, EN60068-2-6)
  • IP Surveillance
  • Oil & Gas
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
COHU 2600 Series Camera
Quickview
COHU 2600 Series Camera
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
COHU 3212-1000 Body Temperature Measurement and Radiometric Detection Camera
Quickview
COHU 3212-1000 Body Temperature Measurement and Radiometric Detection Camera
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
COHU 3212-2000 Body Temperature Measurement and Radiometric Detection Camera
Quickview
COHU 3212-2000 Body Temperature Measurement and Radiometric Detection Camera
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
COHU 3212-9000 Portable Black Body Calibration Tool
Quickview
COHU 3212-9000 Portable Black Body Calibration Tool
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
COHU 8800 Series Camera
Quickview
COHU 8800 Series Camera
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
COHU 8800HD Series Positioner
Quickview
COHU 8800HD Series Positioner
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
COHU OCTIMA 3430HD Series Camera
Quickview
COHU OCTIMA 3430HD Series Camera
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
COHU OCTIMA 3440HD Series Dome Camera
Quickview
COHU OCTIMA 3440HD Series Dome Camera
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

LED MLX illuminators perfectly integrate with indoor/outdoor video surveillance applications or process control systems, providing optimal lighting of the area and clear visibility in poor lighting conditions and during the night.

Their construction is entirely in AISI 316L stainless steel that offers maximum resistance in corrosive environments.

The IP66/IP67/IP68/IP69 level guarantees complete protection against bad weather and water immersion.

Another important feature is the certified extensive temperature range, from -40°C to +70°C.

The MLX line is certified for dangerous areas with certification for use in Zone 1 and 2, Group IIB (Gas) and Zone 21 and 22, Group IIIC (Dust). Furthermore, the line is Lloyd's Register Type Approval System Test Specification Number 1 certified and can therefore be used in marine and offshore applications.


You can place an order for the Videotec MAXIMUS MLX LED ILLUMINATOR, which is applicable in the Oil & Gas, IP Surveillance industries, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.

VIDEOTEC Products : ELECTRICAL
Supply voltage/Current consumption 24Vac, 1.6A, 24Vdc, 1.6A, PoE+ (IEEE 802.3at)
Power consumption 25.5W
VIDEOTEC Products : NETWORK
Ethernet connection -
Connector -
VIDEOTEC Products : I/O INTERFACE
Alarm inputs -
Relay outputs -
VIDEOTEC Products : General
General Beam patterns: 70°, circular, Number of LED groups selectable: 2, LECC: The "LED Energy Consumption Control" technology allows the illuminator to withstand high temperatures and so ensure the LEDs operate correctly for the entire life of the product.
VIDEOTEC Products : VIDEO
Communication protocol -
Device configuration -
Video compression -
Image resolution -
VIDEOTEC Products : CAMERAS
Resolution -
Image Device -
Zoom -
Horizontal Viewing Angle -
Shutter speed -
White balance -
IP Cameras : Standards and Certifications
Vibration EN50130-5, EN60068-2-6
IP Cameras : Physical Characteristics
Weight 6.5kg (14.3lb)
Operating Temperature from -40°C (-40°F) up to +65°C (149°F)
Relative humidity from 5% up to 95%
Safety EN60950-1, IEC60950-1, EN62368-1, IEC62368-1
Electromagnetic compatibility EN61000-6-3, EN61000-3-2, EN61000-3-3, EN50130- 4, EN55032 (Class B)
RoHS EN IEC 63000
IP protection degree IP66, IP67, IP68 (2 hours, 5m (16ft)), IP69
