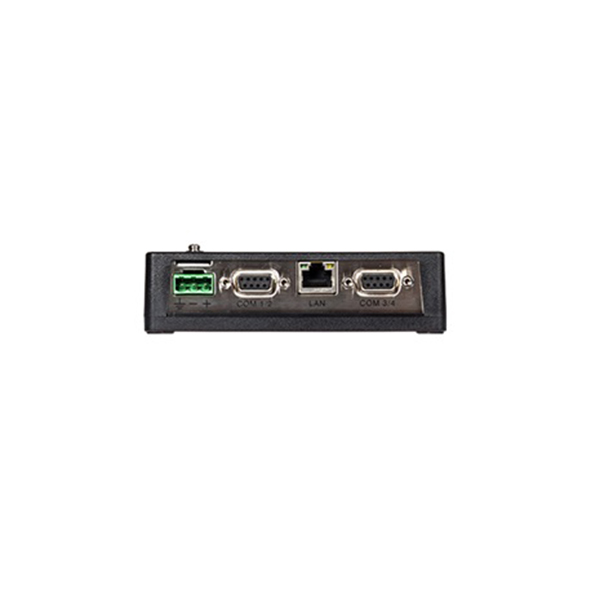

Beijer BoX2 base protocol converter-IoT gateway-edge controller

Beijer BoX2 base protocol converter-IoT gateway-edge controller
Beijer BoX2 base protocol converter-IoT gateway-edge controller

  • Protocol conversion
  • HMI and web server
  • Local database storage, alarm servers, data exchange, reporting, C# scripting
  • IP20
  • -10 °C to +50 °C

  • Brand: BEIJER
  • Model: BoX2 base
0 reviews • Write a review
User Manual
  • Operating Temperature (-10 to 50°C)
  • Relative Humidity (5% – 85% non-condensed)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6)
  • Factory Automation
  • Railway Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BFI-E3-14-0041-3F1Y Frequency inverter
Quickview
Beijer BFI-E3-14-0041-3F1Y Frequency inverter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BFI-E3-24-0041-3F42 Frequency inverter
Quickview
Beijer BFI-E3-24-0041-3F42 Frequency inverter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Converters and IIoT gateways , Protocol Converters-IoT gateways-Edge controllers , Protocol conversion , Communication server for mobile HMI , Factory Automation Products , Railway Transportation Products , BoX2 base

BoX2 makes your machines – old and new – communicate efficiently, however, complex the setup. BoX2 has communication drivers for all major brands of controllers on the market. This makes it easy to route key data and exchange it with the overlying systems in your facility. Optimizing operations and production speed.

BoX2 can operate as a protocol converter enabling two or more different controller devices to exchange data and achieve interoperability. Drivers for the different controllers are installed on BoX2, which converts data from one network into protocols of the network in which data is navigated.


Inquire about the Beijer BoX2 base protocol converter-IoT gateway-edge controller, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

beijer converters : Communication serial
Number of serial ports 2 Port 9pin DSUB
Serial port 1 RS 232 (RTS/CTS)
Serial port 2 RS422/485
Serial port 3 RS 232
Serial port 4 RS 485
beijer converters : Ethernet communication
Number of ethernet ports 1
Ethernet port 1 1x10/100 Base-T (shielded RJ45)
beijer converters : Expansion interface
SD card No
USB 1xUSB 2.0 500mA
beijer converters : System
CPU ARM9 400 MHz
RAM 128 MB
FLASH 256 MB, 200 MB free
beijer converters : Features
Protocol conversion Yes
HMI web server Yes
Local data base storage Yes
C# scripting Yes
Alarm server Yes
beijer converters : Physical Characteristics
Operating temperature -10°C to +50°C
Storage temperature -20° to +60°C
Mounting DIN rail
Shock 15g, half-sine, 11ms according to IEC60068-2-27
Vibration 1g, according to IEC 60068-2-6, Test Fc
Sealing front IP20
Sealing back IP20
Humidity 5% – 85% non-condensed
beijer converters : Standards and Certifications
General CE, FCC, KCC
Safety UL 61010-2-201
