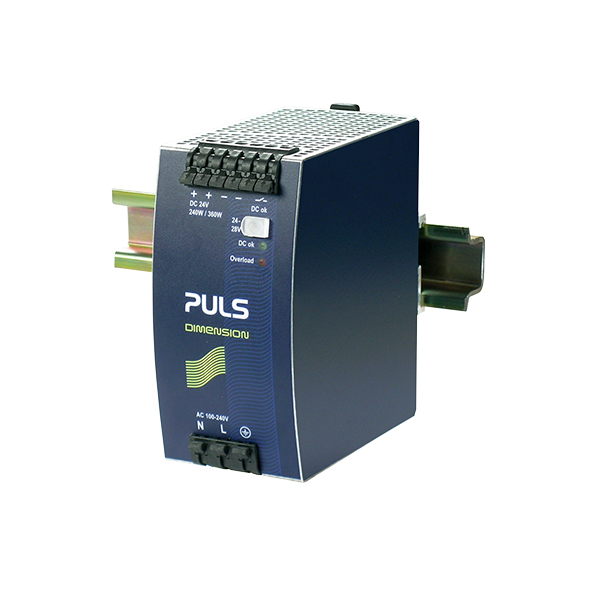

The most outstanding features of this Dimension QSeries DIN-rail power supply are the high efficiency and the small size, which are achieved by a synchronous rectification and further novel design details. The QSeries is part of the Dimension family, existing alongside the lower featured C-Series. With short-term peak power capability of 150% and built-in large sized output capacitors, these features help start motors, charge capacitors and absorb reverse energy and often allow a unit of a lower wattage class to be used.
High immunity to transients and power surges as well as low electromagnetic emission makes usage in nearly every environment possible.
The integrated output power manager, a wide range input voltage design and virtually no input inrush current make installation and usage simple. Diagnostics are easy due to the dry DC-ok contact, a green DC-ok LED and red overload LED. Unique quick-connect spring-clamp terminals allow a safe and fast installation and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.
You can place an order for the PULS QS10.241-C1 DIN-rail Power supply online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
| DIN-rail Power supply : Input Data | |
| AC-Input Voltage | AC 100-240V (± 15%) |
| DC-Input Voltage | DC 110V-150V (-20%/+25%) |
| EN61000-3-2(PFC-Norm) | fulfilled |
| Harmonic Correction | active |
| Power Factor | 0.92 |
| Input Inrush Current Limitation | active |
| Peak turn on current | 4A/7A |
| External Input Fuse Recommendation | min. B-6A / C-4A |
| DIN-rail Power supply : Output Data | |
| nominal Voltage | 24Vdc |
| Adjustment Range | 24-28V |
| Output Current Range | 10-9A |
| Output Current | 9A at 28V, 10A at 24V |
| Output Power | 240W |
| Power Reserves | 50% BonusPower® |
| max. Ripple and Noise Voltage | 50mVpp |
| DIN-rail Power supply : General | |
| Derating | 6W/° at >+60°C |
| Efficency, typ. | 93.5% |
| Power Losses, typ. | 16.7W |
| Connection method | Spring-clamp terminals |
| DC-OK Signal | yes |
| E Classification | eClass 5.1 27049002, eClass 6.x 27049002, eClass 7.x 27049002, eClass 8.0 27049002, eClass 9.0 27040701, ETIM 4.0 EC000599, ETIM 5.0 EC002540, HS Code HS 85044082 |
| DIN-rail Power supply : Physical Characteristics | |
| Mounting | DIN-Rail |
| Dimension | 60mm x 124mm x 117mm |
| Weight | 900g |
| Operating Temperature | -25°C ... +70°C |
| MTBF | 581.000h |
| DIN-rail Power supply : Package Checklist | |
| Packaging Unit | 1pc |
