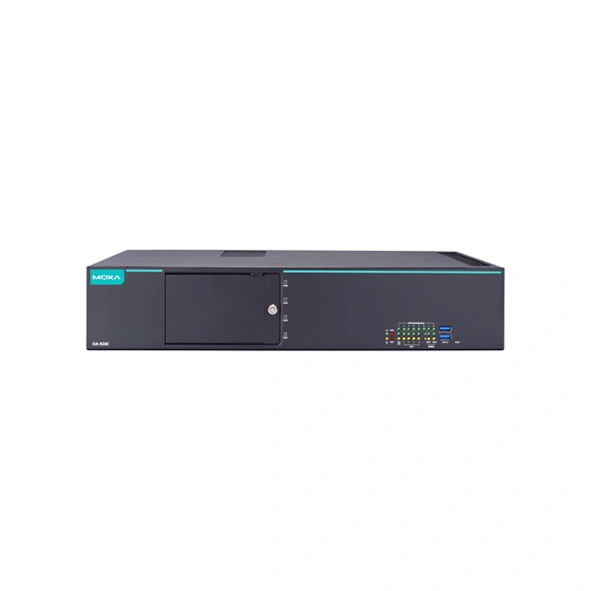

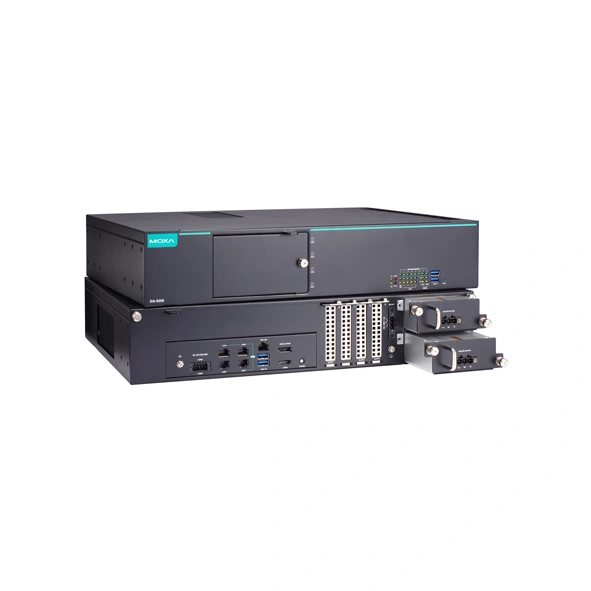

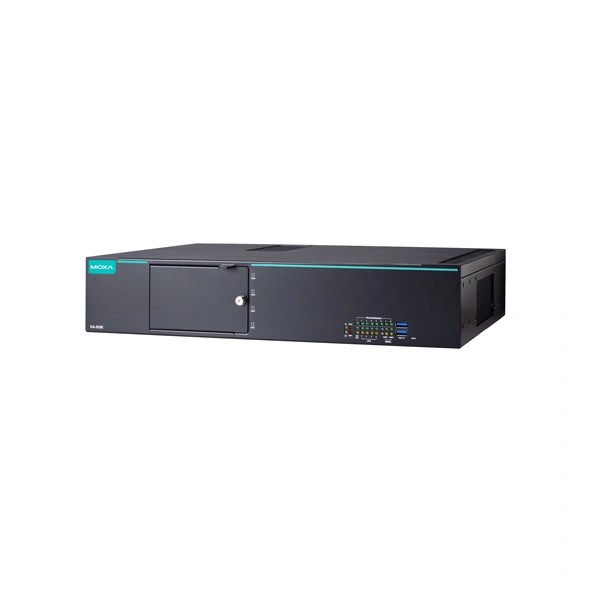

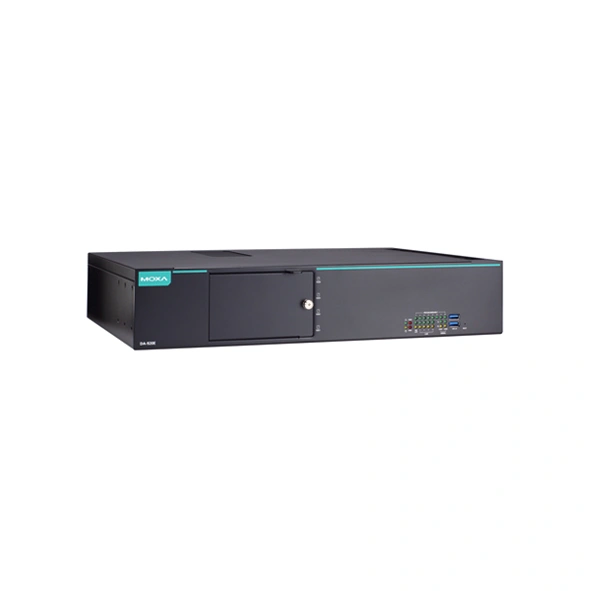

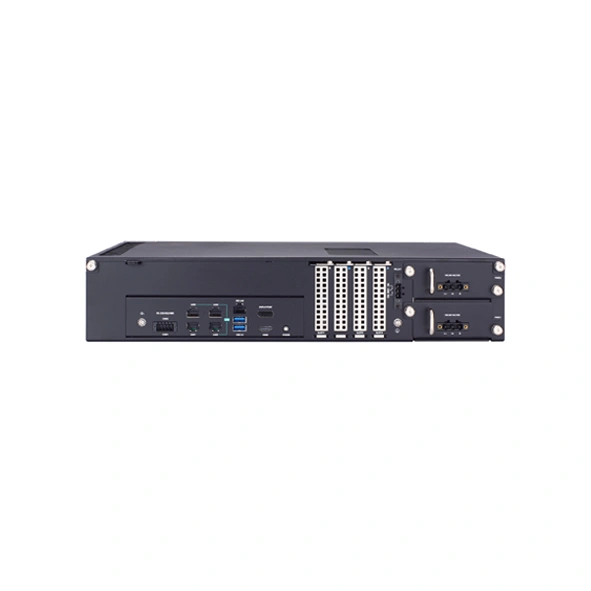

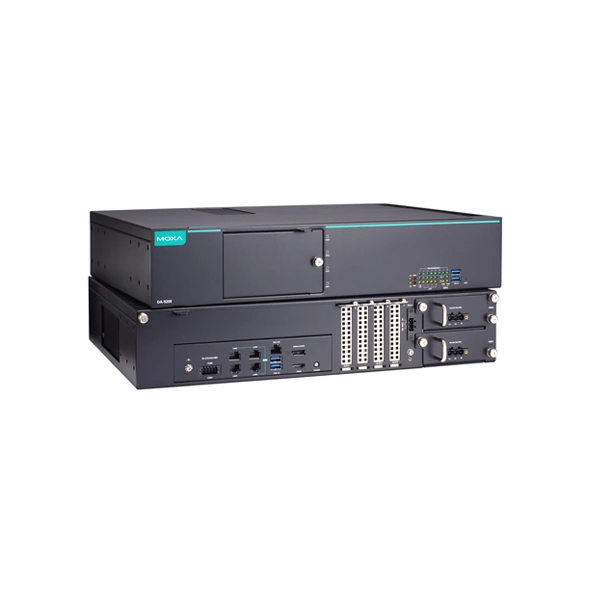

Name: MOXA DA-920E-X08-HW Industrial Computer
Brand: MOXA
SKU: DA-920E-X08-HW

MOXA DA-920E-X08-HW Industrial Computer

Key Features:

CPU: Intel® Xeon® D-1834 (8 Cores)
2 x 10/100/1000 Mbps ports (RJ45)
3 x 10/100/1000/2500 Mbps ports (RJ45)
2 x RS-232/422/485 serial ports
IP20-rated metal body design
100-240 VAC/VDC, 24-110 VDC input power
Rackmount installation design
-25 to 55°C operating temperature
1 x DA-PWR-200-HV / 1 x DA-PWR-200-WV Included

Brand: MOXA
Model: DA-920E-X08-HW

0 reviews • Write a review

ENQUIRE NOW

Add to Wish List Compare this Product

Datasheet

Operating Temperature (-25 to 55°C)
Relative Humidity (5 to 95% non-condensing)
IP protection (IP20)

Power Utility
Railway Transportation

$0.00

Ex Tax: $0.00

From Same Category
Same Brand

Quickview

MOXA DA-920E-X08-H Industrial Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA DA-920E-X08-HH Industrial Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA DA-920E-X08-W Industrial Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA DA-920E-X08-WW Industrial Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

DA-920E is a 2U rackmount fanless industrial server built for harsh environments, virtualized protection, automation, and control (vPAC), and substation automation. The computer is compliant with IEC 61850-3, IEEE 1613, and IEC 60255 requirements. Powered by an Intel® Xeon® D processor with up to 256 GB ECC memory, the DA-920E delivers high-performance, deterministic reliability, and is optimized for virtualization applications. With single or dual wide-range PSUs and RAID storage, the DA-920E ensures reliable computing in modern substations.

You can also find the DA-920E-X08-H, DA-920E-X08-W, DA-920E-X08-WW, and DA-920E-X08-HH models in the MOXA DA-920E Series.

Experience the convenient way to purchase the MOXA DA-920E-X08-HW Industrial Computer in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about pricing and sales conditions for a wonderful buying experience.

Industrial Computer : Computer
CPU	Intel® Xeon® D-1834 (8 Cores)
Supported OS	Windows drivers: Windows Server 2022, Windows Server 2025; Linux drivers (via x86 Linux SDK Wizard): Canonical® Ubuntu® Server LTS 22.04, Canonical® Ubuntu® Server LTS 24.04, Red Hat® Enterprise Linux 9, Debian 13
OS (pre-installed)	-
System Memory	RDIMM/UDIMM DDR4 slots x 4 (256 GB max.)
Graphics Controller	AST2600 (DisplayPort), SM768 (HDMI)
Storage Slot	M.2 M-key 2280 sockets x 1 (NVMe PCIe Gen 3 x2), 2.5-inch SSD slots x 4 (SATA)
Industrial Computer : Interface
LAN	2 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector), 1 shared LAN and 1 dedicated management LAN, out-of-band management support; 3 x Auto-sensing 10/100/1000/2500 Mbps ports (RJ45 connector)
Magnetic Isolation Protection	-
Digital Input/Output Channels	-
Serial Ports	2 x RS-232/422/485 ports (software-selectable, Terminal-block connector)
USB	4 x USB 3.2 hosts (Gen1, font 2, rear 2)
Expansion Slot	PCIe x16 slot x 1 (Gen 4, low-profile), PCIe x8 slot x 1 (Gen 3, low-profile), PCIe x4 slots x 1 (Gen 3, low-profile)
Industrial Computer : Serial Communication Parameters
Baudrate	-
Data Bits	-
Stop Bits	-
Parity	-
Flow Control	-
Industrial Computer : Serial Signals
RS-232	TxD, RxD, RTS, CTS, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
Industrial Computer : LED Indicators
System	Power x 1, Storage x 1, Power failure detection x 2, Programmable x 8
LAN	2 per port (10/100/1000/2500 Mbps)
Serial	2 per port (Tx, Rx)
Industrial Computer : Power Requirements
Input Voltage	100 to 240 VAC/DC, 24 to 110 VDC
Input Current	-
Power Consumption	-
Industrial Computer : General
Alert Tools	-
Automatic Reboot Trigger	-
MTBF	764,241 hrs
Industrial Computer : Physical Characteristics
Dimensions	without ears: 440 x 330 x 88 mm (17.32 x 12.99 x 3.46 in)
Housing	Metal
Operating temperature	-25 to 55°C (-13 to 131°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Relative humidity	5 to 95% (non-condensing)
Standards and Certifications	EMC: EN 61000-6-2/-6-4, EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8: 20 A/m, IEC 61000-4-11; Protection Relay: IEC 60255; International Approval: BSMI, KC; Power Substation: IEC 61850-3, IEEE 1613; Railway: EN 50121-4; Safety: UL 62368-1; Green Product RoHS, CRoHS, WEEE, Telcordia SR-332 Standard Issue 4
Weight	9530 g (21.01 lb)
Mounting	19-inch rack mounting
