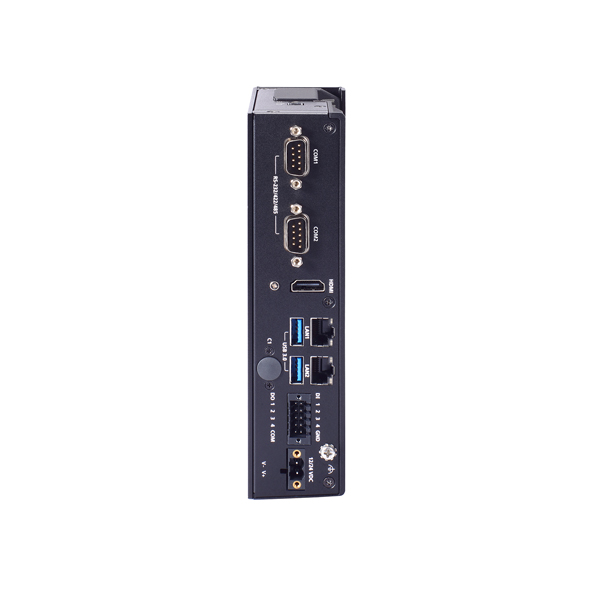

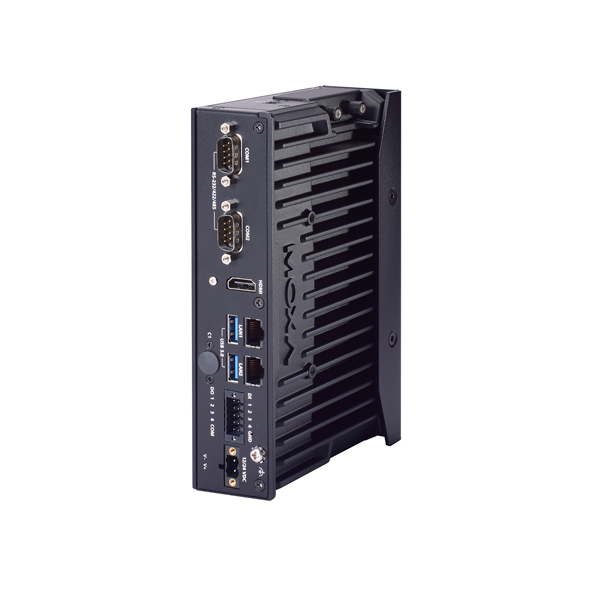

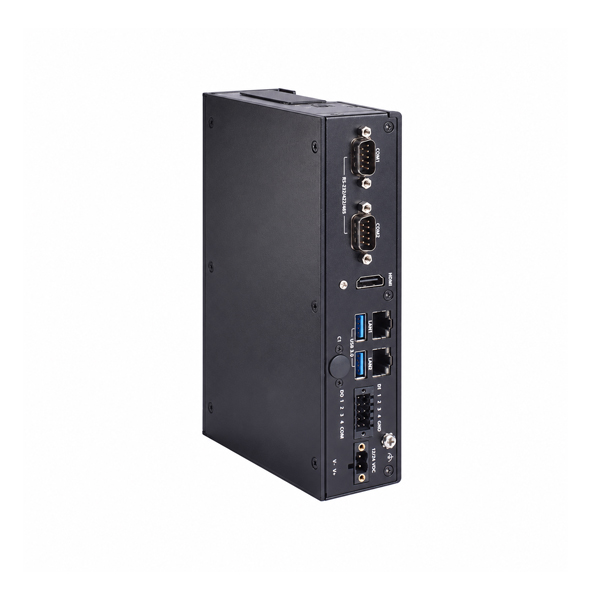

Name: MOXA BXP-A101-E4-DR-T Industrial Computer
Brand: MOXA
SKU: BXP-A101-E4-DR-T

MOXA BXP-A101-E4-DR-T Industrial Computer

Key Features:

Box-type computer with a fanless design
CPU: Intel Atom® x6425E (2.00 GHz)
2 x 10/100/1000 Mbps ports (RJ45)
2 x RS-232/422/485 serial ports (DB9)
12/24 VDC input power range
IP20-rated metal body design
DIN-rail mount installation design
-30 to 70°C operating temperature

Brand: MOXA
Model: BXP-A101-E4-DR-T

0 reviews • Write a review

ENQUIRE NOW

Add to Wish List Compare this Product

Datasheet

Operating Temperature (-30 to 70°C)
Relative Humidity (5 to 95% non-condensing)
IP protection (IP20)
Shock (IEC 60068-2-27)
Vibration (IEC 60068-2-6, IEC 60068-2-64)
Hazardous Location (Class 1 Division 2, ATEX, IECEx)

Marine
Oil & Gas

$0.00

Ex Tax: $0.00

From Same Category
Same Brand

Quickview

MOXA BXP-A101-E2-DR-T Industrial Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA BXP-A101-E2-M2-DR-T Industrial Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA BXP-A101-E2-M2-T Industrial Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA BXP-A101-E2-T Industrial Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA BXP-A101-E4-M2-DR-T Industrial Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA BXP-A101-E4-M2-T Industrial Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA BXP-A101-E4-T Industrial Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

The BXP-A101 computers run on an Intel Atom® X processor and include 2 Gigabit Ethernet ports, 2 software-selectable RS-232/422/485 serial ports, 4 digital inputs, and 4 digital outputs. A dual-storage design that includes CFast and SD slots, and an internal M.2 socket enables easy storage expansion. A removable cover design enables quick and easy storage swap, delivering one more user-friendly feature in a reliable, durable, and versatile platform.

The BXP-A101 Series has compact wall-mounting and DIN-rail mounting models. The computers feature a fanless design and can withstand temperatures from -30 to 70°C, making them well-suited for harsh operating environments. The built-in TPM 2.0 module secures the platform from unauthorized access. The BXP-A101 is an intelligent computing solution that perfectly fulfills both OT and IT requirements of industrial environments.

You can also find the BXP-A101-E4-M2-DR-T, BXP-A101-E4-M2-T, BXP-A101-E2-DR-T, and BXP-A101-E2-M2-T models in the MOXA BXP-A101 Series.

You can explore our wide range of products and enquire about the MOXA BXP-A101-E4-DR-T Industrial Computer for your industrial automation needs. Our sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the Middle East.

Industrial Computer : Computer
CPU	Intel Atom® x6425E processor (quad-core, 1.5 M cache, 2.00 GHz)
Supported OS	Windows images and drivers supported: Windows 11 IoT Enterprise LTSC 2024 64-bit, Windows 11 Professional 64-bit, Windows 10 IoT Enterprise LTSC 2021 64-bit; Linux image supported: Debian 12 (kernel 6.10); Linux drivers supported: Debian 12 (kernel 6.10), Ubuntu 22.04 LTS (kernel 5.15), RHEL 9 (kernel 5.14)
OS (pre-installed)	-
System Memory	8 GB DDR4
Graphics Controller	Intel® UHD Graphics
Storage Slot	CFast slot x 1 (SATAIII interface), SD slot x 1, SD 3.0 interface (SDHC/SDXC)
Industrial Computer : Interface
LAN	2 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector)
Magnetic Isolation Protection	1.5 kV (built-in)
Digital Input/Output Channels	4 x Digital inputs, 4 x Digital outputs (Spring-type Euroblock terminal connector)
Serial Ports	2 x RS-232/422/485 ports (software-selectable, DB9 male connector)
USB	2 x USB 3.0 hosts, type-A connectors
Expansion Slot	mPCIe slots x 1
Industrial Computer : Serial Communication Parameters
Baudrate	50 bps to 115.2 kbps
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	RTS/CTS, XON/XOFF, Automatic Data Direction Control (ADDC) for RS-485, RTS Toggle (RS-232 only)
Industrial Computer : Serial Signals
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
Industrial Computer : LED Indicators
System	Power x 1
LAN	2 per port (10/100/1000 Mbps)
Serial	-
Industrial Computer : Power Requirements
Input Voltage	12/24 VDC
Input Current	-
Power Consumption	50 W
Industrial Computer : General
Alert Tools	Built-in RTC (real-time clock) with lithium-battery backup
Automatic Reboot Trigger	Built-in WDT
MTBF	1,581,038 hrs
Industrial Computer : Physical Characteristics
Dimensions	186 x 121 x 46.7 mm (7.32 x 4.76 x 1.84 in)
Housing	Metal
Operating temperature	-30 to 70°C (-22 to 158°F)
Storage Temperature	-40 to 70°C (-40 to 158°F)
Relative humidity	5 to 95% (non-condensing)
Standards and Certifications	EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A, BSMI; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz; Safety: BSMI, IEC 62368-1, UL 62368-1; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; Package Drop Test: ISTA 1A; Package Vibration Test: ISTA 1A; IP20; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore), GB, DNV, Hazardous Location: Class 1 Division 2, ATEX, IECEx
Weight	1,500 g (3.3 Ib)
Mounting	DIN-rail mounting

Datasheet
