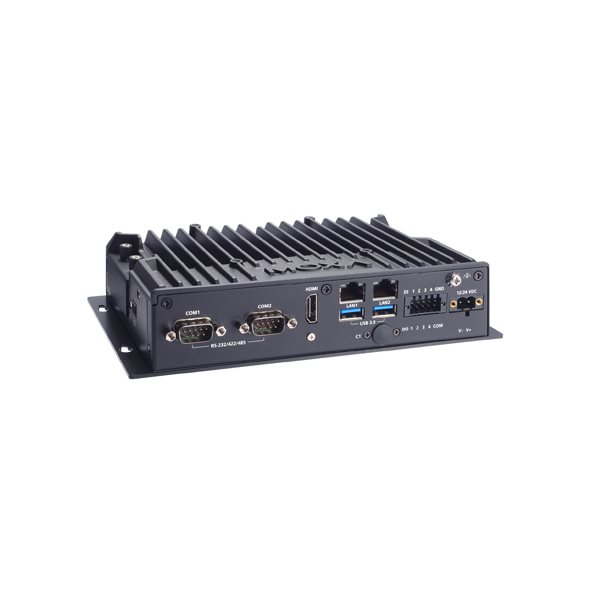

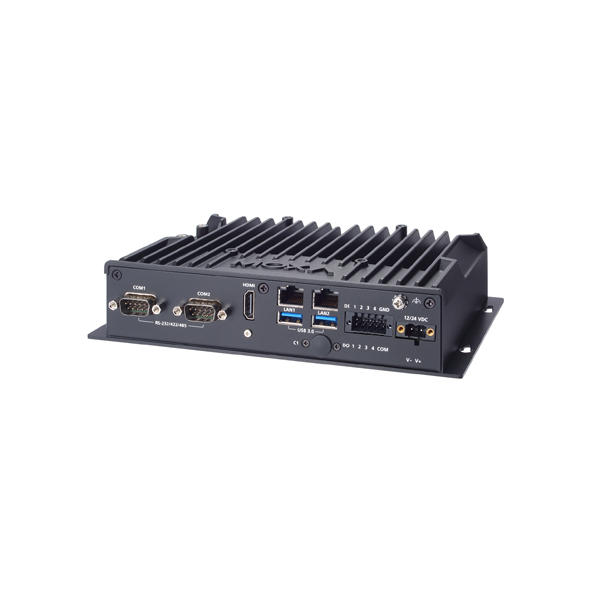

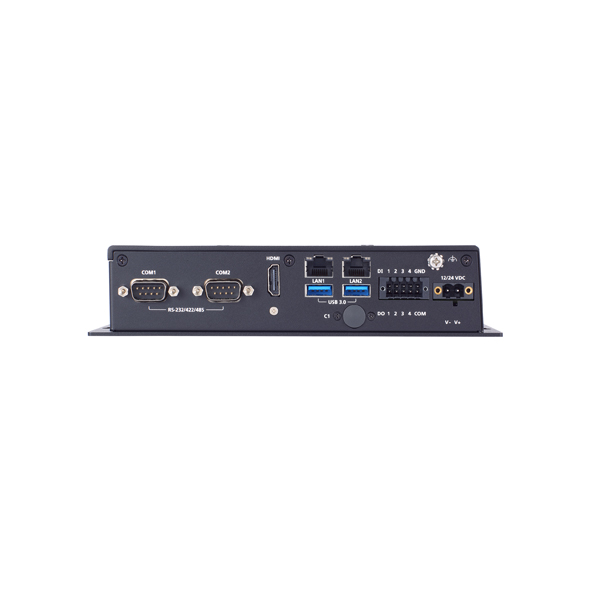

Name: MOXA BXP-A101-E2-M2-T Industrial Computer
Brand: MOXA
SKU: BXP-A101-E2-M2-T

MOXA BXP-A101-E2-M2-T Industrial Computer

Key Features:

Box-type computer with a fanless design
CPU: Intel Atom® x6211E (1.30 GHz)
2 x 10/100/1000 Mbps ports (RJ45)
2 x RS-232/422/485 serial ports (DB9)
12/24 VDC input power range
IP20-rated metal body design
Wall-mount installation design
-30 to 70°C operating temperature

Brand: MOXA
Model: BXP-A101-E2-M2-T

0 reviews • Write a review

ENQUIRE NOW

Add to Wish List Compare this Product

Datasheet

Operating Temperature (-30 to 70°C)
Relative Humidity (5 to 95% non-condensing)
IP protection (IP20)
Shock (IEC 60068-2-27)
Vibration (IEC 60068-2-6, IEC 60068-2-64)
Hazardous Location (Class 1 Division 2, ATEX, IECEx)

Marine
Oil & Gas

$0.00

Ex Tax: $0.00

From Same Category
Same Brand

Quickview

MOXA BXP-A101-E2-DR-T Industrial Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA BXP-A101-E2-M2-DR-T Industrial Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA BXP-A101-E2-T Industrial Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA BXP-A101-E4-DR-T Industrial Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA BXP-A101-E4-M2-DR-T Industrial Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA BXP-A101-E4-M2-T Industrial Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA BXP-A101-E4-T Industrial Computer

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

The BXP-A101 computers run on an Intel Atom® X processor and include 2 Gigabit Ethernet ports, 2 software-selectable RS-232/422/485 serial ports, 4 digital inputs, and 4 digital outputs. A dual-storage design that includes CFast and SD slots, and an internal M.2 socket enables easy storage expansion. A removable cover design enables quick and easy storage swap, delivering one more user-friendly feature in a reliable, durable, and versatile platform.

The BXP-A101 Series has compact wall-mounting and DIN-rail mounting models. The computers feature a fanless design and can withstand temperatures from -30 to 70°C, making them well-suited for harsh operating environments. The built-in TPM 2.0 module secures the platform from unauthorized access. The BXP-A101 is an intelligent computing solution that perfectly fulfills both OT and IT requirements of industrial environments.

You can also find the BXP-A101-E2-DR-T, BXP-A101-E2-M2-DR-T, BXP-A101-E4-DR-T, and BXP-A101-E4-M2-T models in the MOXA BXP-A101 Series.

You can buy the MOXA BXP-A101-E2-M2-T Industrial Computer by inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Enjoy cost-effective shipping options at a specific time to your location.

Industrial Computer : Computer
CPU	Intel Atom® x6211E processor (dual-core, 1.5 M cache, 1.30 GHz)
Supported OS	Windows images and drivers supported: Windows 11 IoT Enterprise LTSC 2024 64-bit, Windows 11 Professional 64-bit, Windows 10 IoT Enterprise LTSC 2021 64-bit; Linux image supported: Debian 12 (kernel 6.10); Linux drivers supported: Debian 12 (kernel 6.10), Ubuntu 22.04 LTS (kernel 5.15), RHEL 9 (kernel 5.14)
OS (pre-installed)	-
System Memory	8 GB DDR4
Graphics Controller	Intel® UHD Graphics
Storage Slot	CFast slot x 1 (SATAIII interface), SD slot x 1, SD 3.0 interface (SDHC/SDXC), M.2 M-key 2242 slot x 1
Industrial Computer : Interface
LAN	2 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector)
Magnetic Isolation Protection	1.5 kV (built-in)
Digital Input/Output Channels	4 x Digital inputs, 4 x Digital outputs (Spring-type Euroblock terminal connector)
Serial Ports	2 x RS-232/422/485 ports (software-selectable, DB9 male connector)
USB	2 x USB 3.0 hosts, type-A connectors
Expansion Slot	mPCIe slots x 1
Industrial Computer : Serial Communication Parameters
Baudrate	50 bps to 115.2 kbps
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	RTS/CTS, XON/XOFF, Automatic Data Direction Control (ADDC) for RS-485, RTS Toggle (RS-232 only)
Industrial Computer : Serial Signals
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
Industrial Computer : LED Indicators
System	Power x 1
LAN	2 per port (10/100/1000 Mbps)
Serial	-
Industrial Computer : Power Requirements
Input Voltage	12/24 VDC
Input Current	-
Power Consumption	50 W
Industrial Computer : General
Alert Tools	Built-in RTC (real-time clock) with lithium-battery backup
Automatic Reboot Trigger	Built-in WDT
MTBF	1,581,038 hrs
Industrial Computer : Physical Characteristics
Dimensions	207 x 116.1 x 44.5 mm (8.14 x 4.57 x 1.75 in)
Housing	Metal
Operating temperature	-30 to 70°C (-22 to 158°F)
Storage Temperature	-40 to 70°C (-40 to 158°F)
Relative humidity	5 to 95% (non-condensing)
Standards and Certifications	EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A, BSMI; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz; Safety: BSMI, IEC 62368-1, UL 62368-1; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; Package Drop Test: ISTA 1A; Package Vibration Test: ISTA 1A; IP20; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore), GB, DNV, Hazardous Location: Class 1 Division 2, ATEX, IECEx
Weight	1,225 g (2.7 lb)
Mounting	Wall mounting
