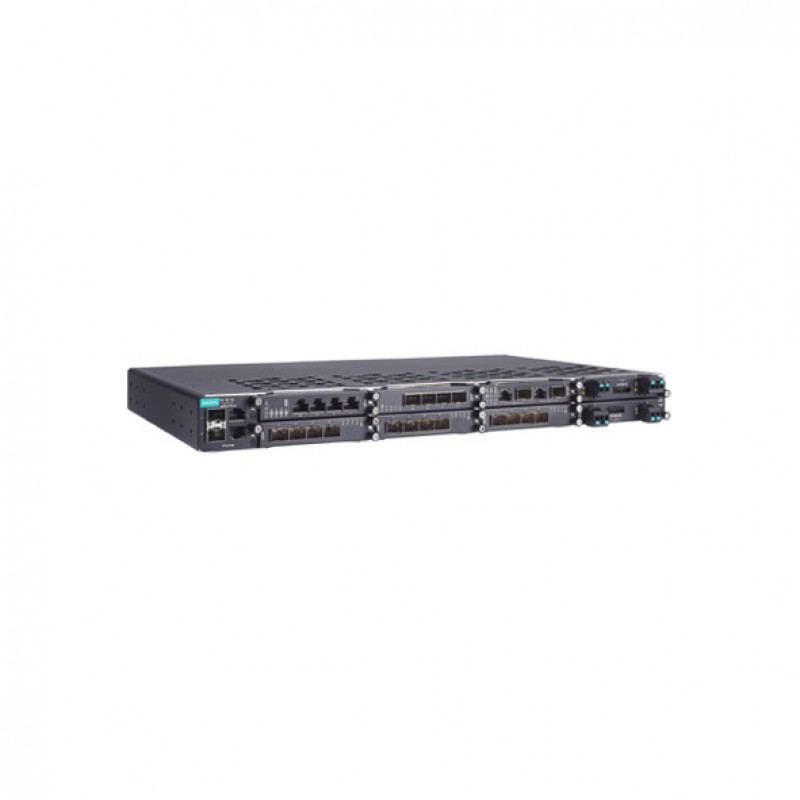

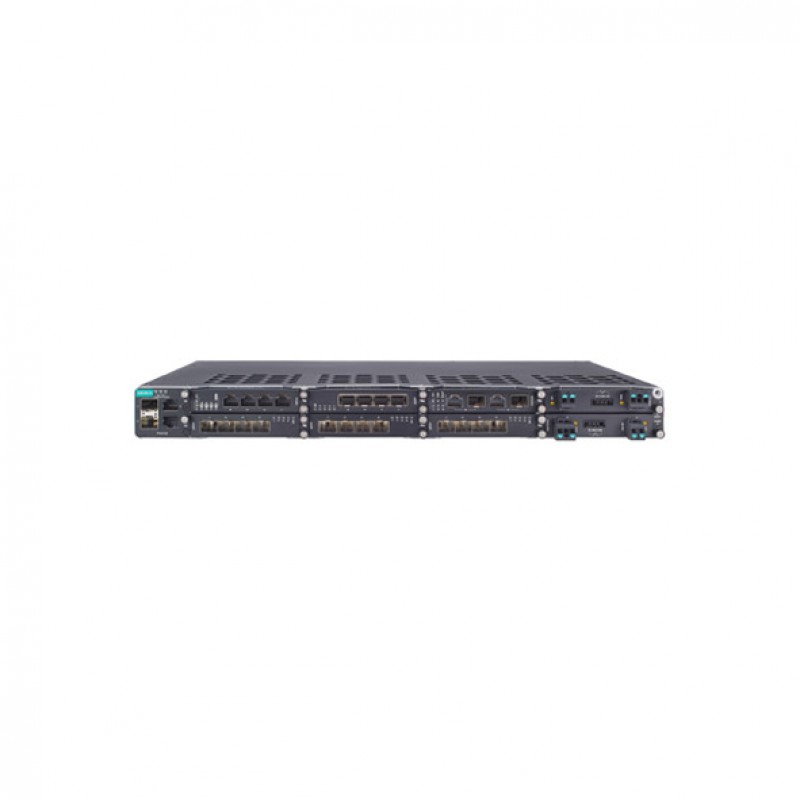

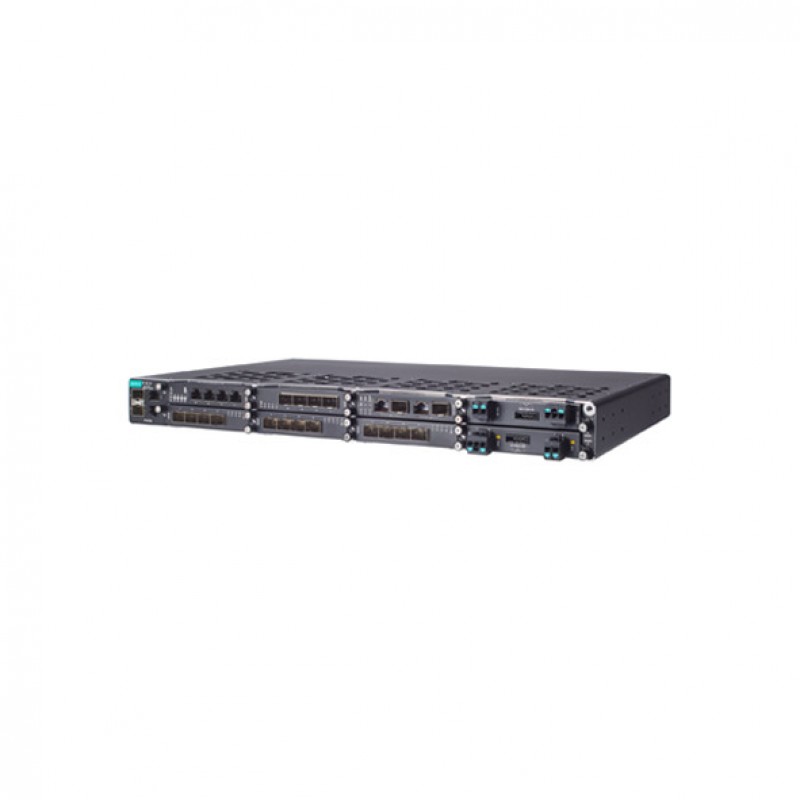

MOXA PT-G7828 Managed Ethernet Switch
- Modular Managed Ethernet Switch
- Layer 3 switching functionality
- 2 x 10/100/1000BaseT(X) Ports (RJ45 connector)
- 2 x 100/1000BaseSFP Ports
- 6 x 4-Port slots for combination with LM-7000H modules
- 24 to 48 VDC or 110 to 220 VDC/VAC Input power ranges
- Rackmount installation design
- -40 to 85°C operating temperature range
.png)
Description
The PT-G7828 modular switches provide up to 28 Gigabit ports, including 4 fixed ports, 6 interface module slots, and 2 power module slots to ensure sufficient flexibility for a variety of applications. The PT-G7828 Series is designed to meet evolving network requirements, including a hot-swappable module design that enables you to change or add devices without shutting down your device.
The multiple Ethernet modules (RJ45, SFP, and PoE) and power units (24/48 VDC, 110/220 VAC/VDC) provide even greater flexibility as well as suitability for different operating conditions. The switches support a full Gigabit platform that provides enough bandwidth to set up an Ethernet backbone. Certifications include IEC 61850 Edition 2 Class 2 to ensure high availability and wide usage.
You can also find the PT-G7728 model in the IEC 61850-3 Ethernet Switches.
Enjoy the ease of online inquiries for the MOXA PT-G7828 Managed Ethernet Switch. You can submit your inquiry on our website and get the most friendly communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 28 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | : 2 Ports (Up to 26 Ports) |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | : 2 Slots (Up to 26 Slots) |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | Up to 24 Ports |
| Other ports | : 6 x 4-Port slots for combination with LM-7000H modules, 1 x RS-232 Console Port (RJ45 connector), 1 x USB Port (Type A connector) |
| Features and capabilities | |
| Backup | : ABC-02 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | With PWR-HV-P48 installed: PWR input current (switch system), Max. 0.11 A @ 110 VDC, Max. 0.06 A @ 220 VDC, Max. 0.29 A @ 110 VAC, Max. 0.18 A @ 220 VAC, EPS input current (PoE system), Max. 0.53 A @ 48 VDC, (excluding power consumption of PoE devices); With PWR-LV-P48 installed: PWR input current (switch system), Max. 0.53 A @ 24 VDC, Max. 0.28 A @ 48 VDC, EPS input current (PoE system), Max. 0.53 A @ 48 VDC, (excluding power consumption of PoE devices); With PWR-HV-NP installed: PWR input current (switch system), Max. 0.11 A @ 110 VDC, Max. 0.06 A @ 220 VDC, Max. 0.29 A @ 110 VAC, Max. 0.18 A @ 220 VAC; With PWR-LV-NP installed: PWR input current (switch system), Max. 0.53 A @ 24 VDC, Max. 0.28 A @ 48 VDCMax. 0.18 A @ 220 VAC, EPS input current (PoE System), Max. 0.53 A @ 48 VDC (excluding power consumption of PoE devices) |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | With PWR-HV-P48 installed: 110/220 VDC/VAC for the switch system, 48 VDC for PoE system (53 to 57 VDC is recommended for PoE+ devices); With PWR-LV-P48 installed: 24/48 VDC for the switch system, 48 VDC for PoE system (53 to 57 VDC is recommended for PoE+ devices); With PWR-HV-NP installed: 110/220 VDC/VAC for the switch system; With PWR-LV-NP installed: 24/48 VDC for the switch system |
| Operating Voltage | With PWR-HV-P48 installed: 88 to 300 VDC, 90 to 264 VAC for the switch system, 46 to 57 VDC for PoE systems; With PWR-LV-P48 installed: 18 to 72 VDC for the switch system, 46 to 57 VDC for PoE systems; With PWR-HV-NP installed: 88 to 300 VDC, 90 to 264 VAC for the switch system; With PWR-LV-NP installed: 18 to 72 VDC for the switch system |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 449,542 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 3 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 443 x 44 x 280 mm (17.44 x 1.73 x 11.02 in) |
| Housing | - |
| Installation | 19-inch rack mounting |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Power Substation: IEC 61850-3 Edition 2 Class 2 (EMC), IEEE 1613; Railway: EN 50121-4; Safety: IEC 62368-1, UL 62368-1; IP30; Telcordia (Bellcore), GB |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 3080 g (6.8 lb) |
| Standards and protocols | |
| Protocols and work standards | Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2, V-ON, MRP, EtherNet/IP, Modbus TCP |
| Protocols and management standards | IPv4/IPv6, SNMP Inform, SNMPv1/v2c/v3, DHCP Server/Client, DHCP Option 66/67/82, BOOTP, TFTP, LLDP, RARP, HTTP, HTTPS, Telnet, Flow control, Back Pressure Flow Control, Port Mirror, Fiber check, Dying Gasp, SMTP, Syslog, IGMP v1/v2/v3, GMRP, GVRP, 802.1Q, QinQ VLAN |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
