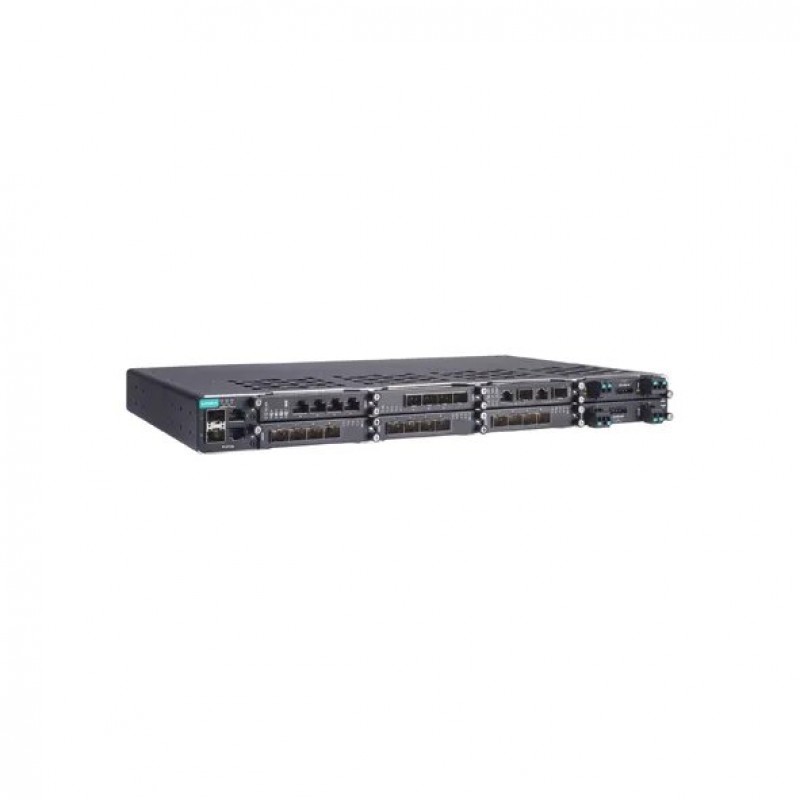

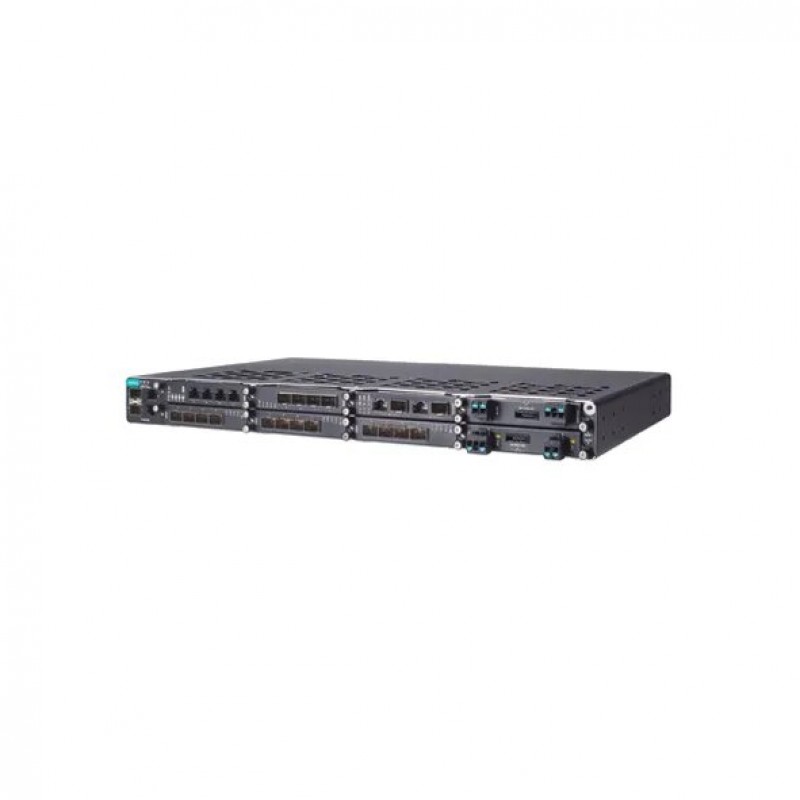

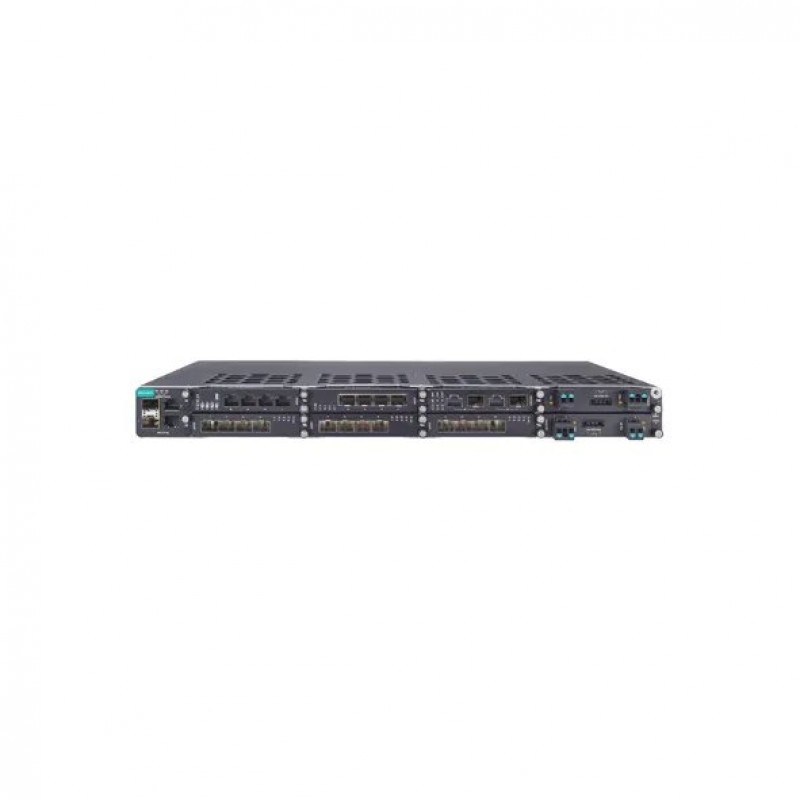

MOXA PT-G7728 Managed Ethernet Switches
- Modular Managed Ethernet Switch
- 2 x 10/100/1000BaseT(X) Ports (RJ45 connector)
- 2 x 100/1000BaseSFP Ports
- 6 x 4-Port slots for combination with LM-7000H modules
- 24 to 48 VDC or 110 to 220 VDC/VAC Input power ranges
- Rackmount installation design
- -40 to 85°C operating temperature range
.png)
Description
The PT-G7728 modular switches provide up to 28 Gigabit ports, including 4 fixed ports, 6 interface module slots, and 2 power module slots to ensure sufficient flexibility for a variety of applications. The PT-G7728 Series is designed to meet evolving network requirements, including a hot-swappable module design that enables you to change or add devices without shutting down your device.
The multiple Ethernet modules (RJ45, SFP, and PoE) and power units (24/48 VDC, 110/220 VAC/VDC) provide even greater flexibility as well as suitability for different operating conditions. The switches support a full Gigabit platform that provides enough bandwidth to set up an Ethernet backbone. Certifications include IEC 61850 Edition 2 Class 2 to ensure high availability and wide usage.
You can also find the PT-G7828 model in the IEC 61850-3 Ethernet Switches.
Experience the convenient way to purchase the MOXA PT-G7728 Managed Ethernet Switches in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.
Specification
| Interface | |
|---|---|
| Number of ports | 28 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | : 2 Ports (Up to 26 Ports) |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | : 2 Slots (Up to 26 Slots) |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | Up to 24 Ports |
| Other ports | : 6 x 4-Port slots for combination with LM-7000H modules, 1 x RS-232 Console Port (RJ45 connector), 1 x USB Port (Type A connector) |
| Features and capabilities | |
| Backup | : ABC-02 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | With PWR-HV-P48 installed: PWR input current (switch system), Max. 0.11 A @ 110 VDC, Max. 0.06 A @ 220 VDC, Max. 0.29 A @ 110 VAC, Max. 0.18 A @ 220 VAC, EPS input current (PoE system), Max. 0.53 A @ 48 VDC, (excluding power consumption of PoE devices); With PWR-LV-P48 installed: PWR input current (switch system), Max. 0.53 A @ 24 VDC, Max. 0.28 A @ 48 VDC, EPS input current (PoE system), Max. 0.53 A @ 48 VDC, (excluding power consumption of PoE devices); With PWR-HV-NP installed: PWR input current (switch system), Max. 0.11 A @ 110 VDC, Max. 0.06 A @ 220 VDC, Max. 0.29 A @ 110 VAC, Max. 0.18 A @ 220 VAC; With PWR-LV-NP installed: PWR input current (switch system), Max. 0.53 A @ 24 VDC, Max. 0.28 A @ 48 VDC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | With PWR-HV-P48 installed: 110/220 VDC/VAC for the switch system, 48 VDC for PoE system (53 to 57 VDC is recommended for PoE+ devices); With PWR-LV-P48 installed: 24/48 VDC for the switch system, 48 VDC for PoE system (53 to 57 VDC is recommended for PoE+ devices); With PWR-HV-NP installed: 110/220 VDC/VAC for the switch system; With PWR-LV-NP installed: 24/48 VDC for the switch system |
| Operating Voltage | With PWR-HV-P48 installed: 88 to 300 VDC, 90 to 264 VAC for the switch system, 46 to 57 VDC for PoE systems; With PWR-LV-P48 installed: 18 to 72 VDC for the switch system, 46 to 57 VDC for PoE systems; With PWR-HV-NP installed: 88 to 300 VDC, 90 to 264 VAC for the switch system; With PWR-LV-NP installed: 18 to 72 VDC for the switch system |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 449,542 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 443 x 44 x 280 mm (17.44 x 1.73 x 11.02 in) |
| Housing | - |
| Installation | 19-inch rack mounting |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Power Substation: IEC 61850-3 Edition 2 Class 2 (EMC), IEEE 1613; Railway: EN 50121-4; Safety: IEC 62368-1, UL 62368-1; IP30; Telcordia (Bellcore), GB |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 3080 g (6.8 lb) |
| Standards and protocols | |
| Protocols and work standards | Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2, V-ON, MRP, EtherNet/IP, Modbus TCP |
| Protocols and management standards | IPv4/IPv6, SNMP Inform, SNMPv1/v2c/v3, DHCP Server/Client, DHCP Option 66/67/82, BOOTP, TFTP, LLDP, RARP, HTTP, HTTPS, Telnet, Flow control, Back Pressure Flow Control, Port Mirror, Fiber check, Dying Gasp, SMTP, Syslog, IGMP v1/v2/v3, GMRP, GVRP, 802.1Q, QinQ VLAN |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
