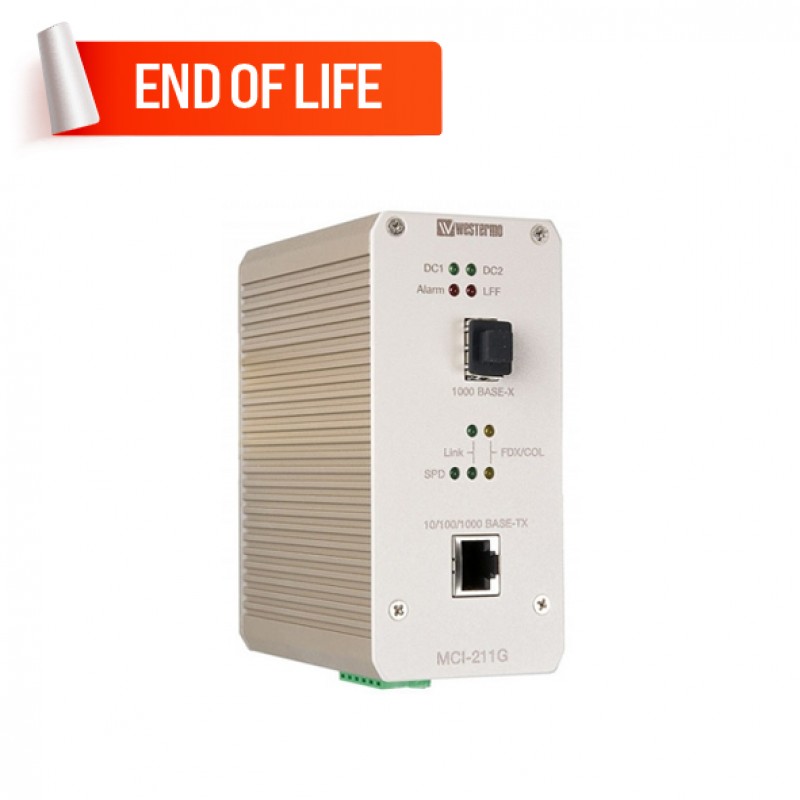

Westermo MCI-211G Industrial Ethernet to Fiber Media Converter
- Industrial Gigabit Ethernet Media Converter
- 1 x 10/100/1000 Base-TX Ethernet port (RJ45 connector)
- 1 x SFP socket for Gigabit Ethernet SFP Transceiver (Terminal block connector)
- IP31-rated Rugged aluminum alloy case
- DIN-Rail mount installation design
- 24V DC (12~48V) input power with polarity reverse and over-current protections
- –25 ~ 70ºC operating temperature range
- Brand: WESTERMO
- Product Code: 3624-0001
.png)
Description
The Westermo MCI-211G is an industrial Gigabit Ethernet
media converter. It has a rugged aluminum alloy case with IP-31 grade ingress
protection as well as providing excellent heat dissipation characteristics.
The MCI-211G can operate over a wide voltage input range. It
also has dual power inputs to ensure making the unit is ideal in applications
where a secondary power source is used to maintain high system integrity. The
Westermo MCI-211G uses a hot-swappable Small Form Factor Pluggable (SFP) Fibre
transceiver, allowing the unit to operate over pretty much any type and distance
of fibre supported by SFP technology.
The MCI-211G features Link Fault Forwarding (LFF) in order to forward link status changes to alert remote or central management systems via the connected media. In industrial systems, however, alarms can be shown on the fault contact, giving an alternative method of fault detection. This fault contact can be easily configured with a simple DIP switch.
End of Life Product - Replacement Available
Please note that the MCI-211G has been phased out and replaced by the MCW-211-F1G-T1G.
Experience the convenient way to
purchase the Westermo MCI-211G Industrial Ethernet to Fiber Media Converter in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and
Oman). Our sales experts will provide the most helpful information about the
price and sale conditions for a wonderful buying experience.
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | : 1 Port |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 1000Mb Fiber optic multi mode (Gigabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 1000Mb Fiber optic single mode (Gigabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | : 1 Port (Terminal block connector) |
| M12 port | |
| Alert Output | |
| Magnetic Isolation Protection | |
| Standards and protocols | |
| Protocols and work standards | IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T,, IEEE802.3z Gigabit Ethernet Fibre, IEEE802.3x flow control and back-pressure, IEEE802.1p Class of Service, IEEE802.1Q Quality of Service |
| General | |
| Maximum cable length for data transfer | - |
| MTBF | - |
| Power Requirements | |
| Input Voltage | DC 24V (12~48V) |
| Input Current | Maximum 1A current at DC 24 |
| Overload Current Protection | Supported |
| Type of power input | 6-pin removable terminal block |
| Power Consumption | 8 Watts @ DC 24 V (Maximum) |
| Physical Characteristics | |
| Standards and Certifications | Ingress protection: IP31; ; Vibration: IEC 60068-2-6 (sine); Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Hi-Pot: AC 1.5 KV on port to port and port to power; EMI: FCC Class A, CE/EN55022; EMC: immunity interface EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11; Safety: CE/EN60950 |
| Housing | Aluminum |
| Dimensions | 120 mm (H) x 55 mm (W) x108 mm (D) (with DIN rail clip) |
| Weight | 0.904 kg with package, 0.655 kg without package |
| Operating Temperature | –25 ~ 70ºC |
| Storage Temperature | –40 ~ 85ºC |
| Operation Humidity | 0% ~ 95%, (non-condensing) |
| Installation | Din-rail mounting |
