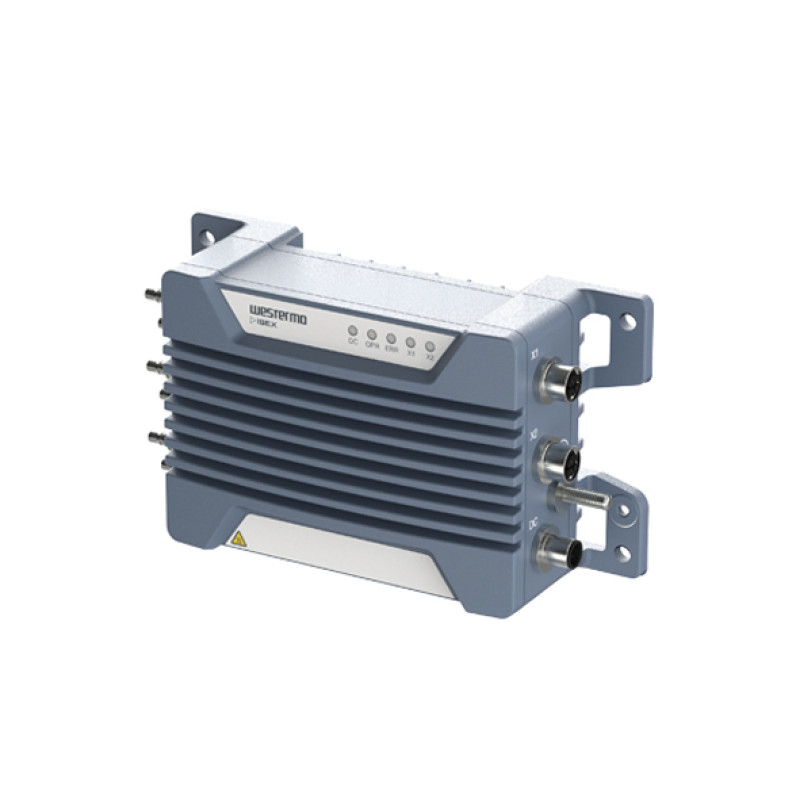

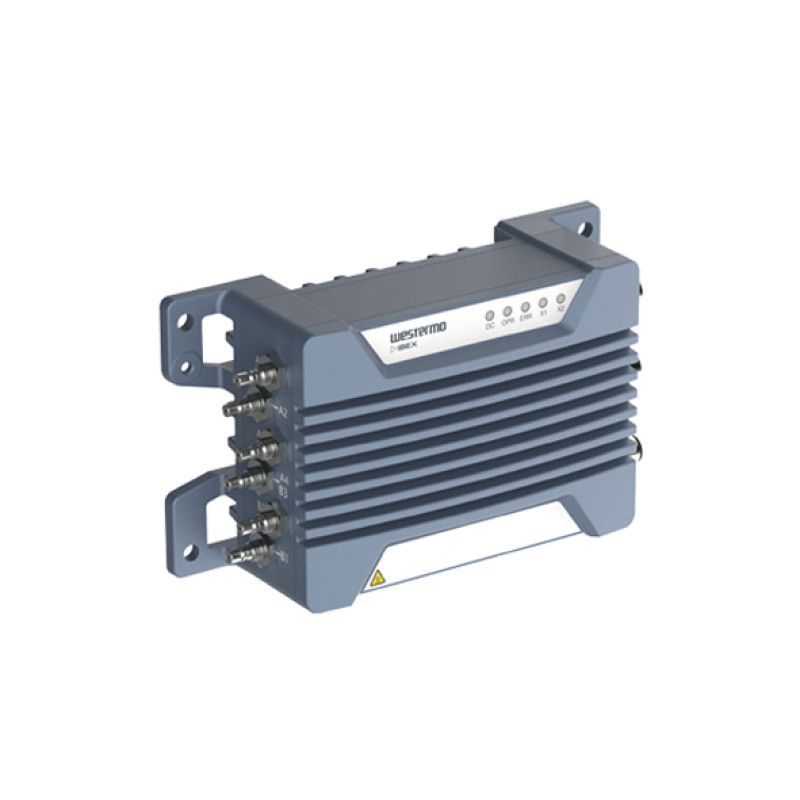

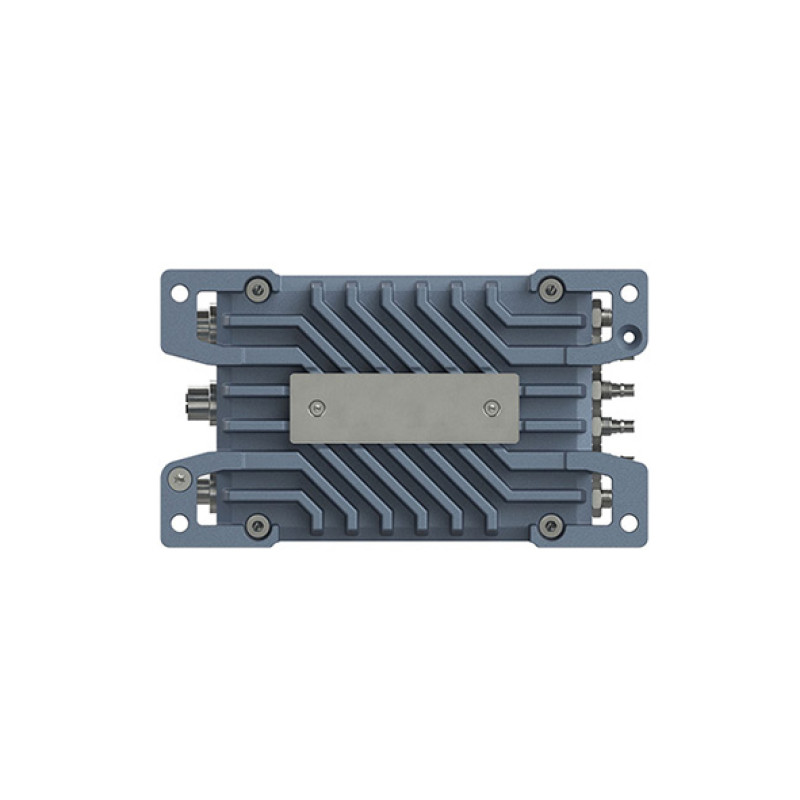

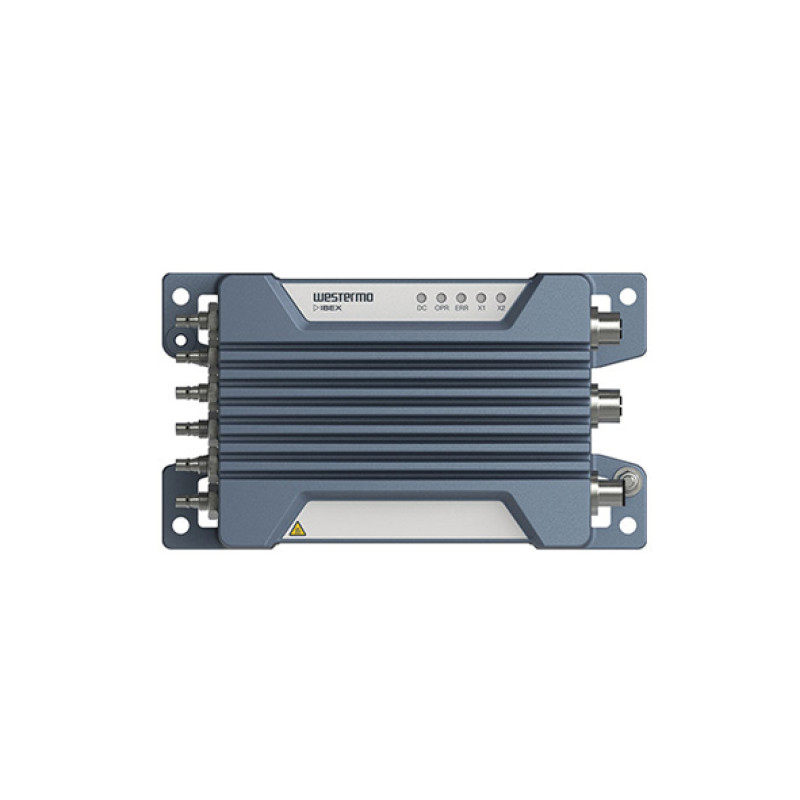

Westermo Ibex-RT-610-LV NA WLAN Dual Radio Access Point

  • Supports North America Frequency Bands
  • IEEE802.11ac Wave2 support for maximum capacity
  • 2 x 10/100/1000 Base-T Ethernet ports (M12 connector)
  • 24 VDC isolated or IEEE 802.3 at type 1 powered device
  • IP66-rated Metal body material
  • Screw mount installation design
  • -40 to +70°C operating temperature range

Description

The Ibex-RT-610 consists of concurrent dual-band 802.11ac Wave2 Wireless LAN Access Points for on-board and stationary applications. They ensure reliable, high-speed data, airtime fairness, band steering, and client steering, and can be used as passenger hotspots or as access points for connecting wireless industrial clients. The Ibex-RT-610 is designed to withstand the tough environment on-board trains, exposing the switch to constant vibration, extreme temperatures, humidity, and a demanding electromagnetic environment.

A GORE-TEX® membrane prevents internal condensation. High-level isolation between all interfaces enables direct connectivity to vehicle auxiliary power and protects against overvoltage and spikes/surge. IP66 protection prevents ingress of water and dust even at the quick connect QMA connectors.

An overall optimized design results in a compact form factor in combination with very high MTBF for easy integration in space-restricted installations and low lifecycle cost. Thorough type testing at independent labs certifies compliance to a wide range of standards, not least EN 50155 and FCC. Meeting the requirements of the railcar market, the Ibex-RT-610 is very well suited for deployment in any other application with severe operating conditions and tough environments, for instance in the mining or shipping industry.



You can also find the Ibex-RT-610-LV EU, Ibex-RT-610-HV EU, and Ibex-RT-610-HV NA models in the WLAN.



Easy World Automation offers the easiest way to buy the Westermo Ibex-RT-610-LV NA WLAN Dual Radio Access Point in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

Specification

Interfaces
10/100/1000BaseT(X) Ports : 2 x 10/100/1000 Base-T, 2 x M12 X-coded connectors
Modulation Type -
Frequency Band 2.400 to 2.4835 GHz (2x2 MU-MIMO), 5.150 to 5.350 GHz, 5.470 to 5.725 GHz, 5.725 to 5.875 GHz (2x2 MU-MIMO)
PoE Ports
100BaseFX Ports
Wireless Security WPA2-Personal (CCMP), WPA2-Enterprise, WPA3-Personal (SAE/OWE), WPA3-Enterprise (Suite-B), 802.11w, 802.1X, SecureBoot (TPM), Security Log (persistent)
WLAN Antenna Connector 4 x QMA compatible antenna connectors, 4x4 MU-MIMO for 5GHz, 2 x QMA compatible antenna connectors, 2x2 MIMO for 2.4GHz
Security SSL VPN (Client and Server), Certificate Authentication, Pre-shared Key (PSK), Point-to-Point Mode, Layer-2 and Layer-3 VPN, Layer-2 VPN bridging, Generic Routing Encapsulation (GRE)
WLAN Operation Mode Access Point, Client, Bridge
WLAN Standards IEEE802.11g, 802.11a, 802.11n, 802.11ac
1000BaseSFP Slots
Transmission Rates 802.11a/g: 6Mbit/s, 9, 12, 18, 24, 36, 48 and 54 Mbit/s, 802.11n 20 MHz BW, LGI/SGI: from MCS0 6.5/7.2 Mbit/s to MCS23 195/216.7 Mbit/s, 802.11n 40 MHz BW, LGI/SGI: from MCS0 13.5/15 Mbit/s to MCS23 405/450 Mbit/s, 802.11ac 20 MHz BW, LGI/SGI: from VHT0 6.5/7.2 Mbit/s to VHT9 312/346.7 Mbit/s, 802.11ac 40 MHz BW, LGI/SGI: from VHT0 13.5/15 Mbit/s to VHT9 720/800 Mbit/s, 802.11ac 80 MHz BW, LGI/SGI: from VHT0 29.3/32.5 Mbit/s to VHT9 1560/1733.3 Mbit/s, 802.11ac 160 MHz BW, LGI/SGI: from VHT0 58.5/65 Mbit/s to VHT9 1560/1733.3 Mbit/s (2SS)
10/100BaseT(X) Ports
Digital Inputs
Console Port
Serial Ports
M12 Connector
Power Requirement
Input Current 0.6 A
Connector M12 A-coded male
Input Voltage 24 VDC isolated, 0.6 A max. or IEEE 802.3 at type 1 powered device
Power Consumption -
Reverse Polarity Protection Supported
Physical Characteristics
Humidity 5-95% relative humidity
Dimensions Packaged 195.4 x 67 x 111.4 mm (7.69 x 2.64 x 4.39 inches)
Weight (PACKAGED) 1.45 kg without antennas
Housing Full metal
Installation Screw mounting
Standards and Certifications Ingress protection: IP66; IEC 62380; Climate: EN 50155, class OT4 Railway applications - Electronic equipment used on rolling stock, EN 50125-3, Railway applications – Environmental conditions for equipment, Part 3: Equipment for signalling and telecommunications; EMC: EN 50155, Railway applications - Electronic equipment used on rolling stock, EBA EMV 06, German Federal Railway Authority, Radio compatibility of rail vehicles, EN 50121-3-2, Railway applications – Electromagnetic compatibility, Part 3-2: Rolling stock – Apparatus, EN 50121-4, Railway applications - Electromagnetic compatibility. Part 4: Emission and immunity of the signalling and telecommunications apparatus, ETSI EN 301 489-1, Electromagnetic compatibility (EMC) and Radio spectrum Matters (ERM) for radio equipment and services - Part 1: Common technical requirements, ETSI EN 301 489-17, Electromagnetic compatibility (EMC) and Radio spectrum Matters (ERM) for radio equipment - Part 17: Specific conditions for Broadband Data Transmission Systems, ECE E-Mark, Road Vehicles, E13 10R-06 15771, EMV06, Technical Rules for Electromagnetic compatibility; Mechanical (Shock and vibration): EN 61373, category 1, class A and B, EN 50125-3, Outside the track; Insulation (Coordination and test): EN 50124-1, Railway applications – Insulation coordination, EN 50155, Railway applications - Electronic equipment used on rolling stock; Radio communication: ETSI EN 300 328, Wideband transmission systems; Data transmission equipment operating in the 2.4 GHz ISM band and using wide band modulation techniques, ETSI EN 301 893, 5 GHz RLAN, IEEE802.11, Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications, FCC-47-15, Radio frequency devices; Safety: EN/IEC 62368-1, Safety Requirements for audio/video, information and communication technology equipment, EN 45545-2, Fire protection on railway vehicles, NFPA 130, Fire protection for fixed guideway transit and passenger rail system; Shock: IEC 60068-2-27, IEC 61373, MIL-STD-810G; Vibration: IEC 60068-2-64, IEC 61373, MIL-STD-810G
Operating Temperature -40 to +70°C (-40 to +158°F)
Storage Temperature -55 to +85°C (-67 to +185°F)
General
Management SNMP v2c/v3 with USM authentication and encryption support, HTTP/HTTPS web interface and WebAPI with user authentication (local or LDAP), CLI (SSH and Telnet), Certificate Management (SCEP)
LED Indicators : DC, OPR, ERR, X1, X2
MTBF 420,000 hours (IEC 62380)
Time Management -
