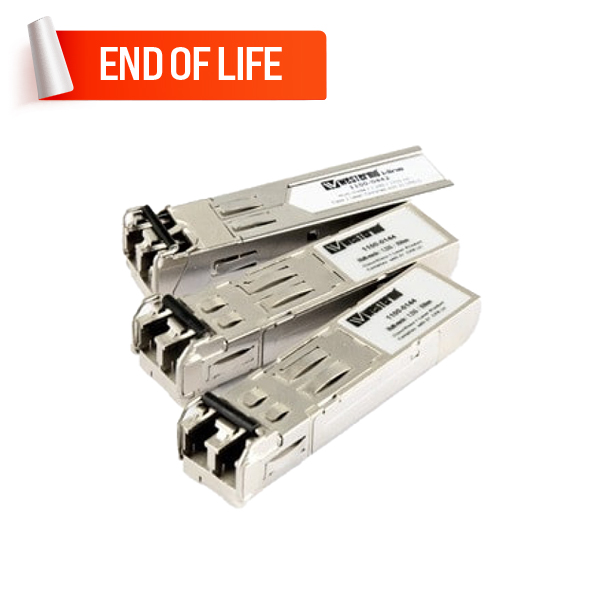

Westermo MLC2-BiDi-B SFP Module
- 1 100Mb multimode fiber optic port
- Suitable for transfer 2Km
- Two-way transferability
- 1550/1310 TX/RX
wavelength
(nm)
- Brand: WESTERMO
- Product Code: MLC2-BiDi-B
Description
The Westermo range of Small Form-factor Pluggable (SFP) transceivers covers versions suitable for 10/100 Mbit/s applications. LC connectors are used as standard due to their small size.
These transceivers have been verified to meet the Westermo environmental specification and can operate in a range of different Westermo products in harsh industrial applications. The transceivers are coded to allow confirmation that certified versions have been installed. Versions are available with different wave lengths including 1550 nm for extreme distances up to 120 km (74.5 mi) and 1310 nm versions for both single (9/125) and multimode cables (50/125 and 62.5/125). In applications where only a single fibre core is available a Bi-Directional (BiDi) transceiver can be used.
Inquire about the Westermo MLC2-BiDi-B SFP Module, designed for
industrial automation solutions. Feel free to get in touch with our sales team
to give you the best solutions at the best global price in the Middle East (UAE
(Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| 100Mb Fiber optic ports | : 1 multi mode Port |
| 10Gb Fiber Optic Ports | |
| Fiber Optic Specifications | |
| Minimum output power converter | - |
| Sensitivity to receiving information | - |
| Wavelength | 1550nm/1310nm |
| Maximum data transmission distance | 2Km |
| Multi-Plex technology Support (WDM) | |
| The two-way transmission (BiDi) | |
| Digital Diagnostics Monitoring (DDM) | |
| General | |
| Require cable diameter | 50/125μm ,62.5/125μm |
| Compatible devices | Westermo equipment |
| Physical Characteristics | |
| Standards and Certifications | - |
| Operating Temperature | -40 to 85 ° C |
| Storage Temperature | - |
