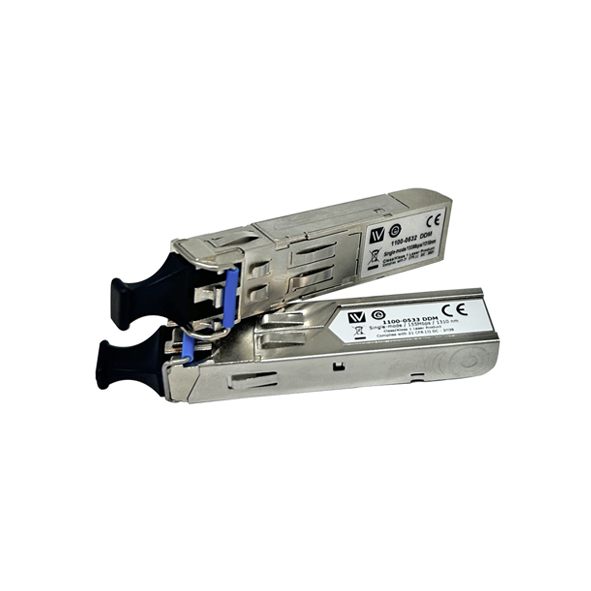

Westermo SLC40-DDM SFP Module

Westermo SLC40-DDM SFP Module
Westermo SLC40-DDM SFP Module
Westermo SLC40-DDM SFP Module
Westermo SLC40-DDM SFP Module
Westermo SLC40-DDM SFP Module
  • 1 x 100 Mbit/s SFP port (Singlemode, Duplex LC connector)
  • 40 KM Typical data transmission distance on fiber
  • Diagnostics: ±3°C Temperature at ± 0.1 VDC Voltage
  • Maximum transmit wavelength: 1310 nm
  • Wide operating temperature range, -40 to +85°C
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 85°C)
  • Relative Humidity (5% to 95% RH)
  • Railway Transportation
  • Marine
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 base protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 base protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Accessories , SFP Transceivers , Singlemode SFP Transceivers , Industrial Network Accessories , Railway Transportation Products , Marine Products , SFP Modules , Modules , Westermo 100 Mbit/s Singlemode SFP Transceivers

Westermo's 100 Mbit/s singlemode SFPs are suitable for short- and long-range applications. The available models can use singlemode fibre cables with a core of 9 μm. Using the DDM functionality, which is fully integrated into WeOS, it is possible to monitor parameters such as temperature, TX/RX power, and voltage, ensuring correct operation.

As industrial networks transmit more data, 100 Mbit/s fiber links can be used to connect data-intensive sites across long distances. Setting up network backbones over extended ranges is now possible. The SFPs are tested with the WeOS platform and are offered in multiple variants, with indicative ranges from 20 to 120 km.

All Westermo’s SFP transceivers are thoroughly tested to meet high demands. Each model has gone through rigorous environmental testing, to ensure that it can perform according to specification even in the harshest environments. Furthermore, functionality is validated and pushed to the limit, securing availability and reliability in mission critical applications.



You can also find the SLC20-DDM, SLC80-DDM, and SLC120-DDM models in the SFP Transceivers.


You can explore our wide range of products and enquire about the Westermo SLC40-DDM SFP Module for your industrial automation needs. Our sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the Middle East.

MODULES : INTERFACE
Ports 1 x 100 Mbit/s SFP port (Singlemode)
Connector Duplex LC connector
Typical Distance 40 KM
MODULES : POWER REQUIREMENTS
Power Information -
MODULES : PHYSICAL CHARACTERISTICS
Dimensions Dimensions device: 14 x 13 x 57 mm (0.55 x 0.51 x 2.24 inches); Dimensions protrosion: 14 x 13 x 9 mm (0.55 x 0.51 x 0.35 inches)
Weight -
Operating Temperature -40 to +85°C (-40 to +185°F)
Storage Temperature -40 to +85°C (-40 to +185°F)
Ambient Relative Humidity 5-95% relative humidity
Standards and Certifications EMC: EN 50121-4/IEC 62236-4, Railway signalling and telecommunications apparatus; Safety: EN/IEC 60825-1, Laser products - part 1: Equipment classification and requirement, EN/IEC 60825-2, Laser products - part 2: Safety of optical fibre communication systems, EN/IEC/UL 62368-1, Audio/video, information and communication technology equipment
MTBF -
