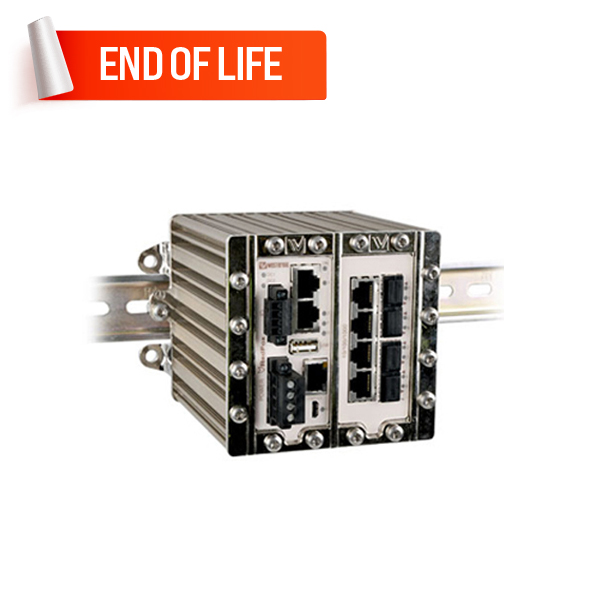

Westermo RFI-111-F4G-T7G Managed Ethernet Switch

Westermo RFI-111-F4G-T7G Managed Ethernet Switch
Westermo RFI-111-F4G-T7G Managed Ethernet Switch
Westermo RFI-111-F4G-T7G Managed Ethernet Switch
Westermo RFI-111-F4G-T7G Managed Ethernet Switch
Westermo RFI-111-F4G-T7G Managed Ethernet Switch

  • Layer 2 functionality switching
  • 7 x 10/100/1000 Mbit/s TX Ports (RJ45)
  • 4 x 100/1000 Mbit/s Ethernet FX or TX SFP ports
  • 16 to 60 VDC operating voltage range
  • Ultra-robust IP40 aluminum housing
  • -40 to +70°C operating temperature range

0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 70°C)
  • IP protection (IP40)
  • Railway Transportation
  • Marine
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 base protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 base protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Ethernet Switches , Industrial Data Communications , Managed Layer 2 Switches , Layer 2 Switches , Marine Products , Railway Transportation Products , Managed Ethernet Switches , Ethernet Switches , Managed Switches , Switches , Westermo RFI-111-F4G-T7G

RedFox is a high-performance layer 2 industrial Ethernet switch designed for high network traffic applications. It is powered by WeOS, the Westermo operating system. Various port configurations are available that can be further customized with SFP transceivers. The RedFox is designed for use in heavy-duty industrial applications in its robust aluminium housing. Its wide power range and I/O fault contact make it ideal for easy installation and monitoring in industrial applications.

Only industrial-grade components are used, which gives RedFox an MTBF of 336,000 hours and ensures a long service life. With no moving parts or cooling holes in the case, a wide operating temperature range –40 to +70°C (–40 to +158°F) can be achieved. RedFox has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications.



You can also find the Lynx 5512-E-F4G-T8G-LV and Lynx 5512-F4G-T8G-LV models in the Managed Ethernet Switches.


Experience the convenient way to purchase the Westermo RFI-111-F4G-T7G Managed Ethernet Switch in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.

switch and hub : Interface
Number of ports 11 Ports
10/100Mb RJ45 (Megabit) Ports No
10/100/1000Mb RJ45 (Gigabit) Ports Yes : 7 Ports
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 4 x 100/1000 Mbit/s Ethernet FX or TX SFP Ports (pluggable connections transceivers supported), 1 x Console Port (USB Micro-B connector), 1 x USB Port (USB 2.0 host interface), 1 x 4-ports Digital I/O ( detachable screw terminal)
switch and hub : Features and capabilities
Backup No
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current 0.87 (1.06) A @ 20 VDC, 0.35 (0.43) A @ 48 VDC
Power Input Plugin ( Redundant ) No
Input Voltage -
Operating Voltage 16 to 60 VDC
Power Consumption -
switch and hub : General
Fan / Fanless Fanless
MTBF 336,000 hours
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation No
switch and hub : Physical Characteristics
Dimensions 134 x 100 x 122 mm (5.25 x 3.93 x 4.80 in)
Housing Aluminium
Installation -
Operating Temperature –40 to +70°C (–40 to +158°F), Maximum surface temperature: 135ºC (275ºF) (temperature class T4)
Operation Humidity -
Standards and Certifications MIL-HDBK-217K; IP40; EMC: EN 50121-4, Railway applications – Electromagnetic compatibility – Emission and immunity of the signalling and telecommunications apparatus, EN 61000-6-1, Electromagnetic compatibility – Immunity for residential, commercial and light-industrial environments, EN 61000-6-2, Electromagnetic compatibility – Immunity for industrial environments, EN 61000-6-3, Electromagnetic compatibility – Emission standards for residential, commercial and light industrial environments, EN 61000-6-4, Electromagnetic compatibility – Emission standard for industrial environments; Safety: UL/IEC/EN 60950-1, IT equipment; Marine: DNV GL rules for classification – Ships and offshore units
Storage Temperature –50 to +85°C (–58 to +185°F)
Weight 1.5 kg
switch and hub : Standards and protocols
Protocols and work standards -
Protocols and management standards -
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
