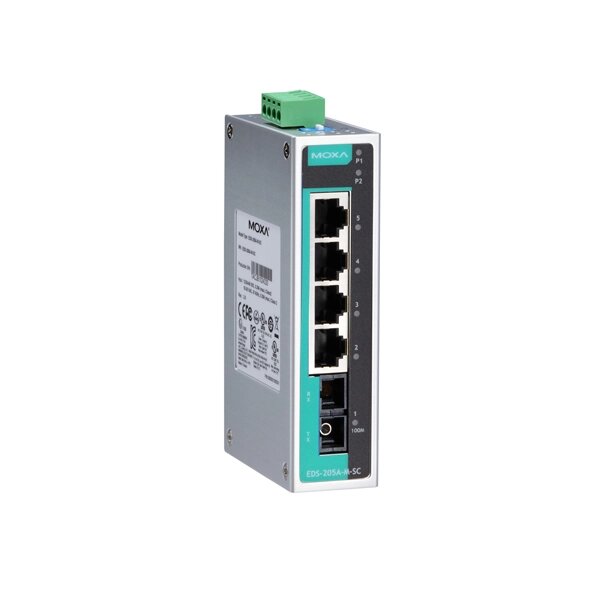

MOXA EDS-205A-M-SC-T Unmanaged Ethernet Switches

MOXA EDS-205A-M-SC-T Unmanaged Ethernet Switches
MOXA EDS-205A-M-SC-T Unmanaged Ethernet Switches
MOXA EDS-205A-M-SC-T Unmanaged Ethernet Switches
MOXA EDS-205A-M-SC-T Unmanaged Ethernet Switches
MOXA EDS-205A-M-SC-T Unmanaged Ethernet Switches
  • 4 x 10/100Mbps T(x) ports
  • 1 x 100BaseFX port (Multi-mode SC)
  • IEEE802.3/802.3u/802.3x support
  • 5 KM Data transmission typical distance on fiber
  • DIN-rail and Wall mounting
  • IP30-rated aluminum housing
  • 12 to 48 VDC Redundant dual power inputs
  • -40 to 75°C operating temperature
  • Brand: MOXA
  • Model: EDS-205A-M-SC-T
0 reviews • Write a review
Datasheet User Guide
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6)
  • Operating Temperature (-40 to 75°C)
  • IP protection (IP30)
  • Freefall (IEC 60068-2-31)
  • Hazardous Location (Class 1 Division 2, ATEX, IECEx)
  • Oil & Gas
  • Factory Automation
  • Marine
  • Railway Transportation
  • Road Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 base protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 base protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Industrial Data Communications , Ethernet Switches , Unmanaged Switches , Unmanaged Ethernet Switches , Industrial Ethernet Switches , DIN-Rail Ethernet Switches , Factory Automation Products , Railway Transportation Products , Road Transportation Products , Marine Products , Oil & Gas Products , Switches , MOXA EDS-205A Series

The EDS-205A Series 5-port industrial Ethernet switches support IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X autosensing. The EDS-205A Series has 12/24/48 VDC (9.6 to 60 VDC) redundant power inputs that can be connected simultaneously to live DC power sources. These switches have been designed for harsh industrial environments, such as in maritime (DNV/GL/LR/ABS/NK), rail wayside, highway, or mobile applications (EN 50121-4/NEMA TS2/e-Mark), or hazardous locations (Class I Div. 2, ATEX Zone 2) that comply with FCC, UL, and CE standards.

The EDS-205A switches are available with a standard operating temperature range from -10 to 60°C or with a wide operating temperature range from -40 to 75°C. All models are subjected to a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. In addition, the EDS-205A switches have DIP switches for enabling or disabling broadcast storm protection, providing another level of flexibility for industrial applications.


You can also find the EDS-205A, EDS-205A-M-SC, EDS-205A-S-SC, and EDS-205A-T models in the DIN-Rail Ethernet Switches.


Enjoy the ease of online inquiries for the MOXA EDS-205A-M-SC-T Unmanaged Ethernet Switches. You can submit your inquiry on our website and get the most friendly communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

switch and hub : Interface
Number of ports 5 Ports
10/100Mb RJ45 (Megabit) Ports Yes : 4 Ports
10/100/1000Mb RJ45 (Gigabit) Ports No
100Mb Fiber optic multi mode (Megabit) Ports Yes : 1 Port (SC connector)
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports No
switch and hub : Features and capabilities
Backup No
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current 0.1 A @ 24 VDC
Power Input Plugin ( Redundant ) Yes
Input Voltage 12/24/48 VDC
Operating Voltage 9.6 to 60 VDC
Power Consumption -
switch and hub : General
Fan / Fanless Fanless
MTBF 3,045,679 hrs
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 1
Switch type Unmanaged
Port Aggregation No
switch and hub : Physical Characteristics
Dimensions 30 x 115 x 70 mm (1.18 x 4.52 x 2.76 in)
Housing Aluminium
Installation DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature -40 to 75°C (-40 to 167°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Hazardous Locations: IECEx, ATEX Class I Division 2; Maritime: ABS, LR, NK, DNV; Railway: EN 50121-4; Safety: UL 508; Shock: IEC 60068-2-27; Traffic Control: NEMA TS2; Vibration: IEC 60068-2-6; Freefall: IEC 60068-2-31; IP30; Telcordia (Bellcore), GB
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 175 g (0.39 lb)
switch and hub : Standards and protocols
Protocols and work standards -
Protocols and management standards -
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
