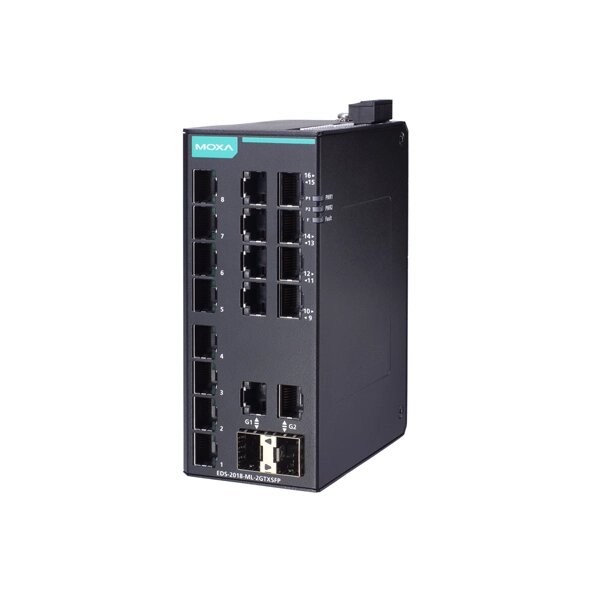

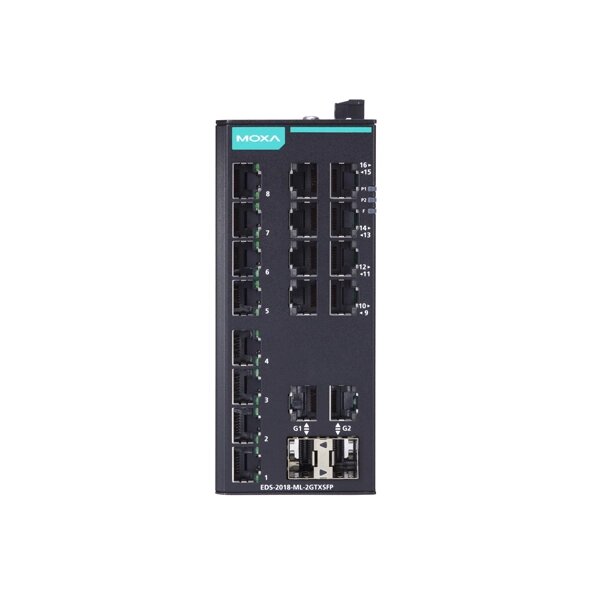

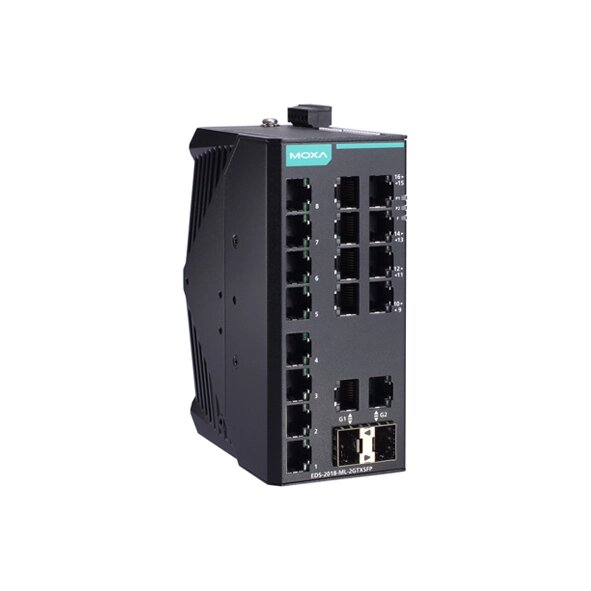

MOXA EDS-2018-ML-2GTXSFP Unmanaged Ethernet Switches

MOXA EDS-2018-ML-2GTXSFP Unmanaged Ethernet Switches
MOXA EDS-2018-ML-2GTXSFP Unmanaged Ethernet Switches
MOXA EDS-2018-ML-2GTXSFP Unmanaged Ethernet Switches
MOXA EDS-2018-ML-2GTXSFP Unmanaged Ethernet Switches
MOXA EDS-2018-ML-2GTXSFP Unmanaged Ethernet Switches
MOXA EDS-2018-ML-2GTXSFP Unmanaged Ethernet Switches
MOXA EDS-2018-ML-2GTXSFP Unmanaged Ethernet Switches

  • 16 x 10/100BaseT(X) Ports (RJ45 connector)
  • 2 x Combo Ports (10/100/1000BaseT(X) or 100/ 1000BaseSFP+)
  • DIN-rail and Wall mounting
  • IP30-rated metal housing
  • Redundant dual 12/24/48 VDC power inputs
  • -10 to 60°C operating temperature

  • Brand: MOXA
  • Model: EDS-2018-ML-2GTXSFP
0 reviews • Write a review
Datasheet
  • Operating Temperature (-10 to 60°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6)
  • Freefall (IEC 60068-2-32)
  • IP protection (IP30)
  • Hazardous Location (Class 1 Division 2, ATEX, IECEx)
  • Oil & Gas
  • Marine
  • Railway Transportation
  • Road Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 base protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 base protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Industrial Data Communications , Ethernet Switches , Unmanaged Switches , Unmanaged Ethernet Switches , Industrial Ethernet Switches , DIN-Rail Ethernet Switches , Railway Transportation Products , Road Transportation Products , Marine Products , Oil & Gas Products , Switches , MOXA EDS-2018-ML Series

The EDS-2018-ML series of industrial Ethernet switches have sixteen 10/100M copper ports and two 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, which are ideal for applications that require high-bandwidth data convergence. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2018-ML Series also allows users to enable or disable the Quality of Service (QoS) function, broadcast storm protection, and port break alarm function with DIP switches on the outer panel.

The EDS-2018-ML Series has 12/24/48 VDC redundant power inputs, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size, the EDS-2018-ML Series has passed a 100% burn-in test to ensure it will function reliably in the field. The EDS-2018-ML Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.


You can also find the EDS-2018-ML-2GTXSFP-T model in the DIN-Rail Ethernet Switches.


Experience the convenient way to purchase the MOXA EDS-2018-ML-2GTXSFP Unmanaged Ethernet Switches in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.

switch and hub : Interface
Number of ports 18 Ports
10/100Mb RJ45 (Megabit) Ports Yes : 16 Ports
10/100/1000Mb RJ45 (Gigabit) Ports No
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 2 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+), 1 x Alarm Contact Channel
switch and hub : Features and capabilities
Backup No
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current 0.277 A @ 24 VDC
Power Input Plugin ( Redundant ) Yes
Input Voltage 12/24/48 VDC
Operating Voltage 9.6 to 60 VDC
Power Consumption -
switch and hub : General
Fan / Fanless Fanless
MTBF 1,776,132 hrs
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 1
Switch type Unmanaged
Port Aggregation Yes
switch and hub : Physical Characteristics
Dimensions 58 x 135 x 95 mm (2.28 x 5.31 x 3.74 in)
Housing Metal
Installation DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature -10 to 60°C (14 to 140°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications Safety: UL 61010-2-201, EN 62368-1(LVD); EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Hazardous Locations: Class I Division 2, IECEx, ATEX; Maritime: DNV, LR, ABS, NK;; Railway: EN 50121-4; Traffic Control: NEMA TS2; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; IP30; Telcordia (Bellcore), GB
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 683 g (1.51 lb)
switch and hub : Standards and protocols
Protocols and work standards -
Protocols and management standards -
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
